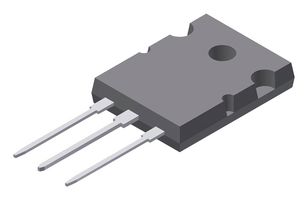

IXFB150N65X2 Series

DiscMSFT NChUltraJnctn X2Class TO-264(3)

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

DiscMSFT NChUltraJnctn X2Class TO-264(3)

Part	Mounting Type	Drain to Source Voltage (Vdss)	FET Type	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Package / Case	Vgs (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs [Max]	Technology	Vgs(th) (Max) @ Id	Power Dissipation (Max) [Max]	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds
Littelfuse/Commercial Vehicle Products IXFB150N65X2	Through Hole	650 V	N-Channel	150 A	17 mOhm	TO-264-3 TO-264AA	30 V	-55 °C	150 °C	PLUS264™	430 nC	MOSFET (Metal Oxide)	5.5 V	1560 W	10 V	20400 pF

Catalog

DiscMSFT NChUltraJnctn X2Class TO-264(3)

Key Features

• Ultra low on-resistance RDS(ON) and gate charge Qg

• Fast body diode

• dv/dt ruggedness

• Avalanche rated

• Low package inductance

• International standard packages

Description

Developed using the charge compensation principle and proprietary process technology, these new devices exhibit the lowest on-state resistances, along with low gate charges and superior dv/dt performance. Their avalanche capability also enhances the device ruggedness. In addition, thanks to the fast soft-recovery body diode, the Ultra-Junction MOSFETs help reduce switching losses and electromagnetic interference (EMI). Advantages: Higher efficiency High power density Easy to mount Space savings
