1010393 Series
Manufacturer: Integrated Power Designs
Beta
⌘K

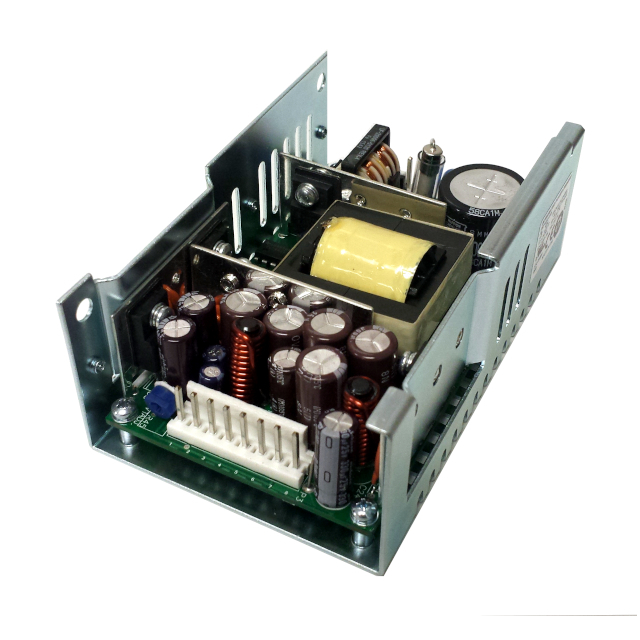

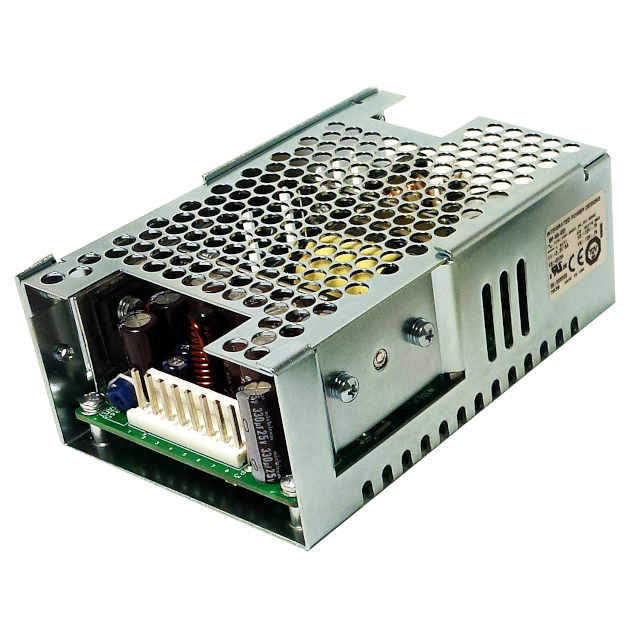

AC/DC CONVERTER 5V 40W
| Part | Features | Operating Temperature [Max] | Operating Temperature [Min] | Type | Current - Output 1 | Standard Number | Voltage - Output 1 | Approval Agency | Applications | Mounting Type | Power (Watts) | Efficiency | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | Adjustable Output Universal Input | 70 °C | 0 °C | Chassis | 8 A | 60601-1; 62368-1 | 5 V | CE cURus TUV UKCA | Industrial ITE (Commercial) Medical | Chassis Mount | 40 W | 73 % | 1 | 71.4 mm | 1.7 " | 113 mm | 43.2 mm | 2.81 in | 4.45 in | 100 VAC | 240 VAC |
 Integrated Power Designs | Adjustable Output Universal Input | 70 °C | 0 °C | Enclosed | 8 A | 60601-1; 62368-1 | 5 V | CE cURus TUV UKCA | Industrial ITE (Commercial) Medical | Chassis Mount | 40 W | 73 % | 1 | 71.4 mm | 1.7 " | 113 mm | 43.2 mm | 2.81 in | 4.45 in | 100 VAC | 240 VAC |
