PJD4NA65 Series
Manufacturer: Panjit International Inc.
Beta
⌘K
650V N-CHANNEL MOSFET
| Part | Supplier Device Package | Drain to Source Voltage (Vdss) | Operating Temperature [Max] | Operating Temperature [Min] | Gate Charge (Qg) (Max) @ Vgs | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Technology | Input Capacitance (Ciss) (Max) @ Vds | Mounting Type | Package / Case | Drive Voltage (Max Rds On, Min Rds On) | Current - Continuous Drain (Id) @ 25°C | Power Dissipation (Max) | Vgs (Max) | FET Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

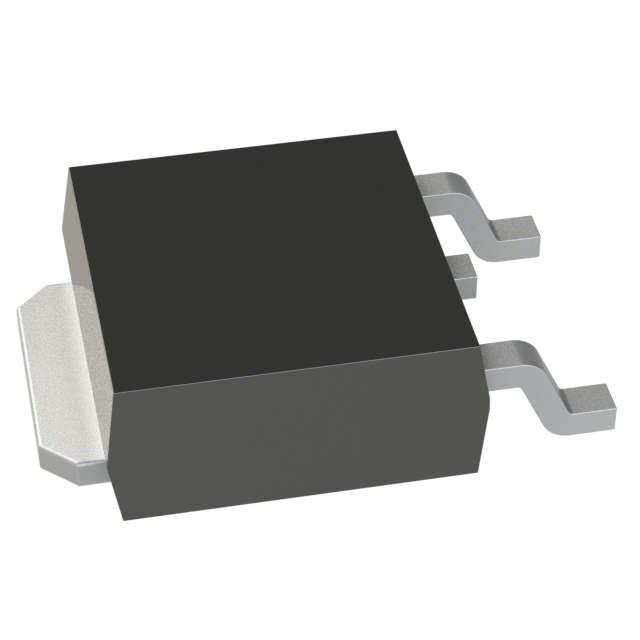

 Panjit International Inc. | TO-252 TO-252AA | 650 V | 150 °C | -55 °C | 11.4 nC | 2.7 Ohm | 4 V | MOSFET (Metal Oxide) | 463 pF | Surface Mount | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 10 V | 4 A | 77 W | 30 V | N-Channel |
 Panjit International Inc. | TO-252AA | 650 V | 150 °C | -55 °C | 11.4 nC | 2.7 Ohm | 4 V | MOSFET (Metal Oxide) | 463 pF | Surface Mount | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 10 V | 4 A | 30 V | N-Channel |
