DF12C(3.0) Series

Catalog

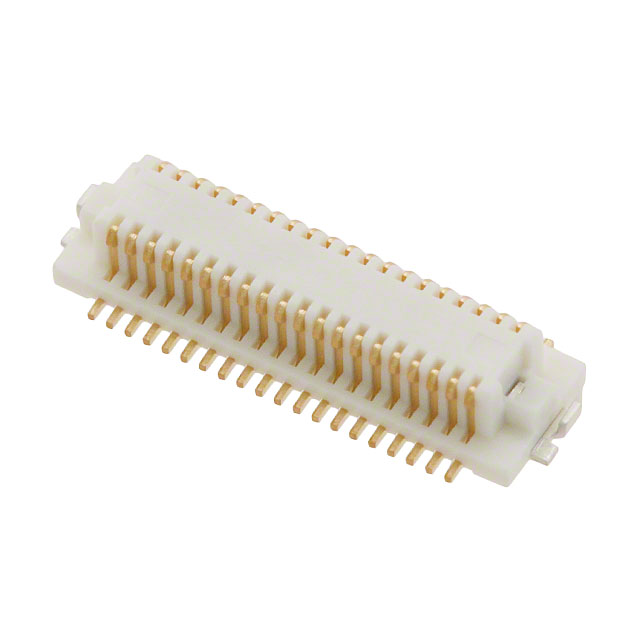

CONN RCPT 20POS SMD GOLD

Part	Height Above Board [z]	Height Above Board [z]	Connector Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Mated Stacking Heights	Number of Rows [custom]	Pitch	Pitch	Number of Positions
Hirose Electric Co Ltd DF12C(3.0)-20DS-0.5V(81)	2.2 mm	0.087 in	Receptacle Center Strip Contacts	Surface Mount	0.203 çm	8 µin	Gold	3 mm	2	0.02 "	0.5 mm	20
Hirose Electric Co Ltd DF12C(3.0)-40DS-0.5V(81)	2.2 mm	0.087 in	Receptacle Center Strip Contacts	Surface Mount	0.203 çm	8 µin	Gold	3 mm	2	0.02 "	0.5 mm	40
Hirose Electric Co Ltd DF12C(3.0)-50DS-0.5V(65)	2.2 mm	0.087 in	Receptacle Center Strip Contacts	Surface Mount			Gold	3 mm	2	0.02 "	0.5 mm	50
Hirose Electric Co Ltd DF12C(3.0)-60DS-0.5V(81)	2.2 mm	0.087 in	Receptacle Center Strip Contacts	Surface Mount	0.203 çm	8 µin	Gold	3 mm	2	0.02 "	0.5 mm	60
Hirose Electric Co Ltd DF12C(3.0)-36DS-0.5V(81)	2.2 mm	0.087 in	Receptacle Center Strip Contacts	Surface Mount	0.203 çm	8 µin	Gold	3 mm	2	0.02 "	0.5 mm	36
Hirose Electric Co Ltd DF12C(3.0)-32DS-0.5V(81)	2.2 mm	0.087 in	Receptacle Center Strip Contacts	Surface Mount	0.203 çm	8 µin	Gold	3 mm	2	0.02 "	0.5 mm
