HMC519-Die Series

GaAs pHEMT MMIC Low Noise Amplifier Chip, 18 - 32 GHz

Catalog

GaAs pHEMT MMIC Low Noise Amplifier Chip, 18 - 32 GHz

Part	Voltage - Supply	RF Type	Test Frequency [Max]	Test Frequency [Min]	Gain	P1dB	Noise Figure	Package / Case	Supplier Device Package	Current - Supply	Frequency [Min]	Frequency [Max]	Mounting Type	Type	Supplied Contents	For Use With/Related Products
Analog Devices HMC519-SX	3 V	DBS VSAT	32 GHz	28 GHz	14 dBi	14 dBm	3.5 dB	Die	Die	65 mA	18 GHz	32 GHz	Surface Mount
Analog Devices HMC519LC4TR	3 V	VSAT	28 GHz	18 GHz	14.4 dBd	12.2 dBm	3.5 dB	24-TFCQFN Exposed Pad	24-CQFN (4x4)	75 mA	18 GHz	31 GHz	Surface Mount
Analog Devices HMC519	3 V	VSAT	32 GHz	28 GHz	15 dB	14 dBm	3.5 dB	Die	Die	65 mA	18 GHz	32 GHz	Surface Mount

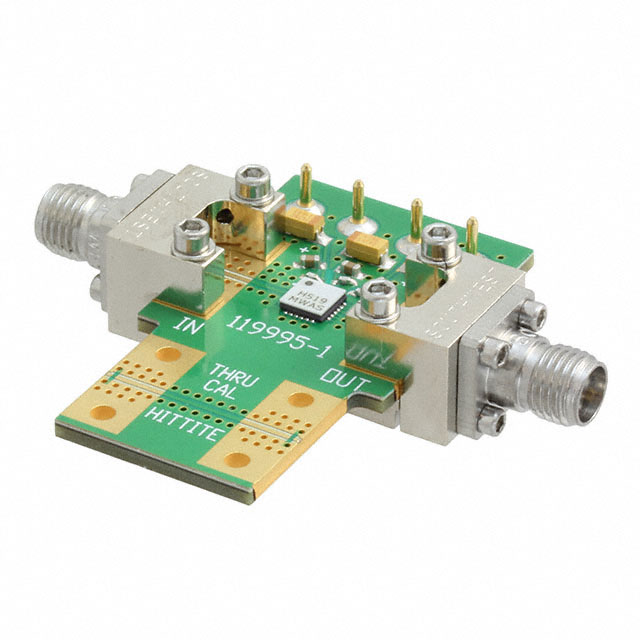

Analog Devices 119667-HMC519LC4											18 GHz	31 GHz		Amplifier	Board(s)	HMC519LC4
Analog Devices HMC519LC4TR-R5	3 V	VSAT			14.4 dBd	12.2 dBm	3.5 dB	24-TFCQFN Exposed Pad	24-CQFN (4x4)	75 mA	18 GHz	31 GHz	Surface Mount

Catalog

GaAs pHEMT MMIC Low Noise Amplifier Chip, 18 - 32 GHz

Key Features

• Noise Figure: 3.5 dB

• Gain: 14 dB

• Output IP3: +23 dBm

• Single Supply: +3V @ 75 mA

• 50 Ohm Matched Input/Output

• 24 Lead Ceramic 4x4mm SMT Package: 16mm2

Description

The HMC519LC4 is a high dynamic range GaAs pHEMT MMIC Low Noise Amplifier (LNA) housed in a leadless 4 x 4 mm ceramic surface mount package. The amplifier operates between 18 and 31 GHz, providing 14 dB of small signal gain, 3.5 dB noise figure and output IP3 of +23 dBm, while requiring only 75 mA from a +3V single supply. The P1dB output power of +11 dBm, enables the LNA to function as a LO driver for balanced, I/Q or image reject mixers. The HMC519LC4 also features I/Os that are DC blocked and internally matched to 50 Ohms, making it ideal for microwave radio and VSAT applications.ApplicationsPoint-to-Point RadiosPoint-to-Multi-Point Radios & VSATTest Equipment & SensorsMilitary & Space
