BAS69 Series

Catalog

DIODE SCHOTTKY 15V 10MA SOD523

Part	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If [Max]	Speed	Speed	Supplier Device Package	Current - Average Rectified (Io)	Package / Case	Technology	Capacitance @ Vr, F	Mounting Type	Operating Temperature - Junction [Max]	Current - Average Rectified (Io) (per Diode)	Diode Configuration
STMicroelectronics BAS69KFILM	230 nA	570 mV	200 mA	Any Speed	SOD-523	10 mA	SC-79 SOD-523	Schottky	1 pF	Surface Mount	150 °C

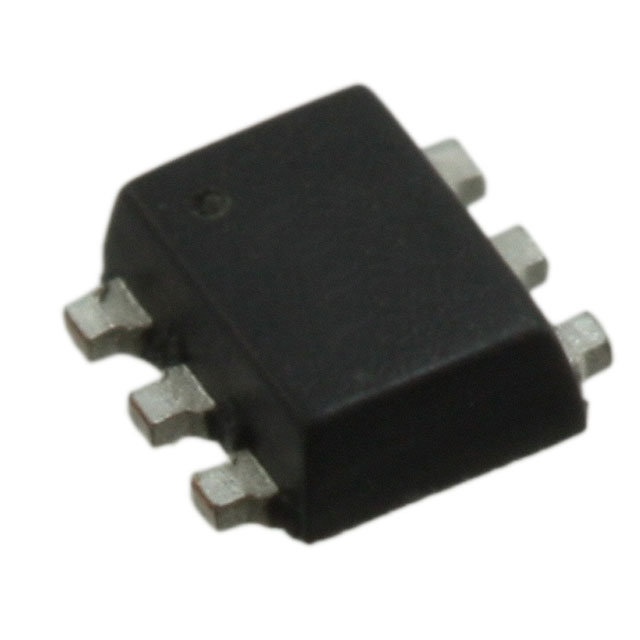

STMicroelectronics BAS69-09P6FILM	230 nA	570 mV	200 mA	Any Speed	SOT-666		SOT-563 SOT-666	Schottky		Surface Mount	150 °C	10 mA	2 Independent
STMicroelectronics BAS69-07P6FILM	230 nA	570 mV	200 mA	Any Speed	SOT-666		SOT-563 SOT-666	Schottky		Surface Mount	150 °C	10 mA	2 Independent
STMicroelectronics BAS69WFILM	230 nA	570 mV	200 mA	Any Speed	SOT-323	10 mA	SC-70 SOT-323	Schottky	1 pF	Surface Mount	150 °C
