DF3DZ Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HEADER SMD R/A 8POS 2MM
| Part | Connector Type | Contact Type | Number of Positions | Number of Rows | Termination | Mounting Type | Material Flammability Rating | Insulation Material | Contact Shape | Style | Fastening Type | Shrouding | Insulation Height | Insulation Height | Contact Finish - Mating | Number of Positions Loaded | Contact Material | Pitch - Mating | Pitch - Mating | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Features | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Header | Male Pin | 8 | 1 | Solder | Right Angle Surface Mount | UL94 V-0 | Nylon Polyamide (PA) | Circular | Board to Board Cable | Push-Pull | Shrouded - 4 Wall | 5.6 mm | 0.22 in | Gold | All | Brass | 0.079 " | 2 mm | Beige | -55 C | 105 ░C | 3 A | ||
 Hirose Electric Co Ltd | Header | Male Pin | 5 | 1 | Solder | Surface Mount | UL94 V-0 | Nylon Polyamide (PA) | Circular | Board to Board Cable | Push-Pull | Shrouded - 4 Wall | 5.9 mm | 0.232 in | All | Brass | 0.079 " | 2 mm | Beige | -30 ░C | 85 °C | 3 A | Solder Retention | Tin | |

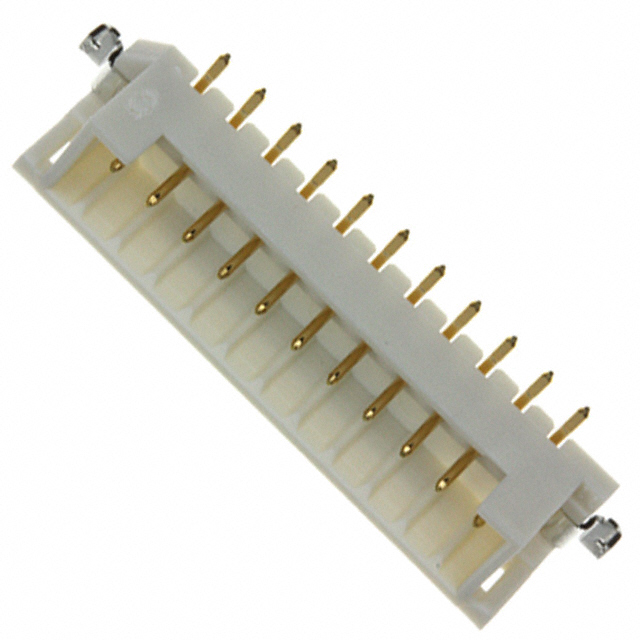

 Hirose Electric Co Ltd | Header | Male Pin | 11 | 1 | Solder | Surface Mount | UL94 V-0 | Nylon Polyamide (PA) | Circular | Board to Board Cable | Push-Pull | Shrouded - 4 Wall | 5.9 mm | 0.232 in | Gold | All | Phosphor Bronze | 0.079 " | 2 mm | Beige | -30 ░C | 85 °C | 3 A | Solder Retention | |

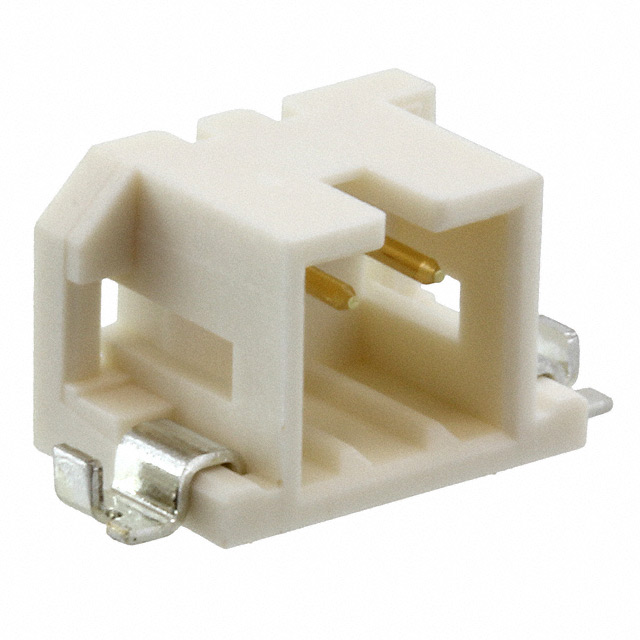

 Hirose Electric Co Ltd | Header | Male Pin | 2 | 1 | Solder | Right Angle Surface Mount | UL94 V-0 | Nylon Polyamide (PA) | Circular | Board to Board Cable | Push-Pull | Shrouded - 4 Wall | 5.6 mm | 0.22 in | All | Brass | 0.079 " | 2 mm | Beige | -55 C | 105 ░C | 3 A | |||

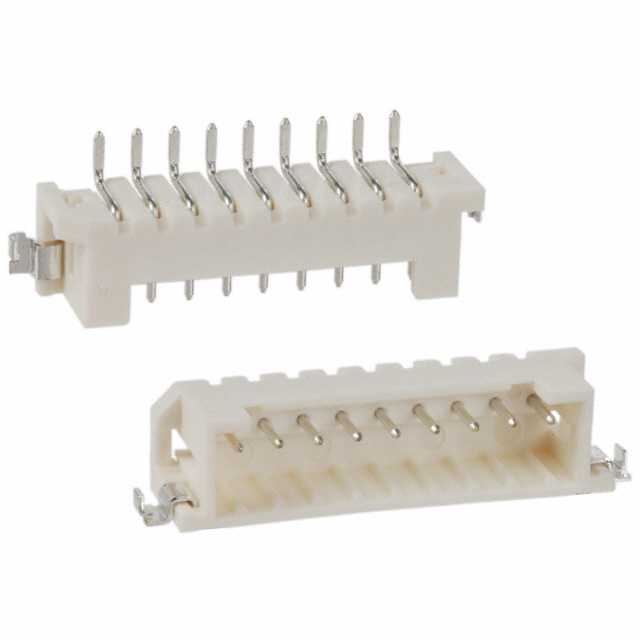

 Hirose Electric Co Ltd | Header | Male Pin | 9 | 1 | Solder | Right Angle Surface Mount | UL94 V-0 | Nylon Polyamide (PA) | Circular | Board to Board Cable | Push-Pull | Shrouded - 4 Wall | 5.6 mm | 0.22 in | All | Brass | 0.079 " | 2 mm | Beige | -55 C | 105 ░C | 3 A | Tin | ||

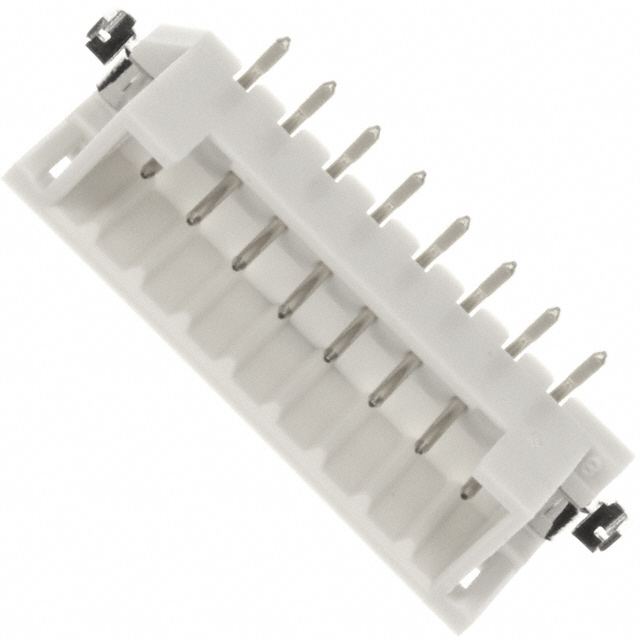

 Hirose Electric Co Ltd | Header | Male Pin | 8 | 1 | Solder | Surface Mount | UL94 V-0 | Nylon Polyamide (PA) | Circular | Board to Board Cable | Push-Pull | Shrouded - 4 Wall | 5.9 mm | 0.232 in | Gold | All | Phosphor Bronze | 0.079 " | 2 mm | Beige | -30 ░C | 85 °C | 3 A | Solder Retention | |

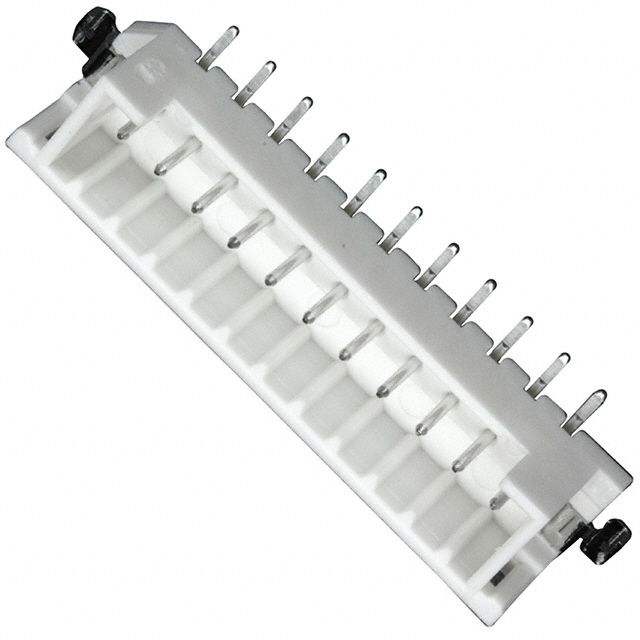

 Hirose Electric Co Ltd | Header | Male Pin | 11 | 1 | Solder | Surface Mount | UL94 V-0 | Nylon Polyamide (PA) | Circular | Board to Board Cable | Push-Pull | Shrouded - 4 Wall | 5.9 mm | 0.232 in | All | Brass | 0.079 " | 2 mm | Beige | -30 ░C | 85 °C | 3 A | Solder Retention | Tin | |
 Hirose Electric Co Ltd | Header | Male Pin | 4 | 1 | Solder | Right Angle Surface Mount | UL94 V-0 | Nylon Polyamide (PA) | Circular | Board to Board Cable | Push-Pull | Shrouded - 4 Wall | 5.6 mm | 0.22 in | All | Brass | 0.079 " | 2 mm | Beige | -55 C | 105 ░C | 3 A | Tin | ||

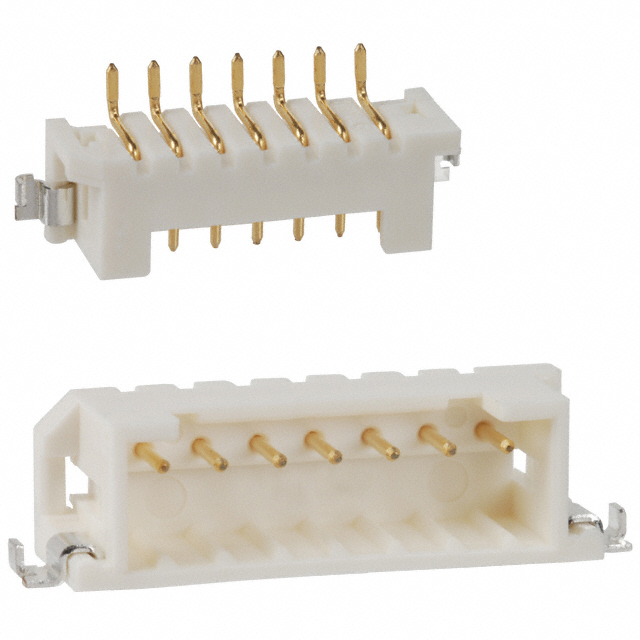

 Hirose Electric Co Ltd | Header | Male Pin | 7 | 1 | Solder | Right Angle Surface Mount | UL94 V-0 | Nylon Polyamide (PA) | Circular | Board to Board Cable | Push-Pull | Shrouded - 4 Wall | 5.6 mm | 0.22 in | Gold | All | Brass | 0.079 " | 2 mm | Beige | -55 C | 105 ░C | 3 A | Solder Retention | |
 Hirose Electric Co Ltd | Header | Male Pin | 1 | Solder | Right Angle Surface Mount | UL94 V-0 | Nylon Polyamide (PA) | Circular | Board to Board Cable | Push-Pull | Shrouded - 4 Wall | 5.6 mm | 0.22 in | All | Brass | 0.079 " | 2 mm | Beige | -55 C | 105 ░C | 3 A | Tin |
