DF58 Series

Catalog

CONN HEADER SMD 3POS 1.2MM

Part	Mounting Type	Contact Shape	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Color	Termination	Connector Type	Contact Material	Shrouding	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions Loaded	Contact Type	Features	Style	Number of Rows	Insulation Material	Fastening Type	Insulation Height	Insulation Height	Number of Positions	Pin or Socket	Contact Termination	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Type

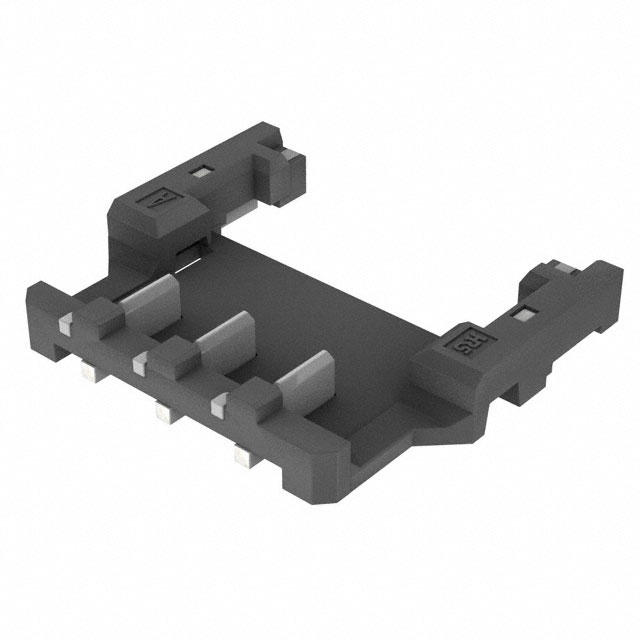

Hirose Electric Co Ltd DF58-3P-1.2V(21)	Surface Mount	Rectangular	100 V	-55 C	85 °C	Tin	Black	Solder	Header	Copper Alloy	Unshrouded	1.2 mm	0.047 in	UL94 V-0	All	Male Blade	Solder Retention	Board to Cable/Wire	1	Liquid Crystal Polymer (LCP)	Swing Lock	2.41 mm	0.095 in

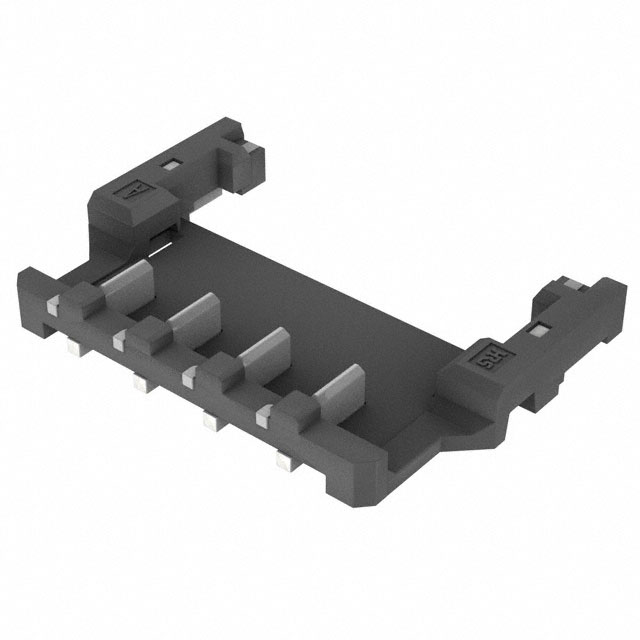

Hirose Electric Co Ltd DF58-4P-1.2V(21)	Surface Mount	Rectangular	100 V	-55 C	85 °C	Tin	Black	Solder	Header	Copper Alloy	Unshrouded	1.2 mm	0.047 in	UL94 V-0	All	Male Blade	Solder Retention	Board to Cable/Wire	1	Liquid Crystal Polymer (LCP)	Swing Lock	2.41 mm	0.095 in	4

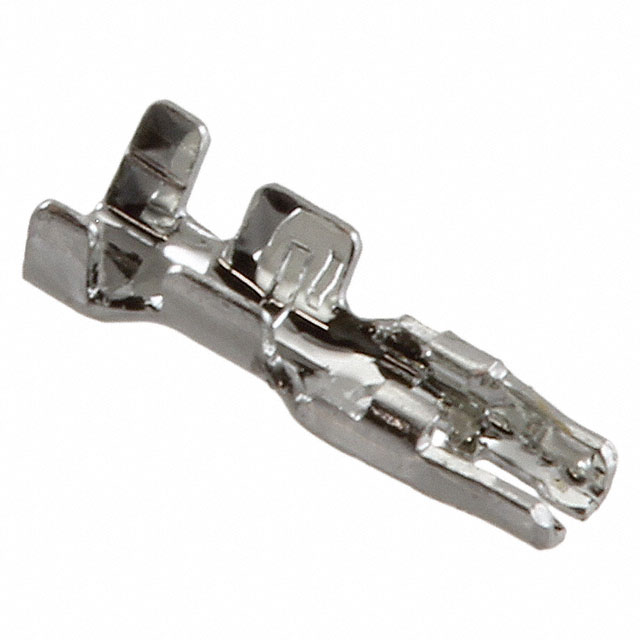

Hirose Electric Co Ltd DF58-2830SCF																									Female Blade Sockets	Crimp	30 AWG	27.5 AWG	Tin	Stamped

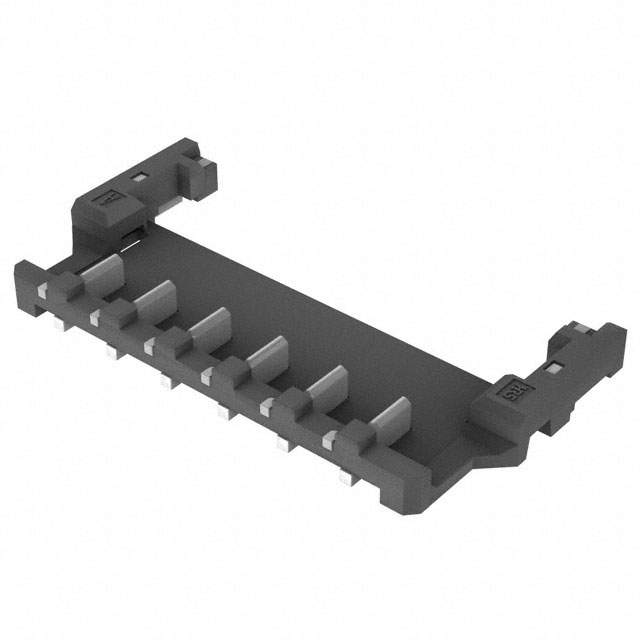

Hirose Electric Co Ltd DF58-6P-1.2V(21)	Surface Mount	Rectangular	100 V	-55 C	85 °C	Tin	Black	Solder	Header	Copper Alloy	Unshrouded	1.2 mm	0.047 in	UL94 V-0	All	Male Blade	Solder Retention	Board to Cable/Wire	1	Liquid Crystal Polymer (LCP)	Swing Lock	2.41 mm	0.095 in	6
