L5963 Series

L5963 Evaluation board

Catalog

L5963 Evaluation board

Part	Frequency - Switching [Max]	Frequency - Switching [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Package / Case	Supplier Device Package	Mounting Type	Voltage/Current - Output 3	Voltage/Current - Output 3	Number of Outputs	Voltage/Current - Output 2	Voltage/Current - Output 2	Voltage/Current - Output 1	Voltage/Current - Output 1	Voltage - Supply [Min]	Voltage - Supply [Max]	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Regulator Topology	Voltage - Output	Outputs and Type [custom]	Current - Output	Contents	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Main Purpose	Topology

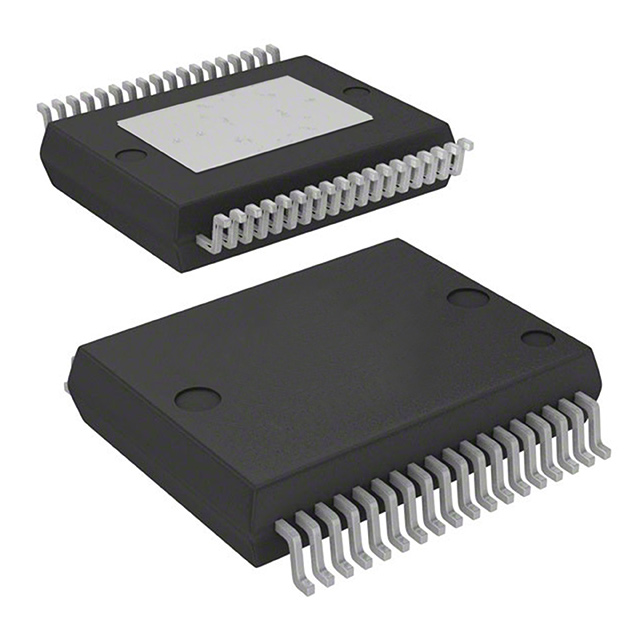

STMicroelectronics L5963DN-EHT	2 MHz	250 kHz	-40 C	105 ░C	7.5 mm	36-PowerFSOP	0.295 "	PowerSSO-36 EPU	Surface Mount	Programmable	250 mA	3	Programmable	3 A	Programmable	2.5 A	3.5 V	26 V
STMicroelectronics EVAL-L5963																			Fully Populated	Non-Isolated Non-Isolated Outputs	3	Board(s)	Buck	1.2 V 3.3 V 5 V	3	3 A 250 mA	Board(s)	3.5 V	26 V	L5963	DC/DC Step Down with LDO
STMicroelectronics L5963DN-EHX	2 MHz	250 kHz	-40 C	105 ░C	7.5 mm	36-PowerFSOP	0.295 "	PowerSSO-36 EPU	Surface Mount	Programmable	250 mA	3	Programmable	3 A	Programmable	2.5 A	3.5 V	26 V
STMicroelectronics L5963Q-V0Y	2 MHz	250 kHz	-40 C	105 ░C		48-TFQFN Exposed Pad		48-VFQFPN (7x7)	Surface Mount Wettable Flank	Programmable	250 mA	3	Programmable	3 A	Programmable	2.5 A	3.5 V	26 V														Linear (LDO) (1) Step-Down (Buck) Synchronous (1)
STMicroelectronics L5963U-KBX	2 MHz	250 kHz	-40 C	105 ░C	7.5 mm	36-PowerFSOP	0.295 "	PowerSO-36 EPU	Surface Mount	Programmable	250 mA	3	Programmable	3 A	Programmable	2.5 A	3.5 V	26 V
STMicroelectronics L5963U-KBT	2 MHz	250 kHz	-40 C	105 ░C	7.5 mm	36-PowerFSOP	0.295 "	PowerSO-36 EPU	Surface Mount	Programmable	250 mA	3	Programmable	3 A	Programmable	2.5 A	3.5 V	26 V
STMicroelectronics L5963Q-V0T	2 MHz	250 kHz	-40 C	105 ░C		48-TFQFN Exposed Pad		48-VFQFPN (7x7)	Surface Mount	Programmable	250 mA	3	Programmable	3 A	Programmable	2.5 A	3.5 V	26 V

Catalog

L5963 Evaluation board

Description

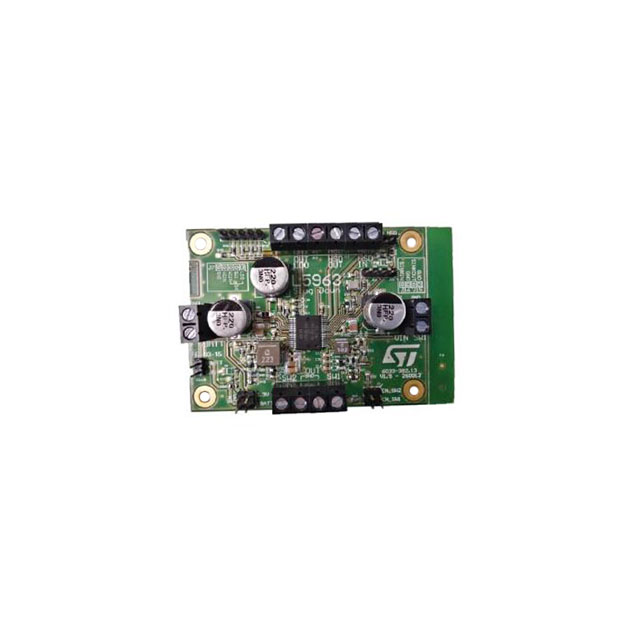

EVAL-L5963 is an evaluation board supporting the L5963 in PowerSSO-36 slug down voltage regulator. It offers the flexibility to independently supply the various regulators and to work at a frequency different from the free run (250 kHz).
