3610SB Series

Catalog

FAN AXIAL 92X25MM 12VDC WIRE

Part	Material - Frame	Lifetime @ Temp.	Current Rating (Amps)	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Approval Agency	RPM	Fan Type	Static Pressure	Static Pressure	Size / Dimension [y]	Size / Dimension [x]	Features	Width [y]	Air Flow	Air Flow	Power (Watts)	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Voltage - Rated	Bearing Type	Termination
NMB TECHNOLOGIES 3610SB-04W-B29-E50	Plastic	100000 Hrs	70 mA	Plastic	13.8 VDC	6 VDC	CE UL VDE	2050 RPM	Tubeaxial	0.09 in H2O	22.4 Pa	92 mm	92 mm	Speed Sensor (Tach)	25 mm	35.7 CFM	1 m³/min	840 mW	25 dB(A)	70 °C	-10 °C	0.209 lb	94.8 g	12 VDC	Ball	3 Wire Leads
NMB TECHNOLOGIES 3610SB-04W-B40-B00	Plastic	100000 Hrs		Plastic	13.8 VDC	6 VDC	CE UL VDE	2750 RPM	Tubeaxial	0.154 in H2O	38.4 Pa	92 mm	92 mm		25 mm	48.4 CFM	1.35 mł/min	1.56 W	32 dB	70 °C	-10 °C	0.209 lb	94.8 g	12 VDC	Ball	2 Wire Leads
NMB TECHNOLOGIES 3610SB-05W-B29-E00	Plastic	100000 Hrs	40 mA	Plastic	27.6 VDC	12	CE UL VDE	2050 RPM	Tubeaxial	0.09 in H2O	22.4 Pa	92 mm	92 mm	Locked Rotor Sensor	25 mm	35.7 CFM	1 m³/min	840 mW	25 dB(A)	70 °C	-10 °C	0.209 lb	94.8 g	24 VDC	Ball	3 Wire Leads
NMB TECHNOLOGIES 3610SB-04W-B59-E50	Plastic	100000 Hrs	150 mA	Plastic	13.8 VDC	6 VDC	CE UL VDE	3100 RPM	Tubeaxial	0.19 in H2O	47.3 Pa	92 mm	92 mm	Speed Sensor (Tach)	25 mm	54.4 CFM	1.52 m³/min	1.8 W	35 dB	70 °C	-10 °C	0.209 lb	94.8 g	12 VDC	Ball	3 Wire Leads
NMB TECHNOLOGIES 3610SB-05W-B59-E50	Plastic	100000 Hrs		Plastic	27.6 VDC	12	CE UL VDE	3100 RPM	Tubeaxial	0.19 in H2O	47.3 Pa	92 mm	92 mm	Speed Sensor (Tach)	25 mm	54.4 CFM	1.52 m³/min	1.8 W	35 dB	70 °C	-10 °C	0.209 lb	94.8 g	24 VDC	Ball	3 Wire Leads
NMB TECHNOLOGIES 3610SB-04W-B49-B50	Plastic	100000 Hrs		Plastic	13.8 VDC	6 VDC	CE UL VDE	2750 RPM	Tubeaxial			92 mm	92 mm	Speed Sensor (Tach)	25 mm	48.4 CFM	1.35 mł/min	1.56 W	32 dB	70 °C	-10 °C	0.209 lb	94.8 g	12 VDC	Ball	3 Wire Leads
NMB TECHNOLOGIES 3610SB-04W-B49-B00	Plastic	100000 Hrs		Plastic	13.8 VDC	6 VDC	CE UL VDE	2750 RPM	Tubeaxial			92 mm	92 mm	Locked Rotor Sensor	25 mm	48.4 CFM	1.35 mł/min	1.56 W	32 dB	70 °C	-10 °C	0.209 lb	94.8 g	12 VDC	Ball	3 Wire Leads

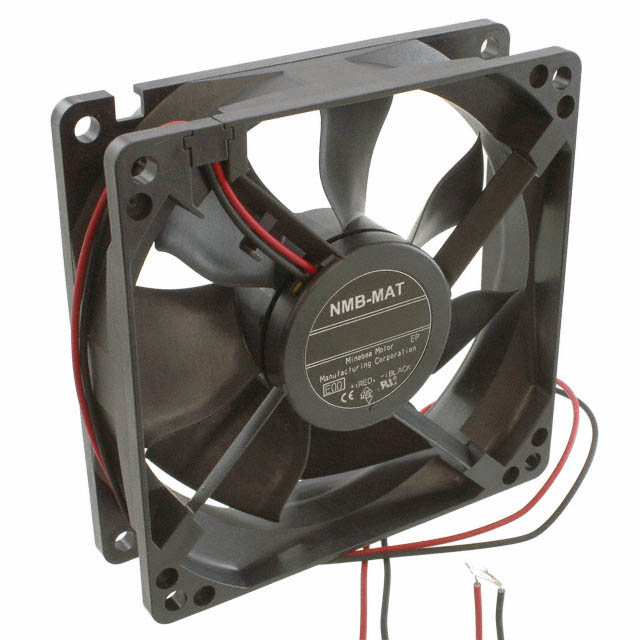

NMB TECHNOLOGIES 3610SB-04W-B50-E00	Plastic	100000 Hrs	150 mA	Plastic	13.8 VDC	6 VDC	CE UL VDE	3100 RPM	Tubeaxial	0.19 in H2O	47.3 Pa	92 mm	92 mm		25 mm	54.4 CFM	1.52 m³/min	1.8 W	35 dB	70 °C	-10 °C	0.209 lb	94.8 g	12 VDC	Ball	2 Wire Leads
NMB TECHNOLOGIES 3610SB-05W-B29-B00	Plastic	100000 Hrs	40 mA	Plastic	27.6 VDC	12	CE UL VDE	2050 RPM	Tubeaxial	0.09 in H2O	22.4 Pa	92 mm	92 mm	Locked Rotor Sensor	25 mm	35.7 CFM	1 m³/min	840 mW	25 dB(A)	70 °C	-10 °C	0.209 lb	94.8 g	24 VDC	Ball	3 Wire Leads
NMB TECHNOLOGIES 3610SB-05W-B49-B00	Plastic	100000 Hrs	70 mA	Plastic	27.6 VDC	12	CE UL VDE	2750 RPM	Tubeaxial			92 mm	92 mm	Locked Rotor Sensor	25 mm	48.4 CFM	1.35 mł/min	1.56 W	32 dB	70 °C	-10 °C	0.209 lb	94.8 g	24 VDC	Ball	3 Wire Leads
