BXRH-40 Series

Manufacturer: BRIDGELUX

Catalog

LED COB V3 NEUT WHT SQUARE 4000K

Part	Viewing Angle	Voltage - Forward (Vf) (Typ)	Type	Configuration	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Temperature - Test	Color	Height	CCT (K)	CCT (K)	Luminous Flux @ Current/Temperature	Lens Type	Current - Max [Max]	Lumens/Watt @ Current - Test	Current - Test	Height [z]
BRIDGELUX BXRH-40G0300-B-83	120 °	17.6 V	Chip On Board (COB)	Square	12.5 mm	12.5 mm	90	3.8 mm	25 °C	Neutral White	1.63 mm	4000 K	3-Step MacAdam Ellipse	340 lm	Flat	360 mA	121 lm/W

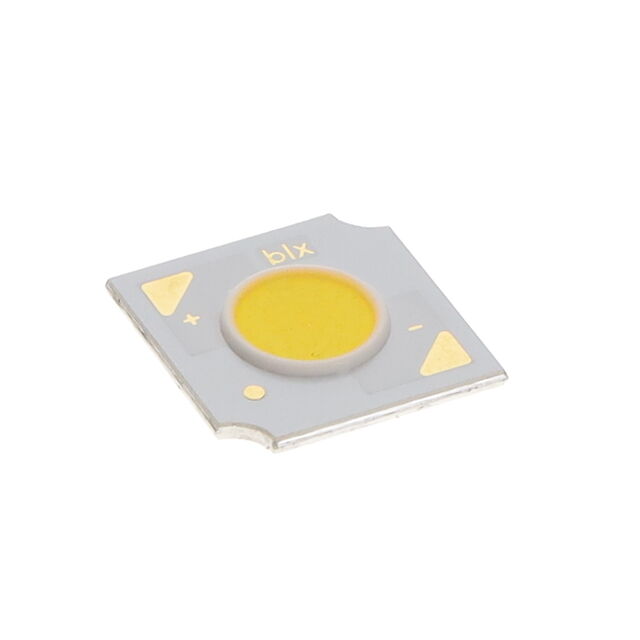

BRIDGELUX BXRH-40E1000-G-83	120 °	18.3 V	Chip On Board (COB)	Square	13.5 mm	13.5 mm	80	6.6 mm	25 °C	Neutral White	1.63 mm	4000 K	3-Step MacAdam Ellipse	1850 lm	Flat	1.2 A	144 lm/W

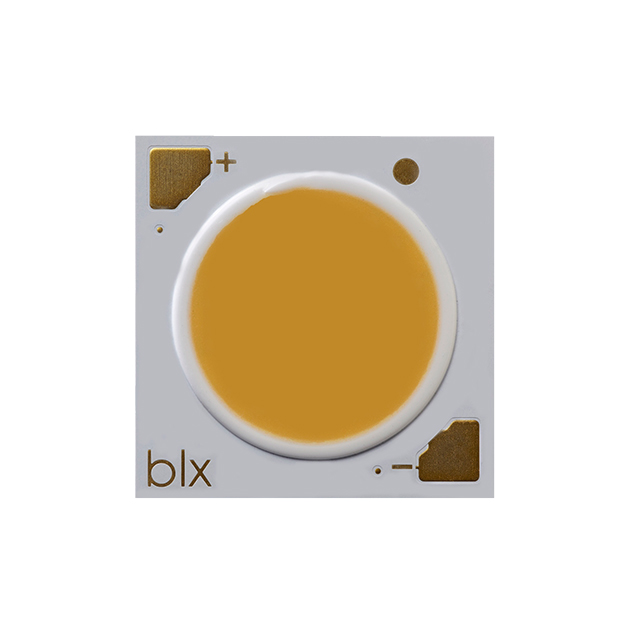

BRIDGELUX BXRH-40E6000-G-23	112 °	36.6 V	Chip On Board (COB)	Square	17.85 mm	17.85 mm	80	12.6 mm	25 °C	Neutral White		4000 K	3-Step MacAdam Ellipse	6789 lm	Flat	2.2 A	106 lm/W	1.75 A	1.7 mm

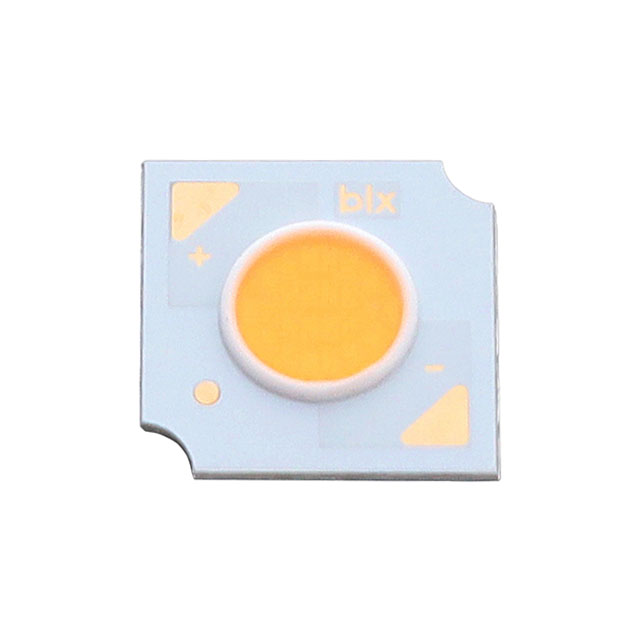

BRIDGELUX BXRH-40H1000-B-83	120 °	36.6 V	Chip On Board (COB)	Square	13.5 mm	13.5 mm	97	6.6 mm	25 °C	Neutral White	1.63 mm	4000 K	3-Step MacAdam Ellipse	1395 lm	Flat	600 mA	109 lm/W	350 mA

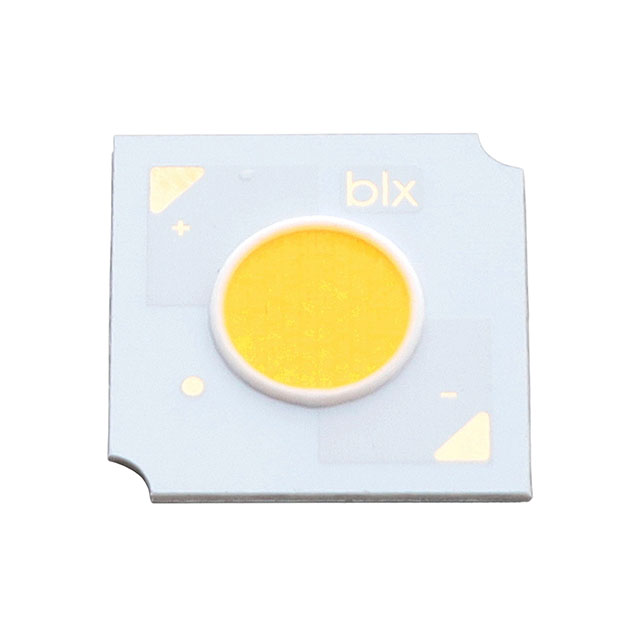

BRIDGELUX BXRH-40E3000-D-83	120 °	36.6 V	Chip On Board (COB)	Square	19 mm	19 mm	80	8.8 mm	25 °C	Neutral White	1.63 mm	4000 K	3-Step MacAdam Ellipse	3737 lm	Flat	1.2 A	146 lm/W
BRIDGELUX BXRH-40H0300-B-83	120 °	17.6 V	Chip On Board (COB)	Square	12.5 mm	12.5 mm	97	3.8 mm	25 °C	Neutral White	1.63 mm	4000 K	3-Step MacAdam Ellipse	307 lm	Flat	360 mA	109 lm/W

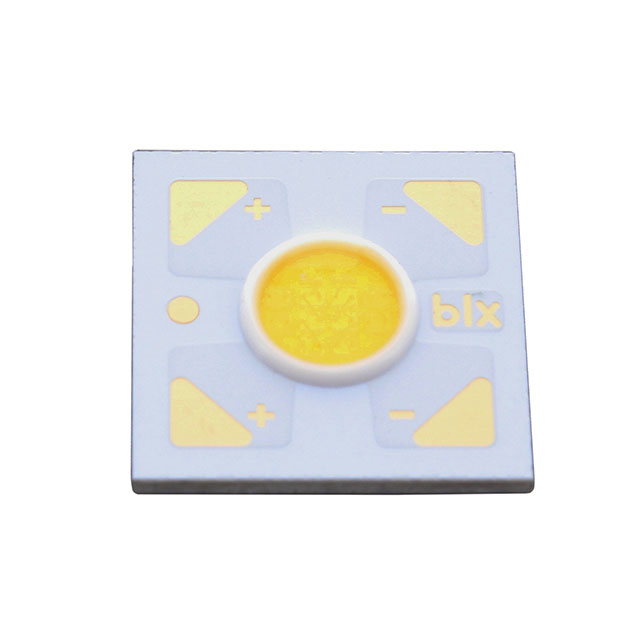

BRIDGELUX BXRH-40S0601-A-73	120 °	36.4 V	Chip On Board (COB)	Square	12.5 mm	12.5 mm	98 98	4.5 mm 4.8 mm	25 °C	Neutral White	1.63 mm	4000 K	3-Step MacAdam Ellipse	650 lm	Flat	240 mA	102 lm/W	175 mA

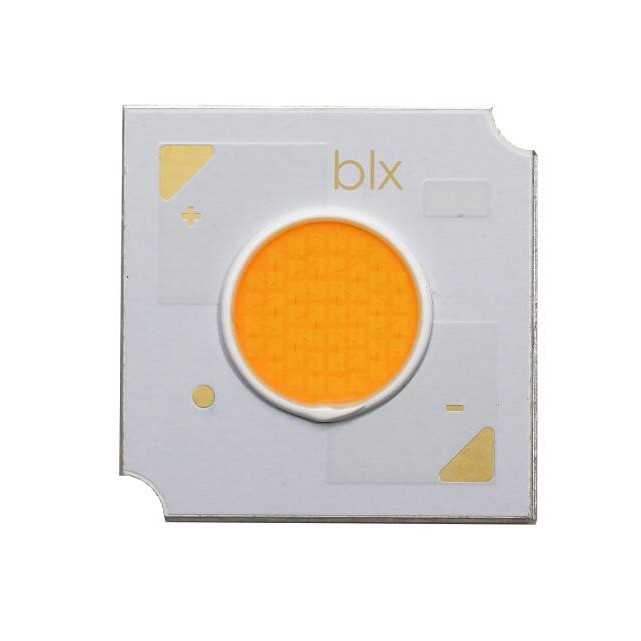

BRIDGELUX BXRH-40H1000-G-83	120 °	18.3 V	Chip On Board (COB)	Square	13.5 mm	13.5 mm	97	6.6 mm	25 °C	Neutral White	1.63 mm	4000 K	3-Step MacAdam Ellipse	1395 lm	Flat	1.2 A	109 lm/W
BRIDGELUX BXRH-40G0600-A-73	120 °	35.4 V	Chip On Board (COB)	Square	12.5 mm	12.5 mm	90	5.2 mm	85 °C	Neutral White	1.63 mm	4000 K	3-Step MacAdam Ellipse	592 lm	Flat	240 mA	96 lm/W	175 mA
BRIDGELUX BXRH-40G3000-D-23	112 °	36.6 V	Chip On Board (COB)	Square			90	9.5 mm	25 °C	Neutral White		4000 K	3-Step MacAdam Ellipse	3221 lm	Flat	1.4 A	88 lm/W	1 A	1.7 mm
