STL260 Series
Manufacturer: STMicroelectronics
Beta
⌘K

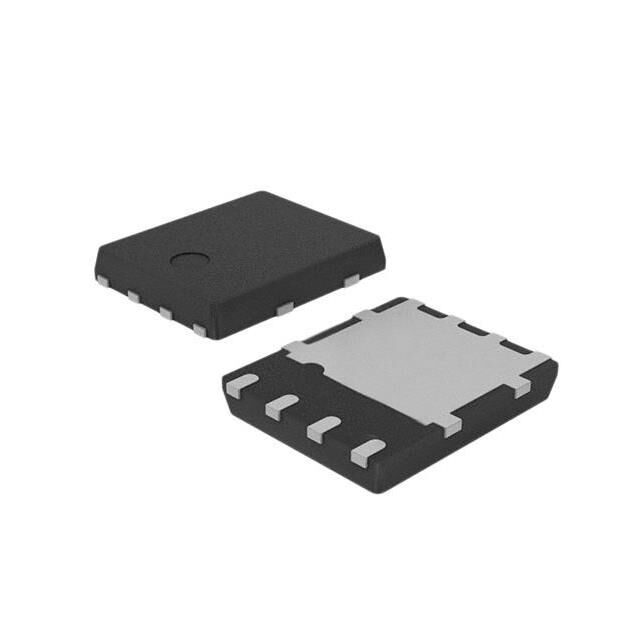

N-CHANNEL 40 V, 0.9 MOHM TYP., 120 A, STRIPFET F7 POWER MOSFET IN A POWERFLAT 5X6 PACKAGE
| Part | Package / Case | Mounting Type | Drive Voltage (Max Rds On, Min Rds On) | Drain to Source Voltage (Vdss) | Gate Charge (Qg) (Max) @ Vgs | FET Type | Supplier Device Package | Vgs(th) (Max) @ Id | Operating Temperature [Max] | Operating Temperature [Min] | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs (Max) | Technology | Power Dissipation (Max) | Input Capacitance (Ciss) (Max) @ Vds [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 8-PowerVDFN | Surface Mount | 10 V | 40 V | 72 nC | N-Channel | PowerFlat™ (5x6) | 4 V | 175 °C | -55 °C | 120 A | 1.1 mOhm | 20 V | MOSFET (Metal Oxide) | 188 W | 5000 pF |
