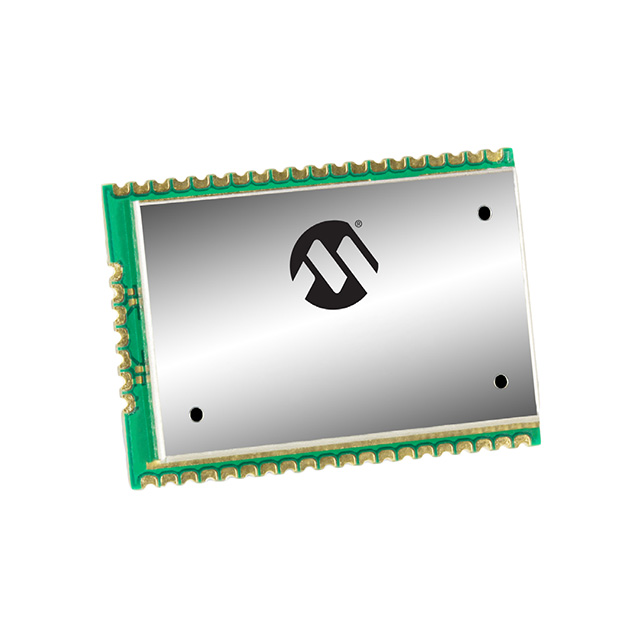

RN2483 Series
Manufacturer: Microchip Technology
Beta
⌘K
LORA TRANSCEIVER MODULE, UART, 2.1 V TO 3.6 V
| Part | Power - Output | Voltage - Supply [Min] | Voltage - Supply [Max] | Protocol | Mounting Type | Modulation | Current - Transmitting [Max] | Current - Transmitting [Min] | Frequency [Max] | Frequency [Min] | RF Family/Standard | Operating Temperature [Max] | Operating Temperature [Min] | Sensitivity | Package / Case | Antenna Type | Serial Interfaces | Current - Receiving | Frequency | Current - Transmitting |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Microchip Technology | 14 dBm | 2.1 V | 3.6 V | LoRa™ | Surface Mount | FSK GFSK | 39 mA | 14.1 mA | 434.79 MHz 870 MHz | 433.05 MHz 863 MHz | General ISM < 1GHz | 85 °C | -40 °C | -146 dBm | Module | Antenna Not Included Castellation | I2C SPI UART | |||
 Microchip Technology | 14 dBm | 2.1 V | 3.6 V | LoRa™ | Surface Mount | General ISM < 1GHz | 85 °C | -40 °C | -146 dBm | Module | Antenna Not Included | I2C SPI UART | 14.3 mA | 433 MHz 868 MHz | 39 mA |
