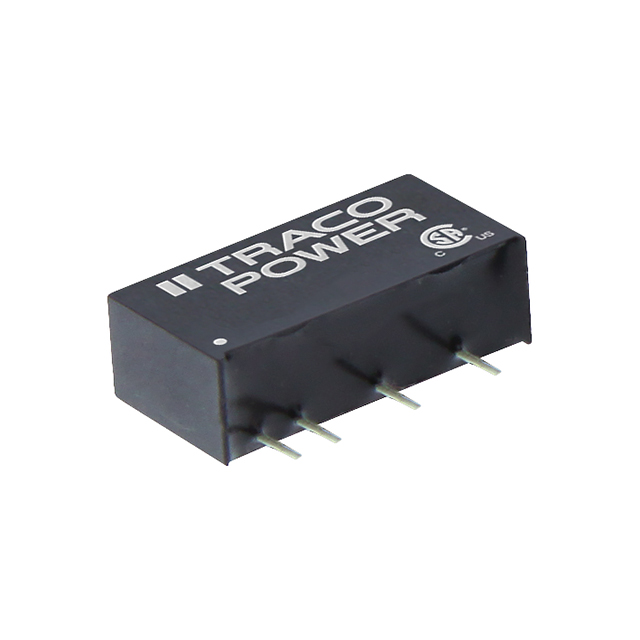

TRA 1 Series

Catalog

DC DC CONVERTER +/-15V 1W

Part	Voltage - Output 2	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Features	Package / Case	Applications	Type	Voltage - Output 1	Voltage - Input (Min) [Min]	Number of Outputs	Mounting Type	Efficiency	Voltage - Input (Max) [Max]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)
Traco Power TRA 1-2423	-15 V	0.4 "	6.1 mm	0.24 "	10.2 mm	0.77 in	19.5 mm	SCP	6-SIP Module 4 Leads	ITE (Commercial)	Isolated Module	15 V	21.6 V	2	Through Hole	87 %	26.4 V	1000 V	95 °C	-40 °C	34 mA	34 mA
Traco Power TRA 1-0512		0.4 "	6.1 mm	0.24 "	10.2 mm	0.77 in	19.5 mm	SCP	6-SIP Module 4 Leads	ITE (Commercial)	Isolated Module	12 V	4.5 V	1	Through Hole	87 %	5.5 V	1000 V	95 °C	-40 °C	84 mA
Traco Power TRA 1-0521	-5 V	0.4 "	6.1 mm	0.24 "	10.2 mm	0.77 in	19.5 mm	SCP	6-SIP Module 5 Leads	ITE (Commercial)	Isolated Module	5 V	4.5 V	2	Through Hole	84.5 %	5.5 V	1000 V	95 °C	-40 °C			100 mA	100 mA
Traco Power TRA 1-1219		0.4 "	6.1 mm	0.24 "	10.2 mm	0.77 in	19.5 mm	SCP	6-SIP Module 4 Leads	ITE (Commercial)	Isolated Module	9 V	10.8 V	1	Through Hole	86.5 %	13.2 V	1000 V	95 °C	-40 °C	110 mA
