FH29DJ Series

Catalog

CONN FPC BOTTOM 80POS 0.2MM R/A

Part	Actuator Color	Mating Cycles	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Housing Color	Connector/Contact Type	FFC, FCB Thickness [custom]	Pitch	Pitch	Contact Material	Number of Positions	Contact Finish	Actuator Material	Flat Flex Type	Housing Material	Locking Feature	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Termination	Voltage Rating	Cable End Type	Height Above Board [z]	Height Above Board [z]	Material Flammability Rating
Hirose Electric Co Ltd FH29DJ-80S-0.2SHW(99)	Black	20	1.97 Áin	0.05 Ám	0.25 A	Beige	Contacts Bottom	0.2 mm	0.2 mm	0.008 in	Phosphor Bronze	80	Gold	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	FPC	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	-55 C	85 °C	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	Solder	40 V	Tabbed	1.2 mm	0.047 "
Hirose Electric Co Ltd FH29DJ-50S-0.2SHW(05)	Black	20	1.97 Áin	0.05 Ám	0.25 A	Beige	Contacts Bottom	0.2 mm	0.2 mm	0.008 in	Phosphor Bronze	50	Gold	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	FPC	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	-55 C	85 °C	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	Solder	40 V	Tabbed	1.2 mm	0.047 "

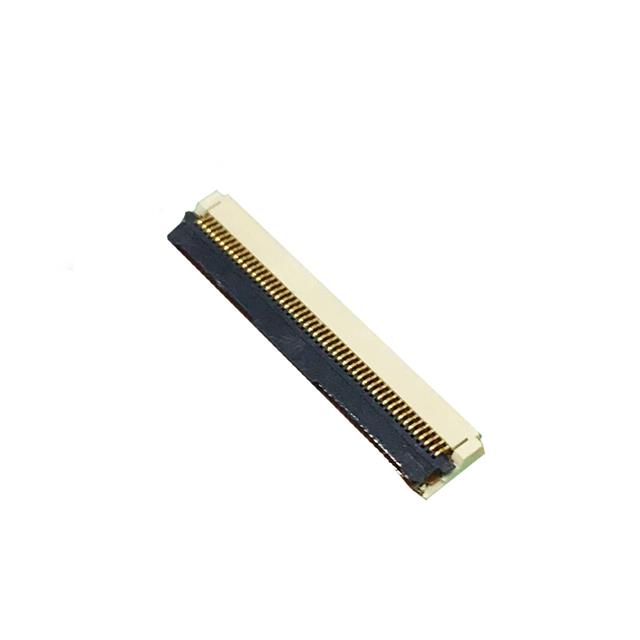

Hirose Electric Co Ltd FH29DJ-120S-0.2SHW(99)	Black	20			0.25 A	Beige	Contacts Bottom	0.2 mm	0.2 mm	0.008 in	Phosphor Bronze	120	Gold	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	FPC	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	-55 C	85 °C	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	Solder	40 V	Notched Tabbed	1.2 mm	0.047 "	UL94 V-0
Hirose Electric Co Ltd FH29DJ-50S-0.2SHW(99)	Black	20	1.97 Áin	0.05 Ám	0.25 A	Beige	Contacts Bottom	0.2 mm	0.2 mm	0.008 in	Phosphor Bronze	50	Gold	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	FPC	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	-55 C	85 °C	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	Solder	40 V	Tabbed	1.2 mm	0.047 "
Hirose Electric Co Ltd FH29DJ-60S-0.2SHW(99)	Black	20	1.97 Áin	0.05 Ám	0.25 A	Beige	Contacts Bottom	0.2 mm	0.2 mm	0.008 in	Phosphor Bronze	60	Gold	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	FPC	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	-55 C	85 °C	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	Solder	40 V	Tabbed	1.2 mm	0.047 "

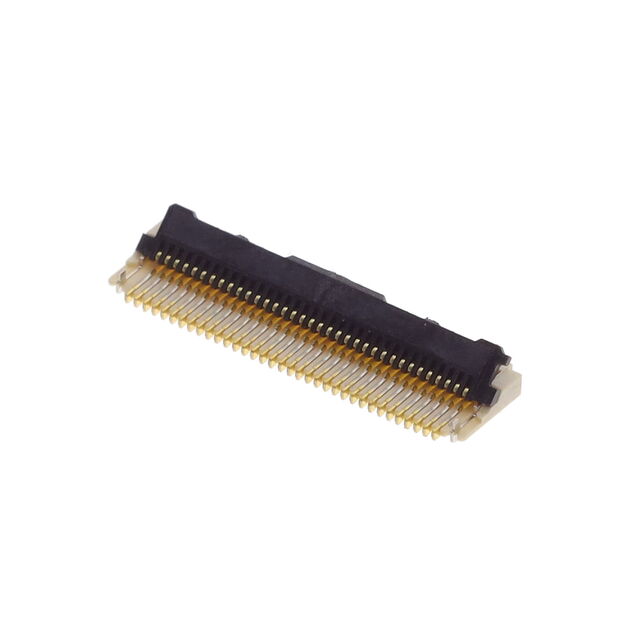

Hirose Electric Co Ltd FH29DJ-70S-0.2SHW(05)	Black	20	1.97 Áin	0.05 Ám	0.25 A	Beige	Contacts Bottom	0.2 mm	0.2 mm	0.008 in	Phosphor Bronze	70	Gold	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	FPC	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	-55 C	85 °C	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	Solder	40 V	Tabbed	1.2 mm	0.047 "
Hirose Electric Co Ltd FH29DJ-44S-0.2SHW(05)	Black	20			0.25 A	Beige	Contacts Bottom	0.2 mm	0.2 mm	0.008 in	Phosphor Bronze	44	Gold	Polyphenylene Sulfide (PPS)	FPC	Liquid Crystal Polymer (LCP)	Flip Lock	-55 C	85 °C	Right Angle Surface Mount		Solder	40 V	Notched Tabbed	1.2 mm	0.047 "	UL94 V-0
Hirose Electric Co Ltd FH29DJ-80S-0.2SHW(05)	Black	20	1.97 Áin	0.05 Ám	0.25 A	Beige	Contacts Bottom	0.2 mm	0.2 mm	0.008 in	Phosphor Bronze	80	Gold	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	FPC	Liquid Crystal Polymer (LCP) Halogen Free	Flip Lock	-55 C	85 °C	Right Angle Surface Mount	Solder Retention Zero Insertion Force (ZIF)	Solder	40 V	Tabbed	1.2 mm	0.047 "
