0.5 GHz to 4.0 GHz, GaAs, SPST Switch
Key Features
• Low insertion loss: 0.7 dB typical at 2.0 GHz
• High input third-order intercept (IP3): >60 dBm typical
• Single positive control: 0 V or 3 V

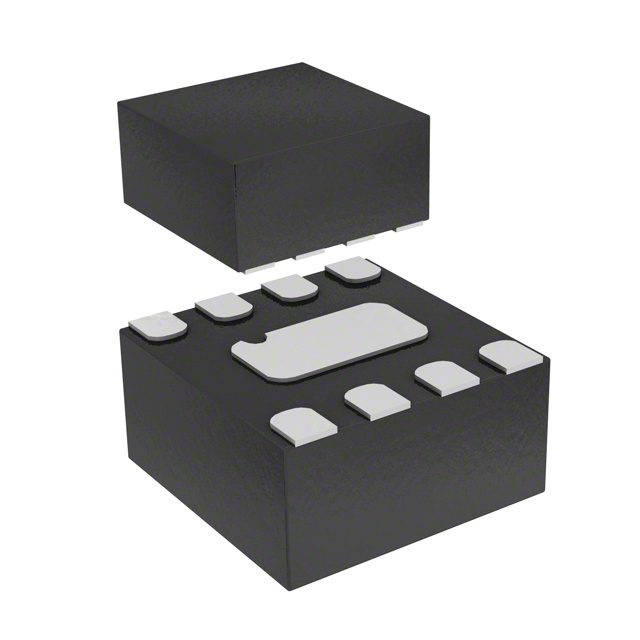

• Small, surface-mount, 8-lead, 2 mm × 2 mm LFCSP package
Description
AI
The HMC1055 is a low cost, gallium arsenide (GaAs), single-pole, single-throw (SPST) switch in a surface-mount LFCSP package. This switch offers low insertion loss, high isolation, and exceptional third-order intermodulation performance that make it ideal for many cellular and wireless infrastructure applications from 0.5 GHz to 4.0 GHz.The HMC1055 operates with single positive supply voltage and a single positive control voltage at very low dc currents. RF1 is reflective open, whereas RF2 is terminated to 50 Ω in the off state.APPLICATIONSCellular infrastructureWireless infrastructureMobile radiosTest equipment
