VN920 Series
Manufacturer: STMicroelectronics
Beta
⌘K

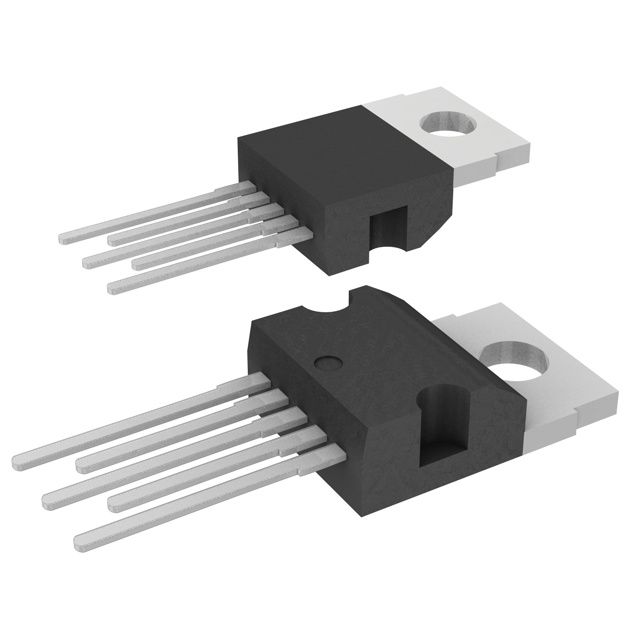

IC PWR DRVR N-CH 1:1 5PENTAWATT
| Part | Current - Output (Max) [Max] | Supplier Device Package | Voltage - Load [Max] | Voltage - Load [Min] | Input Type | Output Configuration | Switch Type | Ratio - Input:Output | Interface | Number of Outputs | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Voltage - Supply (Vcc/Vdd) | Fault Protection | Output Type | Package / Case | Rds On (Typ) | Package / Case | Package / Case | Package / Case [y] | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 30 A | 5-PENTAWATT | 36 V | 5.5 V | Non-Inverting | High Side | General Purpose | 1:1 | On/Off | 1 | Through Hole | -40 °C | 150 °C | Auto Restart | Not Required | Current Limiting (Fixed) Over Temperature Over Voltage | N-Channel | Pentawatt-5 (Straight Leads Staggered Depth) | 16 mOhm | ||||
 STMicroelectronics | 30 A | 16-SO | 36 V | 5.5 V | Non-Inverting | High Side | General Purpose | 1:1 | On/Off | 1 | Surface Mount | -40 °C | 150 °C | Auto Restart | Not Required | Current Limiting (Fixed) Over Temperature Over Voltage | N-Channel | 16-SOIC | 16 mOhm | 7.5 mm | 0.295 " | ||
 STMicroelectronics | 30 A | 10-PowerSO | 36 V | 5.5 V | Non-Inverting | High Side | General Purpose | 1:1 | On/Off | 1 | Surface Mount | -40 °C | 150 °C | Auto Restart | Not Required | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | N-Channel | PowerSO-10 Exposed Bottom Pad | 16 mOhm | ||||
 STMicroelectronics | 30 A | PowerSSO-24 | 36 V | 5.5 V | Non-Inverting | High Side | General Purpose | 1:1 | On/Off | 1 | Surface Mount | -40 °C | 150 °C | Auto Restart | Not Required | Current Limiting (Fixed) Over Temperature Over Voltage | N-Channel | 24-PowerBSOP | 15 mOhm | 0.295 in | 7.5 mm | ||

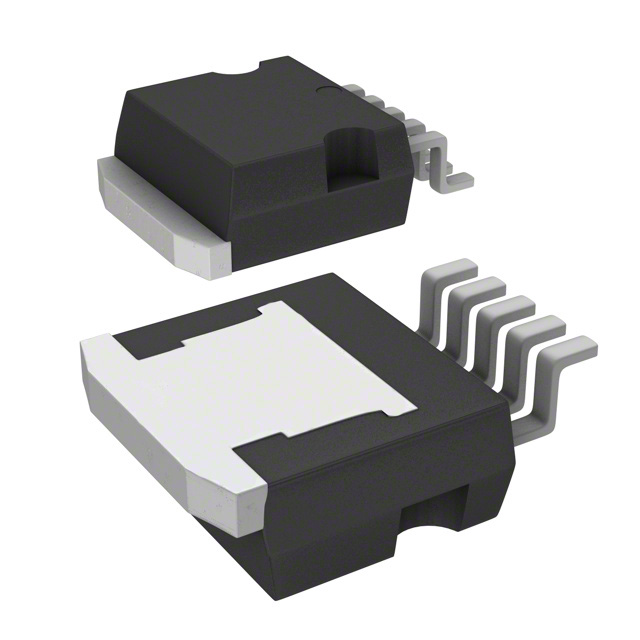

 STMicroelectronics | 30 A | P2PAK | 36 V | 5.5 V | Non-Inverting | High Side | General Purpose | 1:1 | On/Off | 1 | Surface Mount | -40 °C | 150 °C | Auto Restart | Not Required | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | N-Channel | P2PAK (4 Leads + Tab) | 18 mOhm | ||||
STMicroelectronics | 30 A | P2PAK | 36 V | 5.5 V | Non-Inverting | High Side | General Purpose | 1:1 | On/Off | 1 | Surface Mount | -40 °C | 150 °C | Auto Restart | Not Required | Current Limiting (Fixed) Over Temperature Over Voltage | N-Channel | P2PAK (4 Leads + Tab) | 18 mOhm | ||||
 STMicroelectronics | 30 A | P2PAK | 36 V | 5.5 V | Non-Inverting | High Side | General Purpose | 1:1 | On/Off | 1 | Surface Mount | -40 °C | 150 °C | Auto Restart | Not Required | Current Limiting (Fixed) Over Temperature Over Voltage | N-Channel | P2PAK (4 Leads + Tab) | 18 mOhm | ||||
STMicroelectronics | 30 A | 10-PowerSO | 36 V | 5.5 V | Non-Inverting | High Side | General Purpose | 1:1 | On/Off | 1 | Surface Mount | -40 °C | 150 °C | Auto Restart | Not Required | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | N-Channel | PowerSO-10 Exposed Bottom Pad | 16 mOhm | ||||
STMicroelectronics | 30 A | 16-SO | 36 V | 5.5 V | Non-Inverting | High Side | General Purpose | 1:1 | On/Off | 1 | Surface Mount | -40 °C | 150 °C | Auto Restart | Not Required | Current Limiting (Fixed) Over Temperature Over Voltage | N-Channel | 16-SOIC | 16 mOhm | 7.5 mm | 0.295 " | ||
STMicroelectronics | 30 A | P2PAK | 36 V | 5.5 V | Non-Inverting | High Side | General Purpose | 1:1 | On/Off | 1 | Surface Mount | -40 °C | 150 °C | Auto Restart | Not Required | Current Limiting (Fixed) Over Temperature Over Voltage | N-Channel | P2PAK (4 Leads + Tab) | 16 mOhm |
