ODD-1 Series

Catalog

SENSOR PHOTODIODE 940NM TO18

Part	Active Area	Mounting Type	Response Time	Responsivity @ nm	Current - Dark (Typ)	Color - Enhanced	Voltage - DC Reverse (Vr) (Max) [Max]	Wavelength	Operating Temperature [Max]	Operating Temperature [Min]	Spectral Range [Max]	Spectral Range [Min]

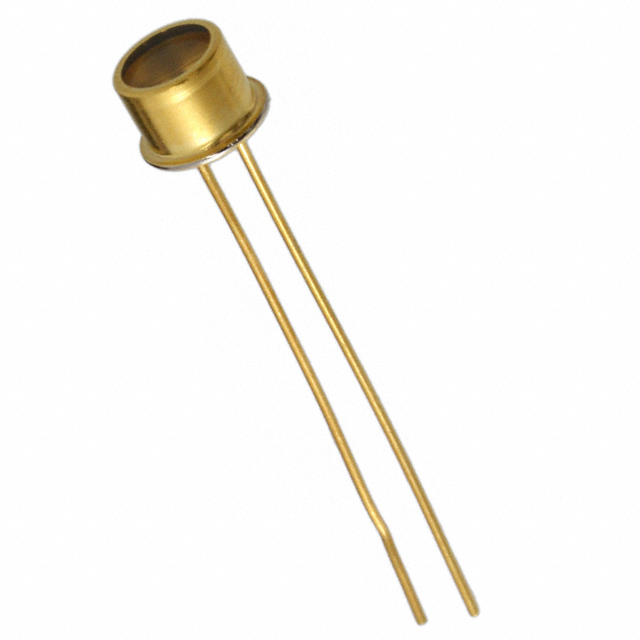

Opto Diode Corp ODD-1W	1 mm˛	Through Hole	8 ns	0.4 A/W	200 pA	Red	60 V	940 nm	100 °C	-55 C	1100 nm	400 nm

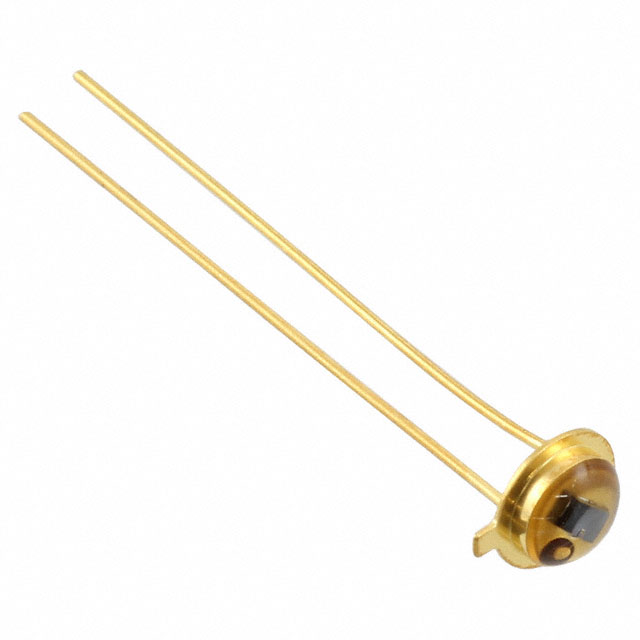

Opto Diode Corp ODD-1B	1 mm˛	Through Hole	8 ns	0.28 A/W	200 pA	Blue	60 V	940 nm	100 °C	-55 C	1100 nm	400 nm

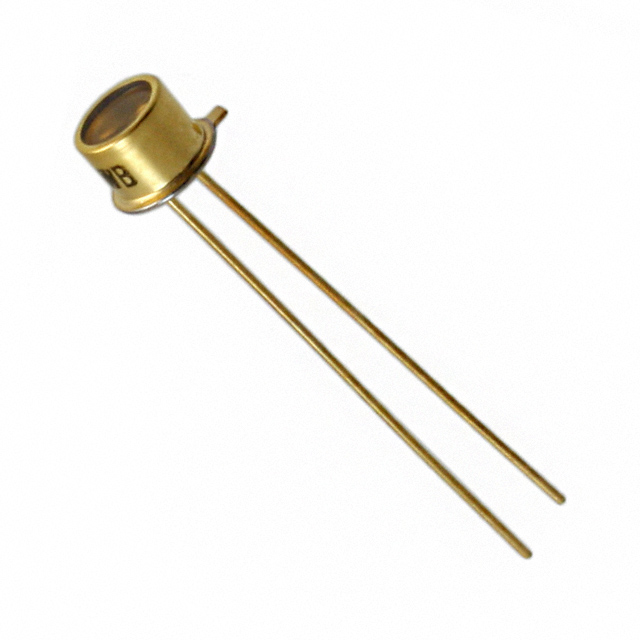

Opto Diode Corp ODD-1WB	1 mm˛	Through Hole	8 ns	0.28 A/W	200 pA	Blue	60 V	940 nm	100 °C	-55 C	1100 nm	400 nm
