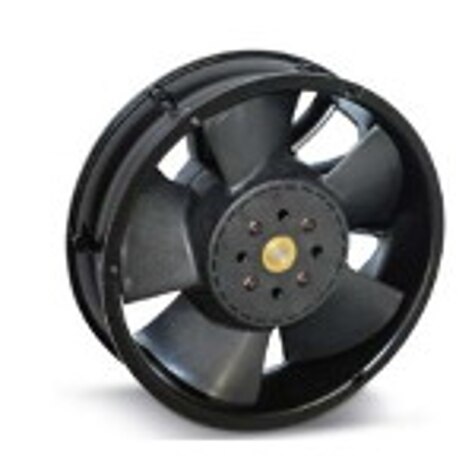

R172A0 Series
DC Fans DC Axial Fan, High Power, 172x51mm Round, 48VDC, 604CFM
Manufacturer: NMB TECHNOLOGIES
Catalog
DC Fans DC Axial Fan, High Power, 172x51mm Round, 48VDC, 604CFM
Beta
⌘K
DC Fans DC Axial Fan, High Power, 172x51mm Round, 48VDC, 604CFM
DC Fans DC Axial Fan, High Power, 172x51mm Round, 48VDC, 604CFM
DC Fans DC Axial Fan, High Power, 172x51mm Round, 48VDC, 604CFM
| Part | Material - Frame | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Air Flow | Air Flow | Lifetime @ Temp. | Current Rating (Amps) | Static Pressure | Static Pressure | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Features | Width [y] | Fan Type | Size / Dimension [diameter] | Noise | Termination | Power (Watts) | Voltage - Rated | RPM | Bearing Type | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | Aluminum | Plastic | 30 VDC | 72 VDC | 16.91 mł/min | 604 CFM | 70000 Hrs | 4.4 A | 6.05 in H2O | 1507.1 Pa | 70 °C | -30 ░C | -30 °C | 70 °C | PWM Control Speed Sensor (Tach) | 50.8 mm | Tubeaxial | 172.7 mm | 82 dB(A) | 4 Wire Leads | 211.2 W | 48 VDC | 9300 RPM | Ball | 1.1 kg | 2.4 lbs |
