MDBT53 Series
Manufacturer: Raytac
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RF TXRX MOD 802.15.4 BTU.FL SMD
| Part | Protocol | Memory Size (Flash) | Memory Type | Memory Size ({type}) | Memory Size (RAM) | Memory Size (SRAM) | Utilized IC / Part | Current - Receiving (Max) | Current - Receiving (Min) | Power - Output | Sensitivity | Data Rate | Mounting Type | Package / Case | Current - Transmitting (Max) | Current - Transmitting (Min) | Antenna Type | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Serial Interfaces | Frequency | RF Family/Standard | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

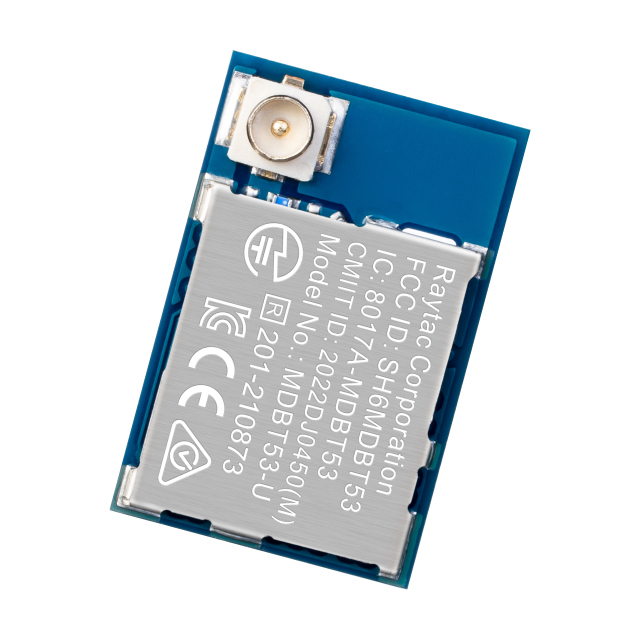

 Raytac | ANT+ Bluetooth v5.4 Thread Zigbee® | 1 MB | Flash RAM SRAM | 512 kB | 512 kB | 512 kB | nRF5340 | 7.9 mA | 2.7 mA | 3 dB | -104 dBm | 2 Mbps | Surface Mount | 65-SMD Module | 11.3 mA | 1.5 mA | Antenna Not Included U.FL | 1.7 V | 5.5 V | ADC GPIO I2C I2S PWM SPI UART USB | 2.4 GHz | 802.15.4 Bluetooth | -40 °C | 105 °C |

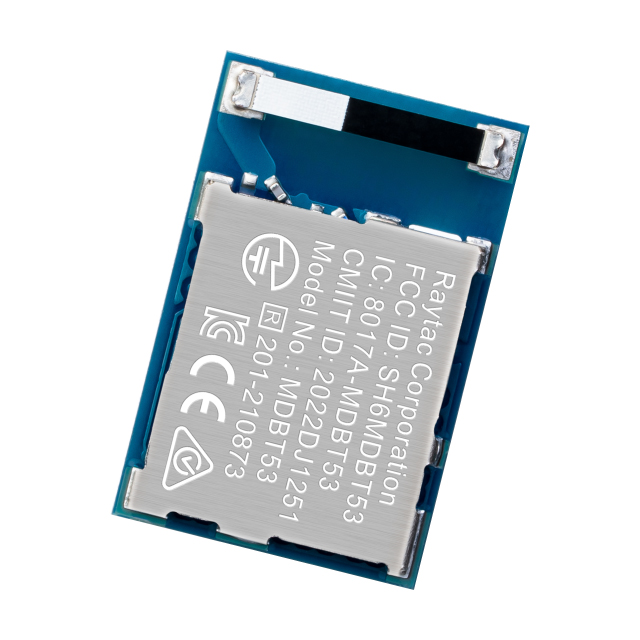

 Raytac | ANT+ Bluetooth v5.4 Thread Zigbee® | 1 MB | Flash RAM SRAM | 512 kB | 512 kB | 512 kB | nRF5340 | 7.9 mA | 2.7 mA | 3 dB | -104 dBm | 2 Mbps | Surface Mount | 65-SMD Module | 11.3 mA | 1.5 mA | Chip | 1.7 V | 5.5 V | ADC GPIO I2C I2S PWM SPI UART USB | 2.4 GHz | 802.15.4 Bluetooth | -40 °C | 105 °C |

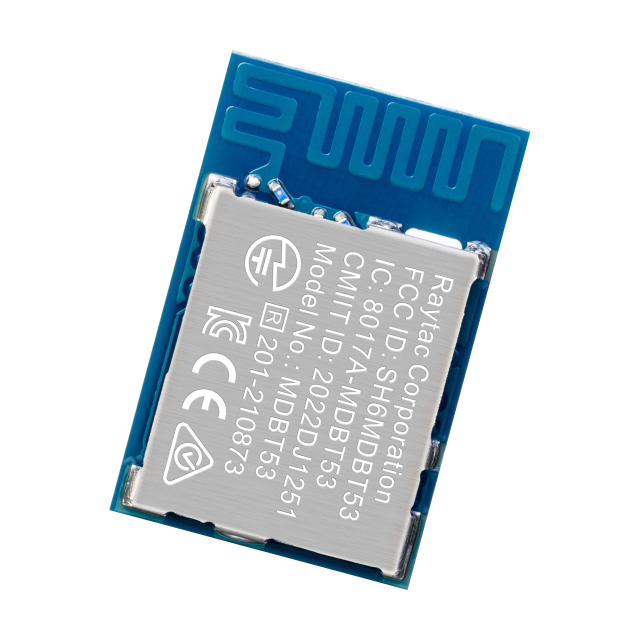

 Raytac | ANT+ Bluetooth v5.4 Thread Zigbee® | 1 MB | Flash RAM SRAM | 512 kB | 512 kB | 512 kB | nRF5340 | 7.9 mA | 2.7 mA | 3 dB | -104 dBm | 2 Mbps | Surface Mount | 65-SMD Module | 11.3 mA | 1.5 mA | PCB Trace | 1.7 V | 5.5 V | ADC GPIO I2C I2S PWM SPI UART USB | 2.4 GHz | 802.15.4 Bluetooth | -40 °C | 105 °C |
