A79042 Series
Manufacturer: Omnetics
Beta
⌘K

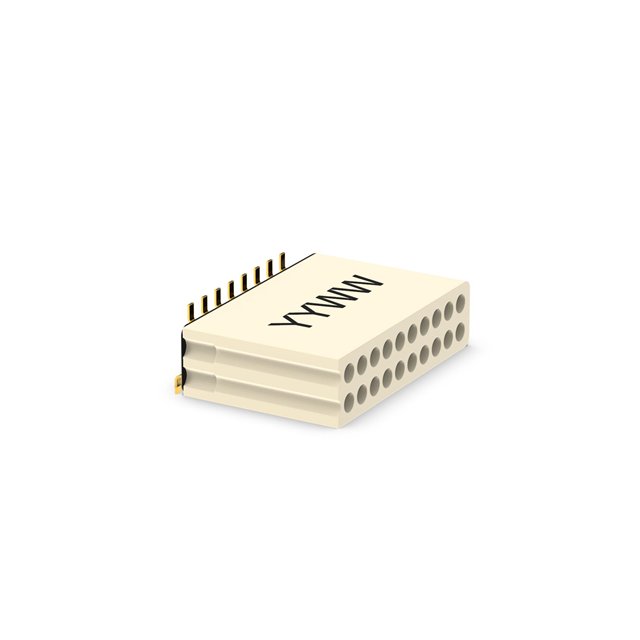

18 POSITION DUAL ROW MALE NANO-M
| Part | Current Rating (Amps) | Number of Positions Loaded | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Style | Shrouding | Contact Finish - Mating | Features | Row Spacing - Mating | Row Spacing - Mating | Contact Material | Insulation Material | Pitch - Mating | Pitch - Mating | Number of Rows [custom] | Insulation Height | Insulation Height | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Contact Shape | Number of Positions | Contact Type | Contact Finish - Post | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | 1 A | All | Header | -55 C | 125 °C | Natural | Board to Cable/Wire | Shrouded - 4 Wall | Gold | Guide Pin | 0.76 mm | 0.03 in | Beryllium Copper | Thermoplastic | 0.64 mm | 0.025 in | 2 | 4.4 mm | 0.173 in | Surface Mount | 50 µin | 1.27 µm | Solder | Circular | 18 | Male Pin | Tin-Lead | Push-Pull |
