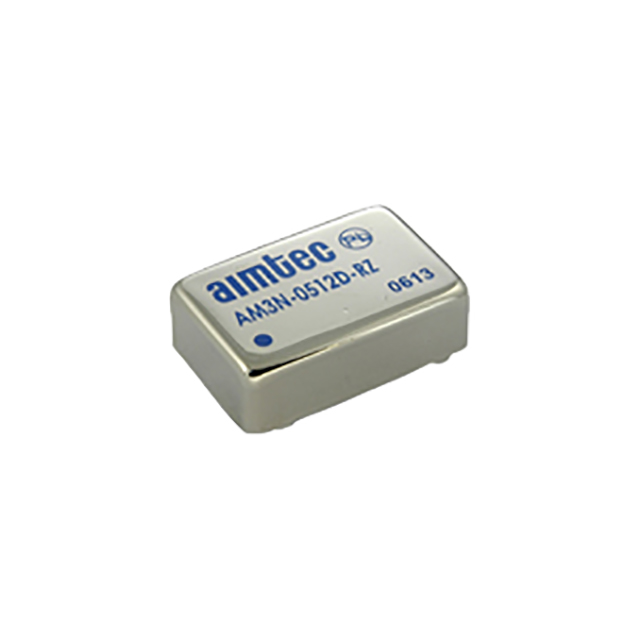

AM3N Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER +/-15V 3W
| Part | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Efficiency | Applications | Voltage - Output 2 | Voltage - Output 1 [Max] [custom] | Voltage - Output 1 [Min] [custom] | Mounting Type | Voltage - Input (Min) [Min] | Type | Package / Case | Current - Output (Max) | Current - Output (Max) | Number of Outputs | Voltage - Isolation | Voltage - Input (Max) [Max] | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Voltage - Output 1 | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 3 W | 78 % | ITE (Commercial) | -15 V | 15 V | -15 V | Through Hole | 21.6 V | Isolated Module | 24-DIP Module | 100 mA | 100 mA | 2 | 3000 V | 26.4 V | CE | 85 °C | -40 C | |||
 aimtec | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 3 W | 70 % | ITE (Commercial) | Through Hole | 21.6 V | Isolated Module | 24-DIP Module | 1 | 1000 V | 26.4 V | CE | 85 °C | -40 C | 250 mA | 12 V | 12 Leads | |||||
aimtec | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 3 W | 70 % | ITE (Commercial) | -15 V | 15 V | -15 V | Through Hole | 4.5 V | Isolated Module | 24-DIP Module | 100 mA | 100 mA | 2 | 1000 V | 5.5 V | CE | 85 °C | -40 C |
