FH62 Series

FFC & FPC Connectors 61P, Receptacle, 0.25mm Pitch, 1.1mm Hig

Manufacturer: Hirose Electric Co Ltd

Catalog

FFC & FPC Connectors 61P, Receptacle, 0.25mm Pitch, 1.1mm Hig

Catalog

FFC & FPC Connectors 61P, Receptacle, 0.25mm Pitch, 1.1mm Hig

Part	Housing Color	Mating Cycles	Actuator Color	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Actuator Material	Contact Material	Connector/Contact Type	Termination	Mounting Type	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Flat Flex Type	Pitch	Pitch	Contact Finish	Locking Feature	Voltage Rating	Height Above Board [z]	Height Above Board [z]	Number of Positions	Material Flammability Rating	FFC, FCB Thickness	Cable End Type	Number of Positions [custom]

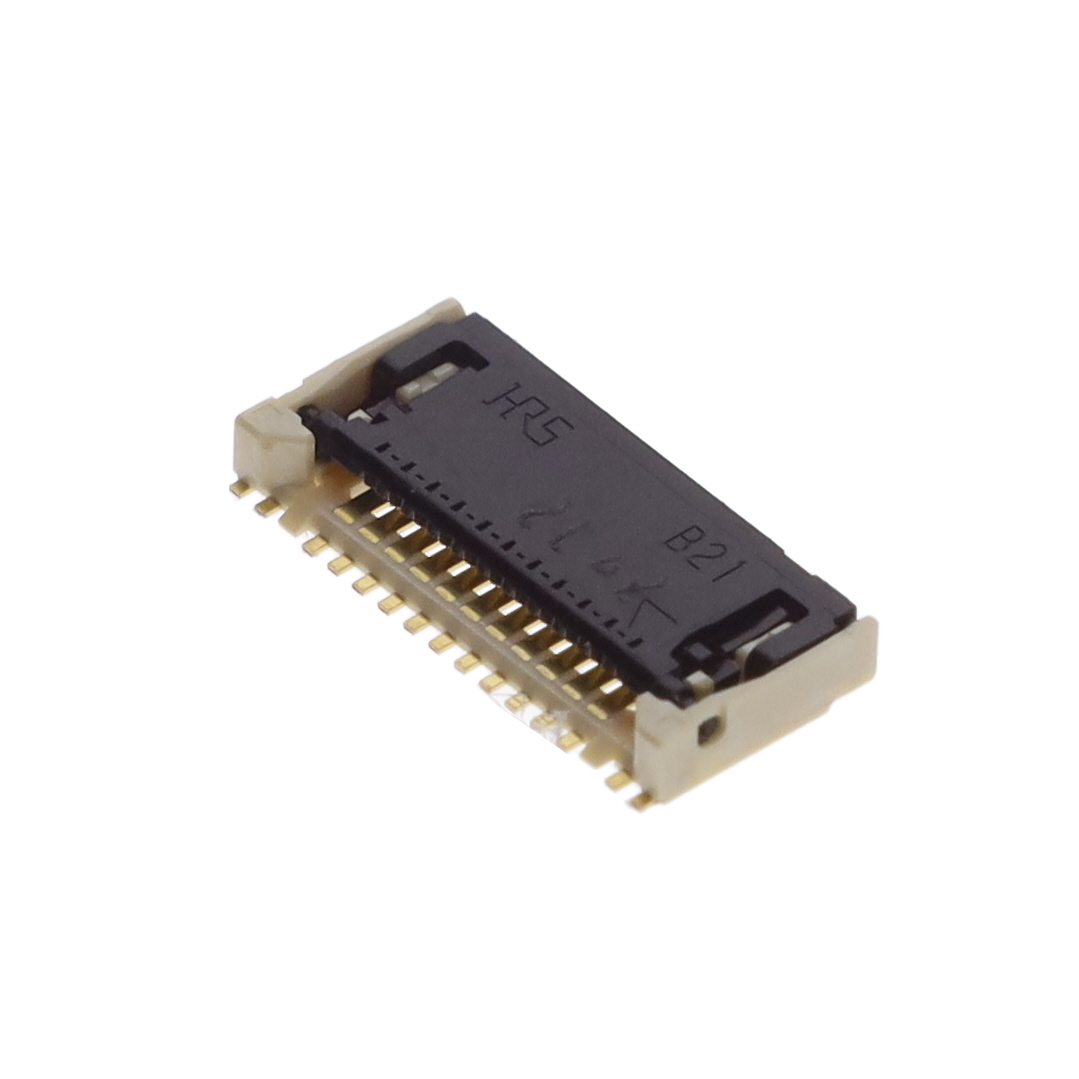

Hirose Electric Co Ltd FH62-21S-0.25SHW(10)	Beige	10	Black	0.25 A	1.97 Áin	0.05 Ám	Glass Filled Nylon Polyamide (PA)	Copper Alloy	Contacts Top	Solder	Right Angle Surface Mount	Liquid Crystal Polymer (LCP) Halogen Free	-55 C	85 °C	FPC	0.01 in	0.25 mm	Gold	Backlock Flip Lock	30 VDC	1.08 mm	0.043 in	21	UL94 V-0	0.3 mm	Notched
Hirose Electric Co Ltd FH62-55S-0.25SHW(99)	Beige	10	Black	0.25 A	1.97 Áin	0.05 Ám	Glass Filled Nylon Polyamide (PA)	Copper Alloy	Contacts Top	Solder	Right Angle Surface Mount	Liquid Crystal Polymer (LCP) Halogen Free	-55 C	85 °C	FPC	0.01 in	0.25 mm	Gold	Backlock Flip Lock	30 VDC	1.08 mm	0.043 in	55	UL94 V-0	0.3 mm	Notched

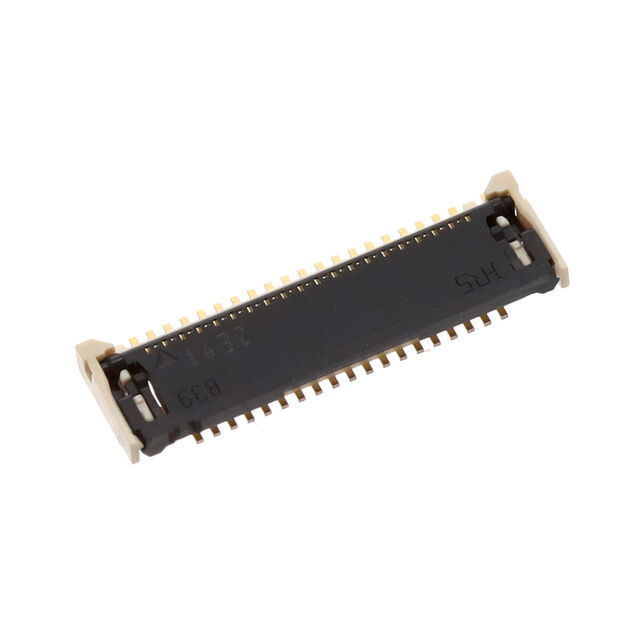

Hirose Electric Co Ltd FH62-39S-0.25SHW(99)	Beige	10	Black	0.25 A	1.97 Áin	0.05 Ám	Glass Filled Nylon Polyamide (PA)	Copper Alloy	Contacts Top	Solder	Right Angle Surface Mount	Liquid Crystal Polymer (LCP) Halogen Free	-55 C	85 °C	FPC	0.01 in	0.25 mm	Gold	Backlock Flip Lock	30 VDC	1.08 mm	0.043 in	39	UL94 V-0	0.3 mm	Notched
Hirose Electric Co Ltd FH62-55S-0.25SHW(10)	Beige	10	Black	0.25 A	1.97 Áin	0.05 Ám	Glass Filled Nylon Polyamide (PA)	Copper Alloy	Contacts Top	Solder	Right Angle Surface Mount	Liquid Crystal Polymer (LCP) Halogen Free	-55 C	85 °C	FPC	0.01 in	0.25 mm	Gold	Backlock Flip Lock	30 VDC	1.08 mm	0.043 in	55	UL94 V-0	0.3 mm	Notched
Hirose Electric Co Ltd FH62-17S-0.25SHW(10)	Beige	10	Black	0.25 A	1.97 Áin	0.05 Ám	Glass Filled Nylon Polyamide (PA)	Copper Alloy	Contacts Top	Solder	Right Angle Surface Mount	Liquid Crystal Polymer (LCP) Halogen Free	-55 C	85 °C	FPC	0.01 in	0.25 mm	Gold	Backlock Flip Lock	30 VDC	1.08 mm	0.043 in		UL94 V-0	0.3 mm	Notched

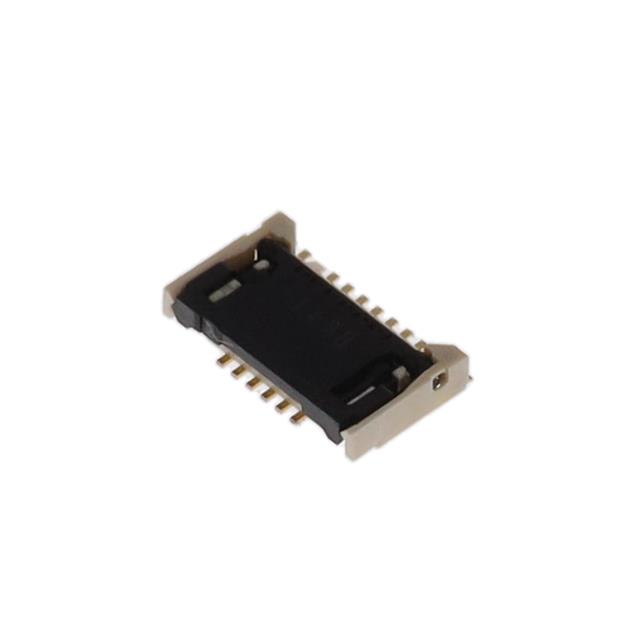

Hirose Electric Co Ltd FH62-13S-0.25SHW(10)	Beige	10	Black	0.25 A	1.97 Áin	0.05 Ám	Glass Filled Nylon Polyamide (PA)	Copper Alloy	Contacts Top	Solder	Right Angle Surface Mount	Liquid Crystal Polymer (LCP) Halogen Free	-55 C	85 °C	FPC	0.01 in	0.25 mm	Gold	Backlock Flip Lock	30 VDC	1.08 mm	0.043 in	13	UL94 V-0	0.3 mm	Notched

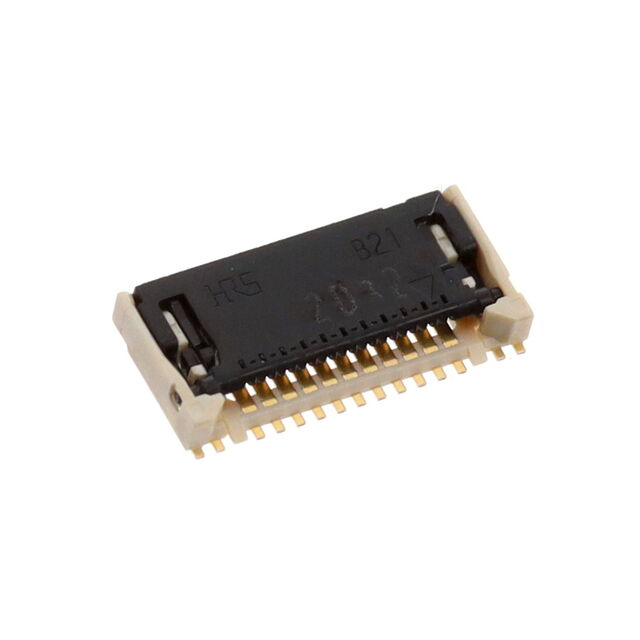

Hirose Electric Co Ltd FH62-21S-0.25SHW(99)	Beige	10	Black	0.25 A	1.97 Áin	0.05 Ám	Glass Filled Nylon Polyamide (PA)	Copper Alloy	Contacts Top	Solder	Right Angle Surface Mount	Liquid Crystal Polymer (LCP) Halogen Free	-55 C	85 °C	FPC	0.01 in	0.25 mm	Gold	Backlock Flip Lock	30 VDC	1.08 mm	0.043 in	21	UL94 V-0	0.3 mm	Notched

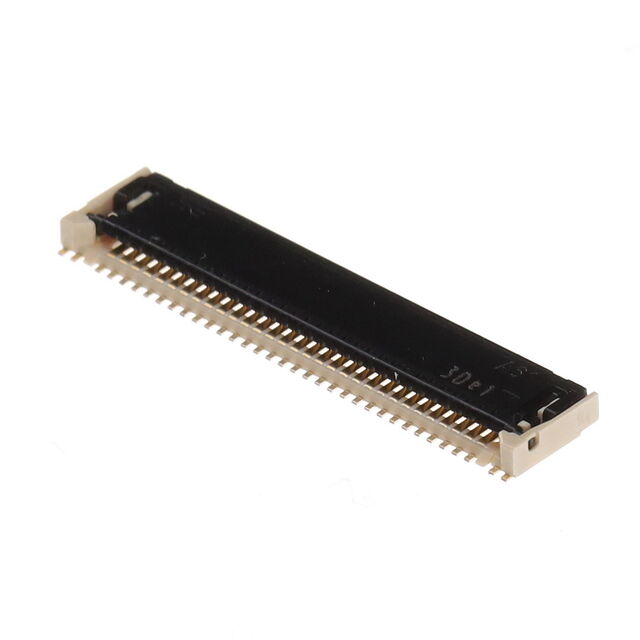

Hirose Electric Co Ltd FH62-61S-0.25SHW(10)	Beige	10	Black	0.25 A	1.97 Áin	0.05 Ám	Glass Filled Nylon Polyamide (PA)	Copper Alloy	Contacts Top	Solder	Right Angle Surface Mount	Liquid Crystal Polymer (LCP) Halogen Free	-55 C	85 °C	FPC	0.01 in	0.25 mm	Gold	Backlock Flip Lock	30 VDC	1.08 mm	0.043 in	61	UL94 V-0	0.3 mm	Notched
Hirose Electric Co Ltd FH62-31S-0.25SHW(10)	Beige	10	Black	0.25 A	1.97 Áin	0.05 Ám	Glass Filled Nylon Polyamide (PA)	Copper Alloy	Contacts Top	Solder	Right Angle Surface Mount	Liquid Crystal Polymer (LCP) Halogen Free	-55 C	85 °C	FPC	0.01 in	0.25 mm	Gold	Backlock Flip Lock	30 VDC	1.08 mm	0.043 in		UL94 V-0	0.3 mm	Notched	31
Hirose Electric Co Ltd FH62-41S-0.25SHW(10)	Beige	10	Black	0.25 A	1.97 Áin	0.05 Ám	Glass Filled Nylon Polyamide (PA)	Copper Alloy	Contacts Top	Solder	Right Angle Surface Mount	Liquid Crystal Polymer (LCP) Halogen Free	-55 C	85 °C	FPC	0.01 in	0.25 mm	Gold	Backlock Flip Lock	30 VDC	1.08 mm	0.043 in	41	UL94 V-0	0.3 mm	Notched
