DF40GB Series

Catalog

CONN RECEPTACLE SMD

Part	Connector Type	Number of Positions	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Contact Finish	Number of Rows [custom]	Mounting Type	Features	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Height Above Board
Hirose Electric Co Ltd DF40GB(3.0)-70DS-0.4V(61)	Receptacle Center Strip Contacts	70	3 mm
Hirose Electric Co Ltd DF40GB(3.0)-70DS-0.4V(51)	Receptacle Center Strip Contacts	70	3 mm	2.9 mm	0.114 in	Gold	2	Surface Mount	Shielded Solder Retention	0.4 mm	0.016 in

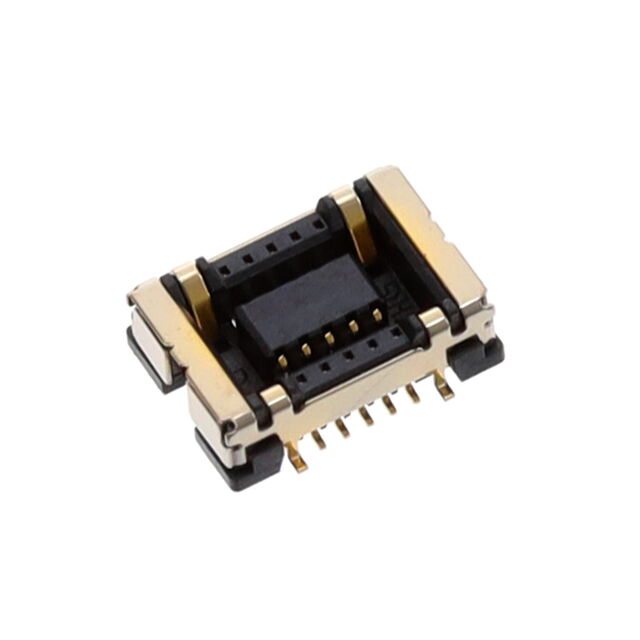

Hirose Electric Co Ltd DF40GB(1.5)-10DS-0.4V(58)	Receptacle Center Strip Contacts	10	1.5 mm	1.45 mm	0.057 in	Gold	2	Surface Mount	Shielded Solder Retention	0.4 mm	0.016 in	1.97 Áin	0.05 Ám

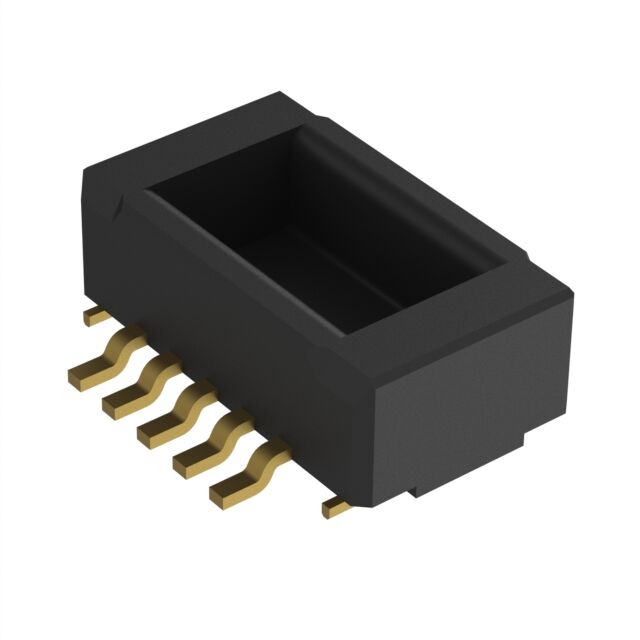

Hirose Electric Co Ltd DF40GB-10DP-0.4V(58)	Plug Outer Shroud Contacts	10	1.5 mm		0.045 in	Gold	2	Surface Mount	Shielded Solder Retention	0.4 mm	0.016 in	1.97 Áin	0.05 Ám	1.14 mm
Hirose Electric Co Ltd DF40GB-48DP-0.4V(51)	Plug Outer Shroud Contacts	48	1.5 mm 3 mm		0.045 in	Gold	2	Surface Mount	Shielded Solder Retention	0.4 mm	0.016 in			1.14 mm
Hirose Electric Co Ltd DF40GB-10DP-0.4V(51)	Plug Outer Shroud Contacts	10	1.5 mm		0.045 in	Gold	2	Surface Mount	Shielded Solder Retention	0.4 mm	0.016 in	1.97 Áin	0.05 Ám	1.14 mm

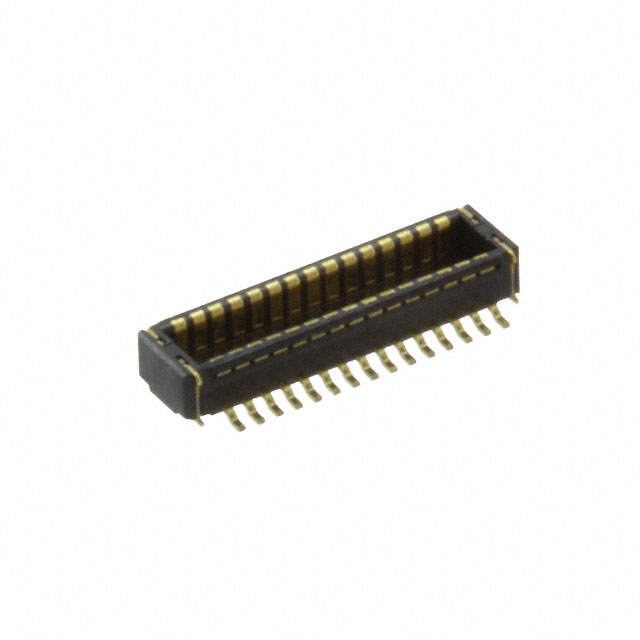

Hirose Electric Co Ltd DF40GB-30DP-0.4V(58)	Plug Outer Shroud Contacts	30	1.5 mm		0.045 in	Gold	2	Surface Mount	Shielded Solder Retention	0.4 mm	0.016 in			1.14 mm
Hirose Electric Co Ltd DF40GB(3.0)-70DS-0.4V(58)	Receptacle Center Strip Contacts	70	3 mm	2.9 mm	0.114 in	Gold	2	Surface Mount	Shielded Solder Retention	0.4 mm	0.016 in

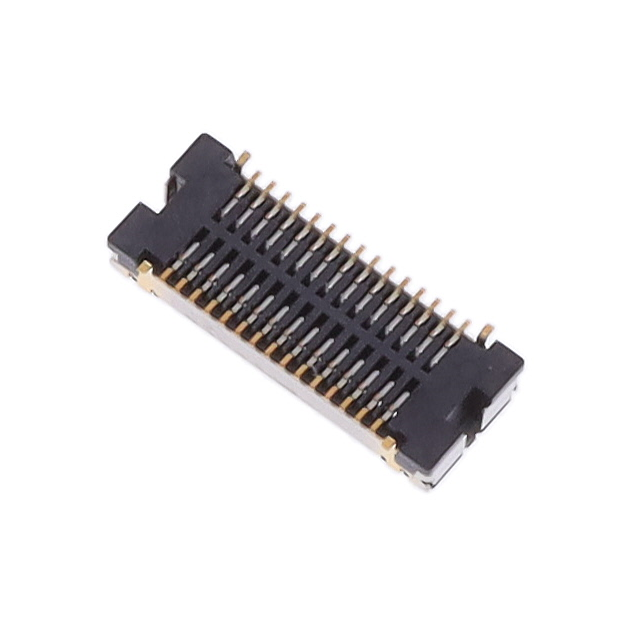

Hirose Electric Co Ltd DF40GB(1.5)-30DS-0.4V(51)	Receptacle Center Strip Contacts	30	1.5 mm	1.45 mm	0.057 in	Gold	2	Surface Mount	Shielded Solder Retention	0.4 mm	0.016 in
Hirose Electric Co Ltd DF40GB(1.5)-48DS-0.4V(51)	Receptacle Center Strip Contacts	48	1.5 mm	1.45 mm	0.057 in	Gold	2	Surface Mount	Shielded Solder Retention	0.4 mm	0.016 in
