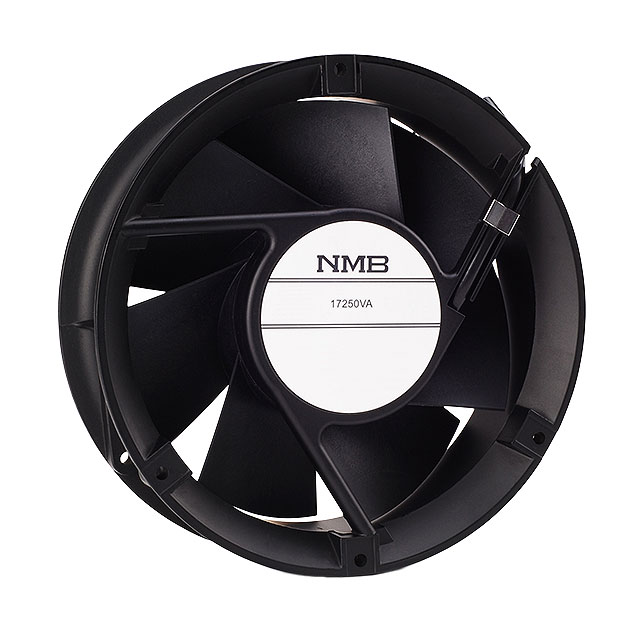

17250VA Series

Catalog

DC FANS DC TUBEAXIAL FAN, 172X50MM ROUND, 24VDC, 250CFM, FLANGE, BALL, LOCK SENSOR

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Air Flow	Air Flow	Features	Bearing Type	Termination	Noise	RPM	Voltage - Rated	Fan Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Static Pressure	Static Pressure	Power (Watts)	Width [y]	Size / Dimension	Approval Agency	Ingress Protection	Weight	Weight
NMB TECHNOLOGIES 17250VA-24M-EL-00	26.4 VDC	18 VDC	Aluminum	800 mA	100000 Hrs	Plastic	7.02 m³/min	250.7 CFM	Auto Restart Locked Rotor Sensor	Ball	3 Wire Leads	53 dB	3350 RPM	24 VDC	Tubeaxial	70 °C	-10 °C	172.7 mm	0.62 in H2O	154.4 Pa	19.2 W	50.8 mm
NMB TECHNOLOGIES 17250VA-48R-EU-01	52.8 VDC	38 VDC	Aluminum	900 mA	100000 Hrs	Plastic	9.69 m³/min	346.1 CFM	Auto Restart PWM Control Speed Sensor (Tach)	Ball	4 Wire Leads	62 dB(A)	4600 RPM	48 VDC	Tubeaxial	70 °C	-10 °C	172 mm	1.25 in H2O	312 Pa	43.2 W	50.8 mm	Round	CE cULus VDE
NMB TECHNOLOGIES 17250VA-48R-GA-00	52.8 VDC	38 VDC	Aluminum	900 mA		Plastic	9.69 m³/min	346.1 CFM		Ball	2 Wire Leads	62 dB(A)	4600 RPM	48 VDC	Tubeaxial	70 °C	-10 °C	172.7 mm	1.25 in H2O	312 Pa	43.2 W	50.8 mm			IP69K - Dust Tight High Temp Water Jets Waterproof	2.1 lb	952.5 g
NMB TECHNOLOGIES 17250VA-24P-ET-00							7.9 m³/min	282 CFM	Auto Restart Speed Sensor (Tach)	Ball	3 Wire Leads	56 dB	3750 RPM	24 VDC	Tubeaxial			172.7 mm	0.93 in H2O	231.7 Pa	26.4 W	50.8 mm
NMB TECHNOLOGIES 17250VA-24R-GA-00	26.4 VDC	18 VDC	Aluminum	1.8 A		Plastic	9.69 m³/min	346.1 CFM		Ball	2 Wire Leads	62 dB(A)	4600 RPM	24 VDC	Tubeaxial	70 °C	-10 °C	172.7 mm	1.25 in H2O	312 Pa	43.2 W	50.8 mm			IP69K - Dust Tight High Temp Water Jets Waterproof	2.1 lb	952.5 g
