896-096 Series
Manufacturer: EDAC Inc.
Beta
⌘K

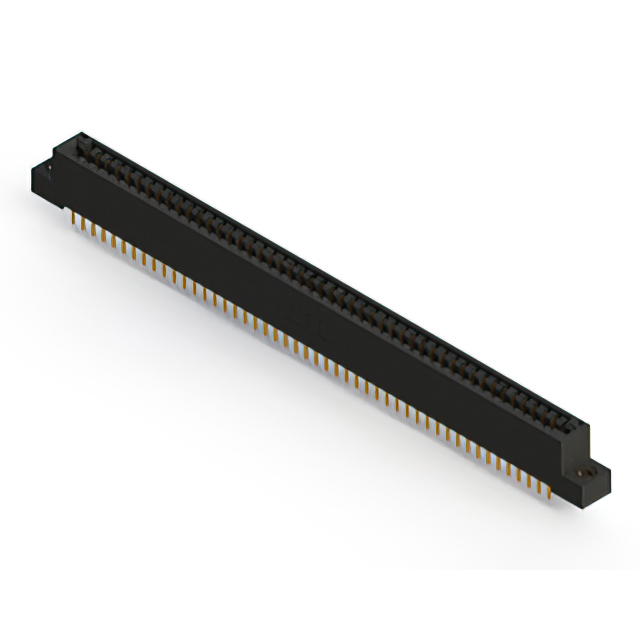

CONN EDGE DUAL FMALE 96POS 0.125
| Part | Termination Rows [custom] | Material - Insulation | Contact Finish | Mounting Type | Read Out | Card Thickness [Max] | Card Thickness [Min] | Termination | Card Type | Number of Positions/Bay/Row | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Gender | Contact Type | Pitch | Pitch | Color | Contact Material | Number of Positions | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Non Specified - Dual Edge | 48 | 125 °C | -40 C | 2 | 0.25 Ám | 10 Áin | Female | Cantilever | 3.18 mm | 0.125 in | Black | Copper Alloy | 96 | ||||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Non Specified - Dual Edge | 48 | 125 °C | -40 C | 2 | 0.25 Ám | 10 Áin | Female | Cantilever | 3.18 mm | 0.125 in | Black | Copper Alloy | 96 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | Board Edge Straddle Mount | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Non Specified - Dual Edge | 48 | 125 °C | -40 C | 2 | 0.25 Ám | 10 Áin | Female | Cantilever | 3.18 mm | 0.125 in | Black | Copper Alloy | 96 | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Card Extender |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | Right Angle Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Non Specified - Dual Edge | 48 | 125 °C | -40 C | 2 | 0.25 Ám | 10 Áin | Female | Cantilever | 3.18 mm | 0.125 in | Black | Copper Alloy | 96 | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Non Specified - Dual Edge | 48 | 125 °C | -40 C | 2 | 0.25 Ám | 10 Áin | Female | Cantilever | 3.18 mm | 0.125 in | Black | Copper Alloy | 96 | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | Right Angle Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Non Specified - Dual Edge | 48 | 125 °C | -40 C | 2 | 0.25 Ám | 10 Áin | Female | Cantilever | 3.18 mm | 0.125 in | Black | Copper Alloy | 96 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | Board Edge Straddle Mount | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Non Specified - Dual Edge | 48 | 125 °C | -40 C | 2 | 0.25 Ám | 10 Áin | Female | Cantilever | 3.18 mm | 0.125 in | Black | Copper Alloy | 96 | Flush Mount M3 Threaded Insert Top Opening | Card Extender | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | Through Hole | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Non Specified - Dual Edge | 48 | 125 °C | -40 C | 2 | 0.25 Ám | 10 Áin | Female | Cantilever | 3.18 mm | 0.125 in | Black | Copper Alloy | 96 | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | Board Edge Straddle Mount | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Non Specified - Dual Edge | 48 | 125 °C | -40 C | 2 | 0.25 Ám | 10 Áin | Female | Cantilever | 3.18 mm | 0.125 in | Black | Copper Alloy | 96 | 0.128 " | 3.25 mm | Card Extender | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Gold | Board Edge Straddle Mount | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Non Specified - Dual Edge | 48 | 125 °C | -40 C | 2 | 0.25 Ám | 10 Áin | Female | Cantilever | 3.18 mm | 0.125 in | Black | Copper Alloy | 96 | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Card Extender |
