DF57H Series

Catalog

CONNECTOR

Part	Contact Finish - Post	Contact Material	Contact Shape	Material Flammability Rating	Termination	Current Rating (Amps)	Number of Rows	Mounting Type	Number of Positions Loaded	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Voltage Rating	Connector Type	Contact Type	Insulation Material	Number of Positions	Style	Fastening Type	Features	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Note	Pitch	Pitch	Color	Contact Termination
Hirose Electric Co Ltd DF57H-3P-1.2V(22)
Hirose Electric Co Ltd DF57H-6P-1.2V(62)

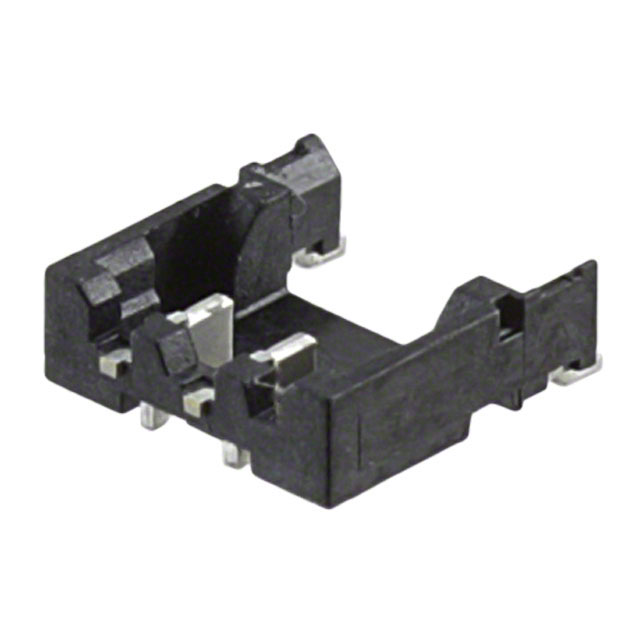

Hirose Electric Co Ltd DF57H-2P-1.2V(51)	Tin	Brass	Rectangular	UL94 V-0	Solder	Varies by Wire Gauge	1	Surface Mount	All	Unshrouded	-55 C	125 °C	Black	0.055 in	1.4 mm	1.2 mm	0.047 in	100 VAC	Header	Male Blade	Liquid Crystal Polymer (LCP)	2	Board to Cable/Wire	Swing Lock

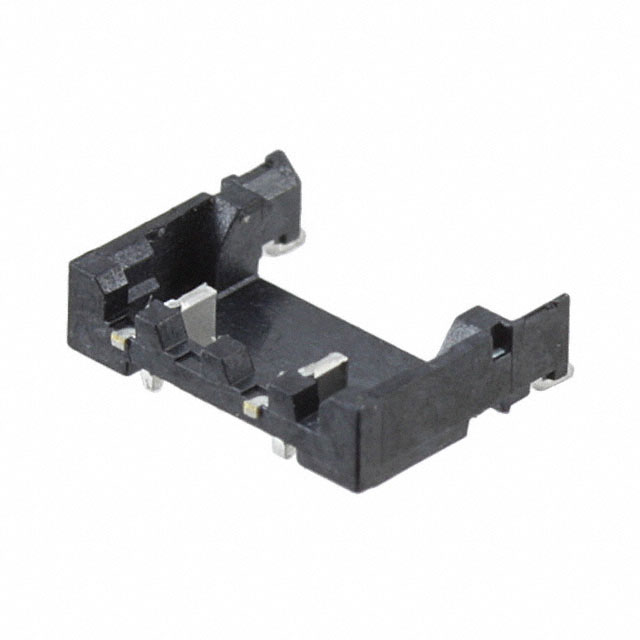

Hirose Electric Co Ltd DF57H-2P-2.4V(21)	Tin	Brass	Rectangular	UL94 V-0	Solder		1	Surface Mount	All	Unshrouded	-35 °C	85 °C	Black	0.055 in	1.4 mm	2.4 mm	0.094 in		Header	Male Blade	Liquid Crystal Polymer (LCP)	2	Board to Cable/Wire	Swing Lock	Solder Retention	39.4 µin	1 µm

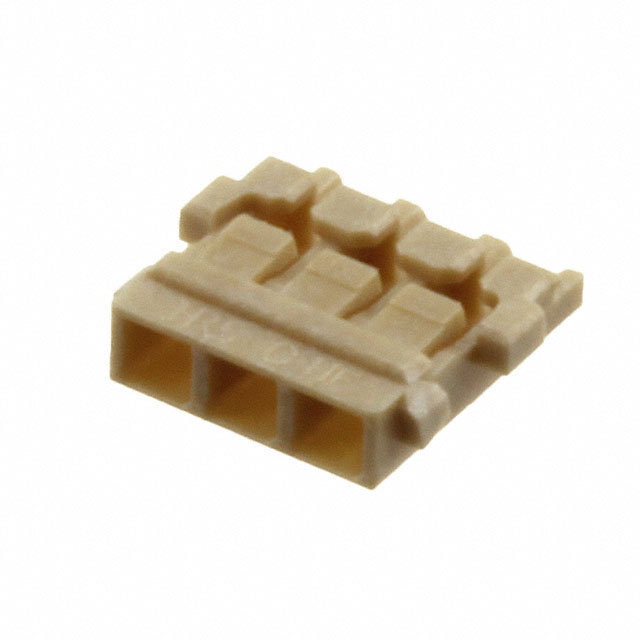

Hirose Electric Co Ltd DF57H-3S-1.2C(08)							1	Free Hanging (In-Line)			-35 °C	85 °C							Receptacle	Female Socket	Liquid Crystal Polymer (LCP)			Swing Lock				Contacts Not Included	0.047 in	1.2 mm	Natural	Crimp

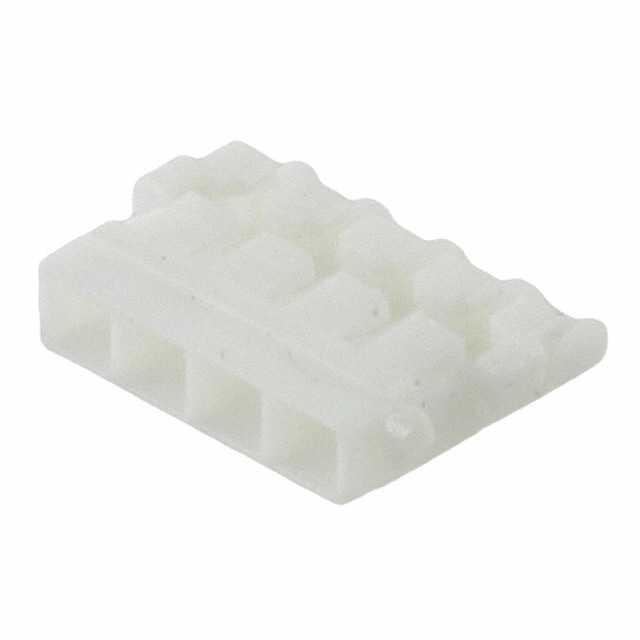

Hirose Electric Co Ltd DF57H-4S-1.2C							1	Free Hanging (In-Line)			-35 °C	85 °C							Receptacle	Female Socket	Polybutylene Terephthalate (PBT)	4		Swing Lock				Contacts Not Included	0.047 in	1.2 mm	White	Crimp
Hirose Electric Co Ltd DF57H-6P-1.2V(23)	Tin	Brass	Rectangular	UL94 V-0	Solder		1	Surface Mount	All	Unshrouded	-55 C	125 °C	Beige	0.055 in	1.4 mm	1.2 mm	0.047 in		Header	Male Pin	Liquid Crystal Polymer (LCP)	6	Board to Cable/Wire	Swing Lock

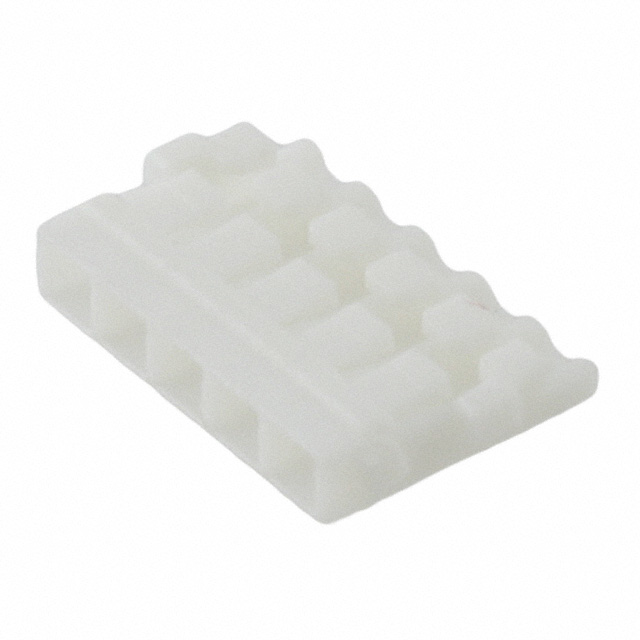

Hirose Electric Co Ltd DF57H-5S-1.2C							1	Free Hanging (In-Line)			-35 °C	85 °C							Receptacle	Female Socket	Polybutylene Terephthalate (PBT)	5		Swing Lock				Contacts Not Included	0.047 in	1.2 mm	White	Crimp

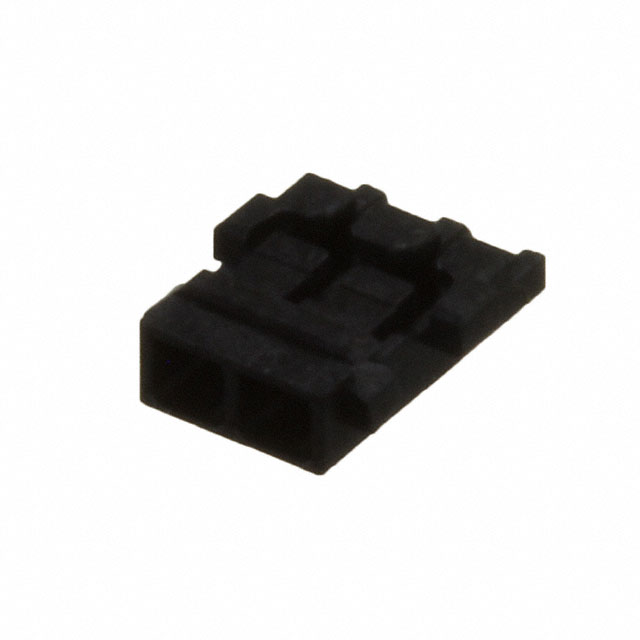

Hirose Electric Co Ltd DF57H-2S-1.2C(15)							1	Free Hanging (In-Line)			-35 °C	85 °C							Receptacle	Female Socket	Liquid Crystal Polymer (LCP)	2		Swing Lock				Contacts Not Included	0.047 in	1.2 mm	Black	Crimp

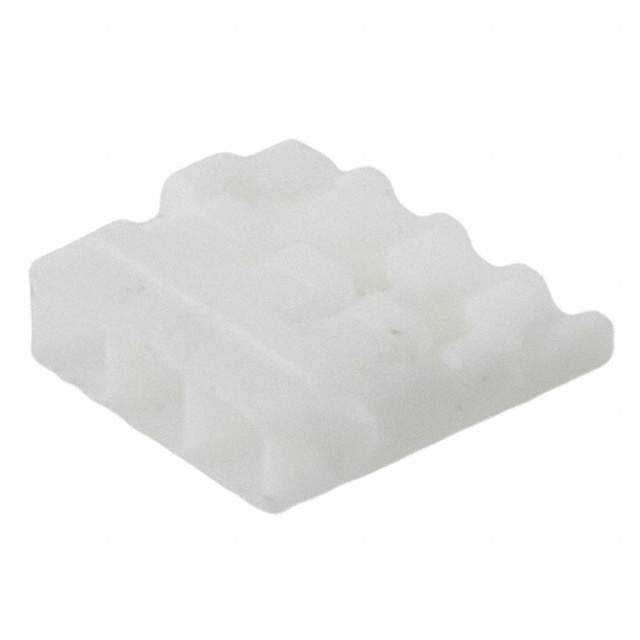

Hirose Electric Co Ltd DF57H-3S-1.2C							1	Free Hanging (In-Line)			-35 °C	85 °C							Receptacle	Female Socket	Polybutylene Terephthalate (PBT)			Swing Lock				Contacts Not Included	0.047 in	1.2 mm	White	Crimp
