A3C-12DA Series

Catalog

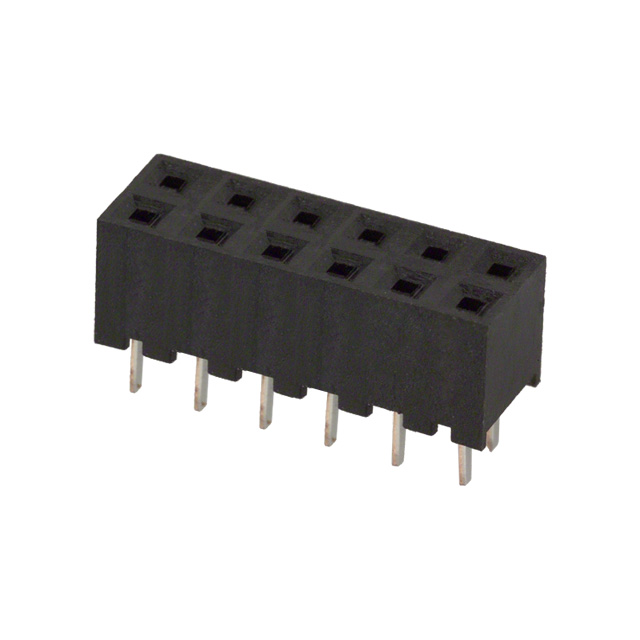

CONN RCPT 12POS 0.079 GOLD PCB

Part	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Material	Termination	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Number of Positions	Contact Finish - Mating	Mounting Type	Voltage Rating	Number of Rows [custom]	Contact Finish - Post	Insulation Color	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Connector Type	Contact Length - Post	Contact Length - Post	Contact Type	Insulation Height	Insulation Height	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Mated Stacking Heights	Contact Length - Post
Hirose Electric Co Ltd A3C-12DA-2DSC	Polybutylene Terephthalate (PBT)	Square	39.4 çin	1 çm	General Purpose Telecommunications	Phosphor Bronze	Solder	Push-Pull	8 µin	0.203 µm	-55 C	85 °C	Board to Board Cable	12	Gold	Through Hole	200 VAC	2	Tin	Black	All	0.079 "	2 mm	Receptacle	2 mm	0.079 in	Female Socket	0.165 in	4.2 mm	UL94 V-0	2 mm	0.079 in	5.1 mm 6 mm
Hirose Electric Co Ltd A3C-12DA-2DSA	Polybutylene Terephthalate (PBT)	Square	39.4 çin	1 çm	General Purpose Telecommunications	Phosphor Bronze	Solder	Push-Pull	8 µin	0.203 µm	-55 C	85 °C	Board to Board Cable	12	Gold	Through Hole	200 VAC	2	Tin	Black	All	0.079 "	2 mm	Receptacle		3 mm	Female Socket	0.165 in	4.2 mm	UL94 V-0	2 mm	0.079 in	5.1 mm 6 mm	0.118 in
Hirose Electric Co Ltd A3C-12DA-2DSA(71)	Polybutylene Terephthalate (PBT)	Square	39.4 çin	1 çm	General Purpose Telecommunications	Phosphor Bronze	Solder	Push-Pull	8 µin	0.203 µm	-55 C	85 °C	Board to Board Cable	12	Gold	Through Hole	200 VAC	2	Tin	Black	All	0.079 "	2 mm	Receptacle		3 mm	Female Socket	0.165 in	4.2 mm	UL94 V-0	2 mm	0.079 in	5.1 mm 6 mm	0.118 in
Hirose Electric Co Ltd A3C-12DA-2DSC(71)	Polybutylene Terephthalate (PBT)	Square	39.4 çin	1 çm	General Purpose Telecommunications	Phosphor Bronze	Solder	Push-Pull	8 µin	0.203 µm	-55 C	85 °C	Board to Board Cable	12	Gold	Through Hole	200 VAC	2	Tin	Black	All	0.079 "	2 mm	Receptacle	2 mm	0.079 in	Female Socket	0.165 in	4.2 mm	UL94 V-0	2 mm	0.079 in	5.1 mm 6 mm
