11LC161 Series

Catalog

2.5V UNI/O® SERIAL EEPROM WITH 16KB OF MEMORY AND ALTERNATE DEVICE ADDRESS 0XA1

Part	Memory Size	Package Length	Package Name	Package Width	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Memory Type	Technology	Operating Temperature (Max)	Operating Temperature (Min)	Write Cycle Time - Word	Write Cycle Time - Page	Memory Interface (Type)	Memory Width	Memory Depth	Memory Format	Clock Frequency	Mounting Type	Package / Case
Microchip Technology 11LC161-E/SN	2 KB	0.154 in	8-SOIC	3.9 mm	2.5 V	5.5 V	Non-Volatile	EEPROM	125 °C	-40 °C	5 ms	5 ms	Single Wire	8 bit	2 K	EEPROM	100 kHz	Surface Mount

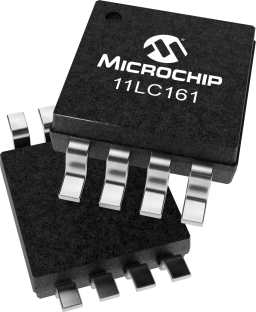

Microchip Technology 11LC161-I/MS	2 KB	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	2.5 V	5.5 V	Non-Volatile	EEPROM	85 °C	-40 °C	5 ms	5 ms	Single Wire	8 bit	2 K	EEPROM	100 kHz	Surface Mount
Microchip Technology 11LC161-I/TO	2 KB		TO-92-3		2.5 V	5.5 V	Non-Volatile	EEPROM	85 °C	-40 °C	5 ms	5 ms	Single Wire	8 bit	2 K	EEPROM	100 kHz	Through Hole	TO-226-3 TO-92-3 (TO-226AA)
Microchip Technology 11LC161T-I/TT	2 KB		SOT-23-3		2.5 V	5.5 V	Non-Volatile	EEPROM	85 °C	-40 °C	5 ms	5 ms	Single Wire	8 bit	2 K	EEPROM	100 kHz	Surface Mount	SC-59 SOT-23-3 TO-236-3
Microchip Technology 11LC161-I/SN	2 KB	0.154 in	8-SOIC	3.9 mm	2.5 V	5.5 V	Non-Volatile	EEPROM	85 °C	-40 °C	5 ms	5 ms	Single Wire	8 bit	2 K	EEPROM	100 kHz	Surface Mount
Microchip Technology 11LC161T-I/MNY	2 KB	2 mm	8-TDFN	3 mm	2.5 V	5.5 V	Non-Volatile	EEPROM	85 °C	-40 °C	5 ms	5 ms	Single Wire	8 bit	2 K	EEPROM	100 kHz	Surface Mount	8-WFDFN Exposed Pad
Microchip Technology 11LC161T-E/MS	2 KB	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	2.5 V	5.5 V	Non-Volatile	EEPROM	125 °C	-40 °C	5 ms	5 ms	Single Wire	8 bit	2 K	EEPROM	100 kHz	Surface Mount
Microchip Technology 11LC161-I/P	2 KB	0.3 in	8-DIP 8-PDIP	7.62 mm	2.5 V	5.5 V	Non-Volatile	EEPROM	85 °C	-40 °C	5 ms	5 ms	Single Wire	8 bit	2 K	EEPROM	100 kHz	Through Hole
Microchip Technology 11LC161-E/P	2 KB	0.3 in	8-DIP 8-PDIP	7.62 mm	2.5 V	5.5 V	Non-Volatile	EEPROM	125 °C	-40 °C	5 ms	5 ms	Single Wire	8 bit	2 K	EEPROM	100 kHz	Through Hole
Microchip Technology 11LC161T-E/SN	2 KB	0.154 in	8-SOIC	3.9 mm	2.5 V	5.5 V	Non-Volatile	EEPROM	125 °C	-40 °C	5 ms	5 ms	Single Wire	8 bit	2 K	EEPROM	100 kHz	Surface Mount
