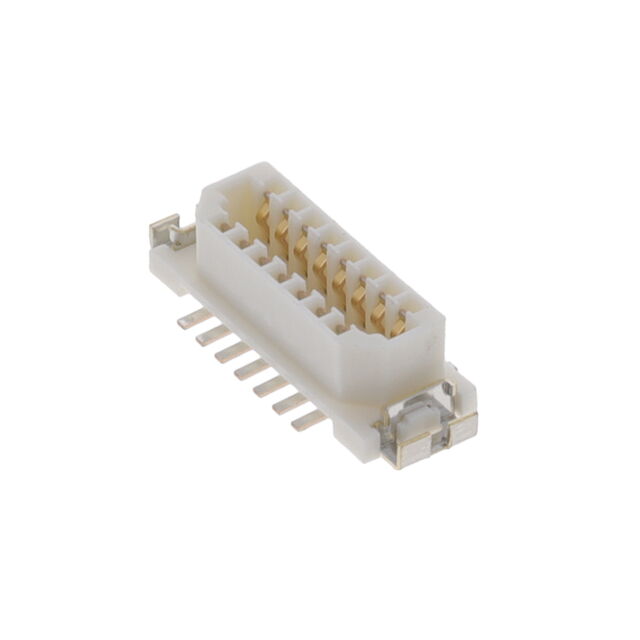

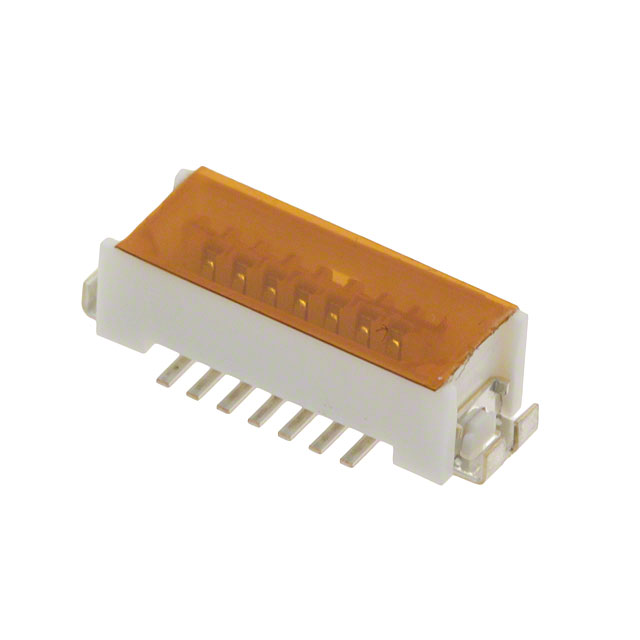

DF9-15S Series
Manufacturer: Hirose Electric USA, Inc.
Beta
⌘K
1.0MM PITCH SMT BOARD TO BOARD CONNECTORS (COMPLIANT WITH VESA FPDI-1)
| Part | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Mounting Type | Pitch [x] | Pitch [x] | Height Above Board | Height Above Board | Features | Number of Positions | Mated Stacking Heights [z] | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric USA, Inc. | Gold | 8 çin | 0.203 çm | 2 | Surface Mount | 0.039 in | 1 mm | 0.13 in | 3.3 mm | Board Guide Solder Retention | 15 | 4.3 mm | Receptacle Outer Shroud Contacts |
 Hirose Electric USA, Inc. | Tin | 39.4 Áin | 1 Ám | 2 | Surface Mount | 0.039 in | 1 mm | 0.13 in | 3.3 mm | Board Guide Solder Retention | 15 | 4.3 mm | Receptacle Outer Shroud Contacts |
