HRM-202 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN SMA PLUG STR 50OHM SOLDER
| Part | Body Material | Insertion Loss | Center Contact Plating | Includes | Mating Cycles | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Connector Style | Mounting Type | Frequency - Max [Max] | Center Contact Material | Connector Type | Contact Termination | Cable Group | Shield Termination | Housing Color | Number of Ports | Impedance | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

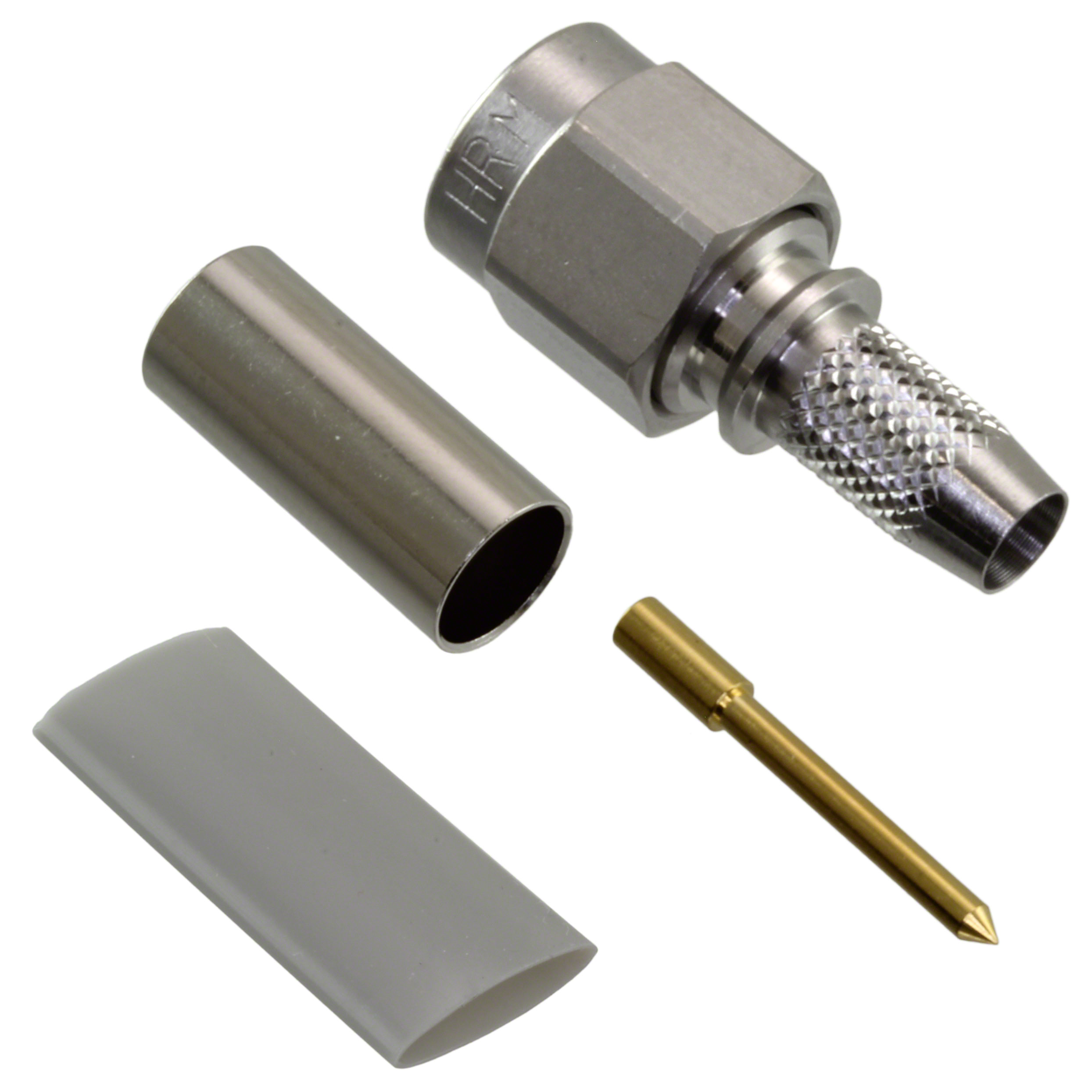

 Hirose Electric Co Ltd | Stainless Steel | 0.1 dB | Gold | 1 Connector 1 Heat Shrink | 1000 | Polytetrafluoroethylene (PTFE) | 85 °C | -30 ░C | Threaded | SMA | Free Hanging (In-Line) | 12.4 GHz | Brass | Plug Male Pin | Solder | 142B RG-55 | Crimp | Silver | 1 | 50 Ohms | |
 Hirose Electric Co Ltd | |||||||||||||||||||||
Hirose Electric Co Ltd | |||||||||||||||||||||

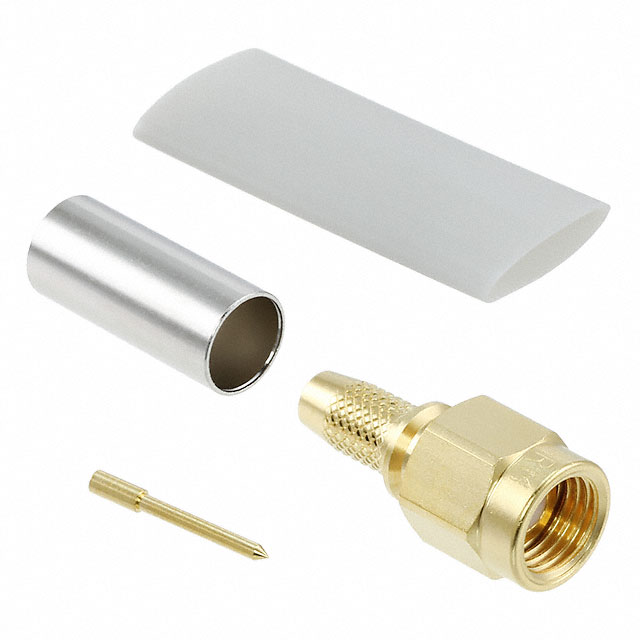

 Hirose Electric Co Ltd | Stainless Steel | 0.1 dB | Gold | 1 Connector 1 Heat Shrink | 1000 | Polytetrafluoroethylene (PTFE) | 85 °C | -30 ░C | Threaded | SMA | Free Hanging (In-Line) | 12.4 GHz | Brass | Plug Male Pin | Solder | RG-142B | Crimp | Gold | 1 | 50 Ohms | Gold |
Hirose Electric Co Ltd |
