TMDC 06 Series

Catalog

ISOLATED DC/DC CONVERTERS - CHASSIS MOUNT 6W 80-160VIN 12V 500MA CHASSIS MNT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Type	Current - Output (Max) [Max]	Power (Watts)	Approval Agency	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Voltage - Input (Min) [Min]	Mounting Type	Voltage - Isolation	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Output 2	Current - Output (Max)
Traco Power TMDC 06-7212H	-40 °C	93 °C	ITE (Commercial)	Enclosed	500 mA	6 W	CB CE cURus	83 %	26.5 mm	34 mm	2.09 in	1.04 in	1.34 in	53 mm	1	80 V	Chassis Mount	3000 V	12 V	160 V
Traco Power TMDC 06-7223H	-40 °C	93 °C	ITE (Commercial)	Enclosed		6 W	CB CE cURus	84 %	26.5 mm	34 mm	2.09 in	1.04 in	1.34 in	53 mm	2	80 V	Chassis Mount	3000 V	15 V	160 V	-15 V
Traco Power TMDC 06-7215H	-40 °C	93 °C	ITE (Commercial)	Enclosed	250 mA	6 W	CB CE cURus	84 %	26.5 mm	34 mm	2.09 in	1.04 in	1.34 in	53 mm	1	80 V	Chassis Mount	3000 V	24 V	160 V
Traco Power TMDC 06-7225H	-40 °C	93 °C	ITE (Commercial)	Enclosed		6 W	CB CE cURus	83 %	26.5 mm	34 mm	2.09 in	1.04 in	1.34 in	53 mm	2	80 V	Chassis Mount	3000 V	24 V	160 V	-24 V	125 mA
Traco Power TMDC 06-7222H	-40 °C	93 °C	ITE (Commercial)	Enclosed		6 W	CB CE cURus	84 %	26.5 mm	34 mm	2.09 in	1.04 in	1.34 in	53 mm	2	80 V	Chassis Mount	3000 V	12 V	160 V	-12 V	250 mA

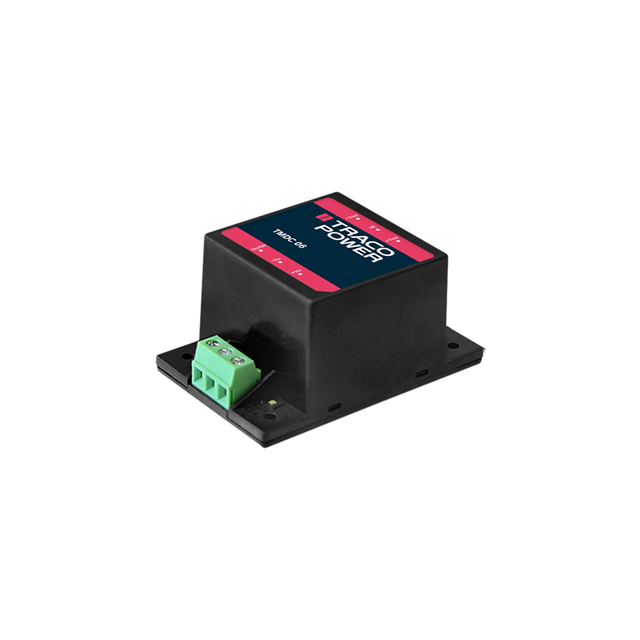

Traco Power TMDC 06-2425	-40 °C	92.5 °C	ITE (Commercial)	Enclosed		6 W	CB CE cURus	84 %	26.5 mm	34 mm	2.09 in	1.04 in	1.34 in	53 mm	2	9 V	Chassis Mount	3000 V	24 V	36 V	-24 V	125 mA
