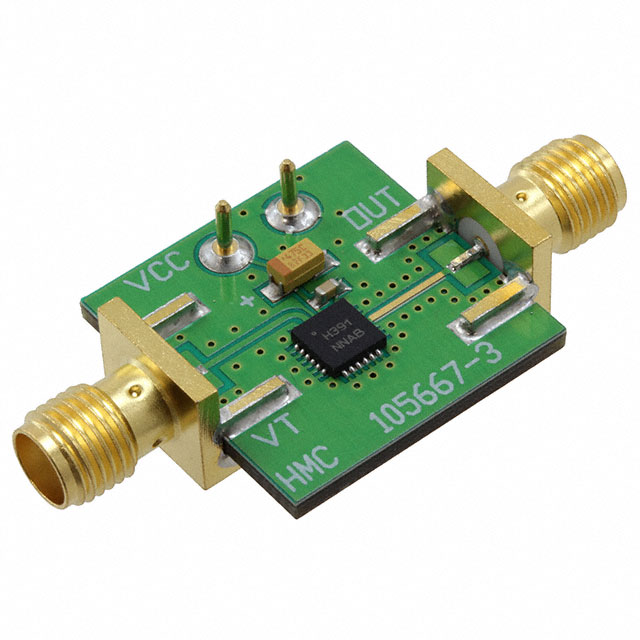

VCO SMT w/Buffer Amplifier, 3.9 - 4.45 GHz
Key Features
• Pout: +5 dBm
• Phase Noise: -106 dBc/Hz @100 KHz
• No External Resonator Needed
• Single Supply: +3V @ 30 mA
• QFN Leadless SMT Package, 16 mm2
Description
AI
The HMC391LP4(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCOs with integrated resonators, negative resistance devices, varactor diodes, and buffer amplifiers. Covering 3.9 to 4.45 GHz, the VCO’s phase noise performance is excellent over temperature, shock, vibration and process due to the oscillator’s monolithic structure. Power output is 5 dBm typical from a single supply of +3V @ 30mA. The voltage controlled oscillator is packaged in a low cost leadless QFN 4×4 mm surface mount package.APPLICATIONSVSAT & Microwave RadioRadio AltimetryTest Equipment & Industrial ControlsMilitary
