ADG836 Series

Catalog

IC SWITCH SPDTX2 650MOHM 10MSOP

Part	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	-3db Bandwidth	Switch Circuit	Channel-to-Channel Matching (ΔRon)	On-State Resistance (Max) [Max]	Supplier Device Package	Current - Leakage (IS(off)) (Max)	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Multiplexer/Demultiplexer Circuit	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Circuits	Package / Case	Package / Case [x]	Package / Case [x]	Mounting Type	Charge Injection
Analog Devices ADG836YRM-REEL7	26 ns	7 ns	57 MHz	SPDT	40 mOhm	650 mOhm	10-MSOP	200 pA	1.65 V	3.6 V	2:1	25 pF	25 pF	-40 °C	125 °C	2	10-MSOP 10-TFSOP	3 mm	0.118 in	Surface Mount	40 pC
Analog Devices ADG836YRMZ-REEL	26 ns	7 ns	57 MHz	SPDT	40 mOhm	650 mOhm	10-MSOP	200 pA	1.65 V	3.6 V	2:1	25 pF	25 pF	-40 °C	125 °C	2	10-MSOP 10-TFSOP	3 mm	0.118 in	Surface Mount	40 pC

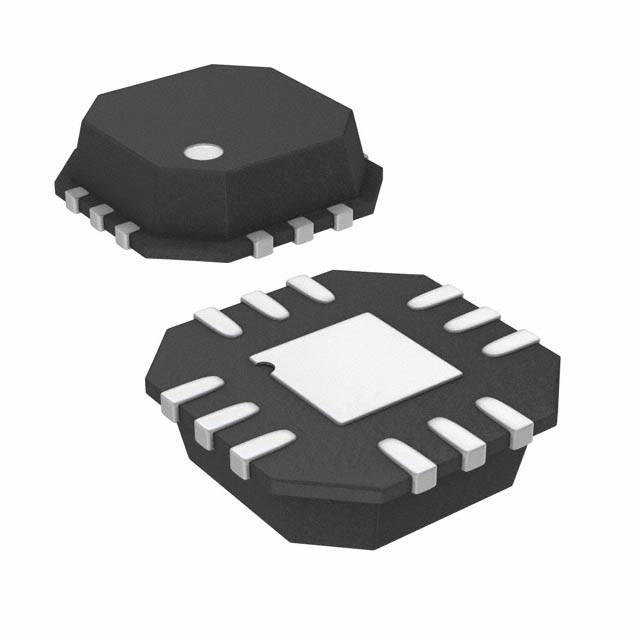

Analog Devices ADG836YCP-REEL							12-LFCSP-VQ (3x3)										12-VFQFN Exposed Pad CSP			Surface Mount
Analog Devices ADG836YRM-REEL	26 ns	7 ns	57 MHz	SPDT	40 mOhm	650 mOhm	10-MSOP	200 pA	1.65 V	3.6 V	2:1	25 pF	25 pF	-40 °C	125 °C	2	10-MSOP 10-TFSOP	3 mm	0.118 in	Surface Mount	40 pC
Analog Devices ADG836YCP-REEL7							12-LFCSP-VQ (3x3)										12-VFQFN Exposed Pad CSP			Surface Mount
