PC730-2C Series

Catalog

RELAY GEN PURPOSE DPDT 30A 24V

Part	Coil Resistance	Coil Type	Switching Voltage AC (Max)	Switching Voltage DC (Max)	Load - Max Switching (Apparent Power)	Load - Max Switching (Real Power)	Mounting Type	Operate Time	Coil Current	Must Release Voltage	Release Time	Contact Form	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Rating (Current)	Approval Agency	Coil Insulation	Quick Connect Size (0.250")	Termination Style	Relay Type	Coil Voltage	Must Operate Voltage

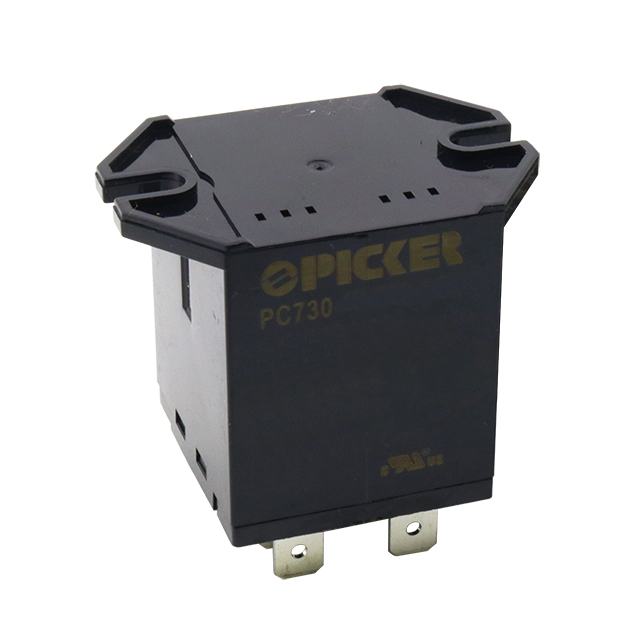

Picker Components PC730-2C-C3-24D	288 Ohms	Non Latching	330 VAC	36 VDC	9900 VA	1080 W	Chassis Mount	25 ms	83.3 mA	2 VDC	15 ms	2 2 Form C C DPDT Form	Silver Cadmium Oxide (AgCdO)	-25 °C	55 °C	30 A	cUL cURus UL	Class B	0.25 in	Quick Connect	General Purpose	24 VDC	18 VDC

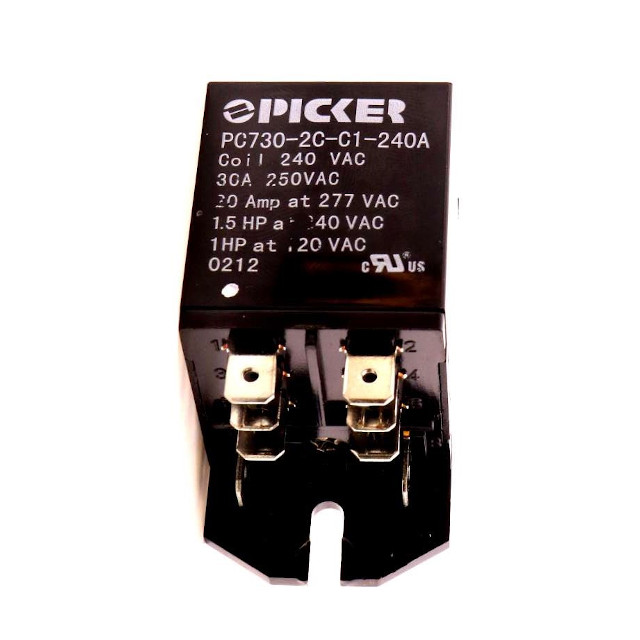

Picker Components PC730-2C-C1-240A	4.82 kOhms	Non Latching	330 VAC	36 VDC	9900 VA	1080 W	Chassis Mount	25 ms	49.8 mA	72 V	15 ms	2 2 Form C C DPDT Form	Silver Cadmium Oxide (AgCdO)	-25 °C	55 °C	30 A	cUL cURus UL	Class B	0.25 in	Quick Connect	General Purpose	240 V	192 VDC

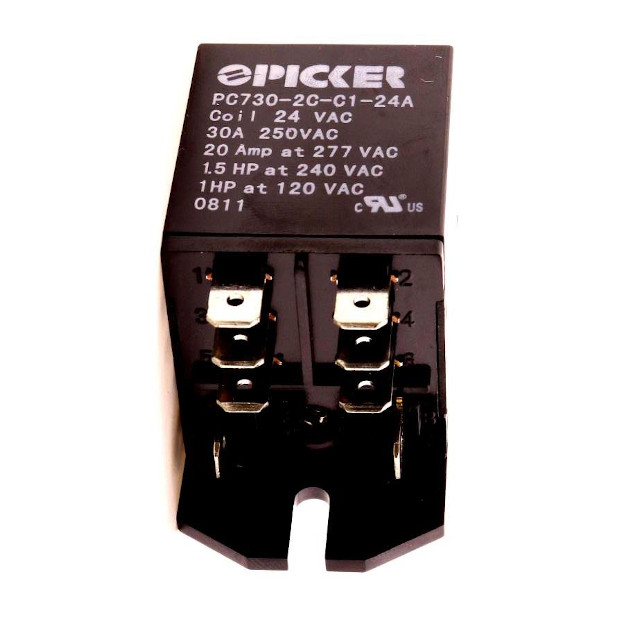

Picker Components PC730-2C-C1-24A	48 Ohms	Non Latching	330 VAC	36 VDC	9900 VA	1080 W	Chassis Mount	25 ms	500 mA	7 VDC	15 ms	2 2 Form C C DPDT Form	Silver Cadmium Oxide (AgCdO)	-25 °C	55 °C	30 A	cUL cURus UL	Class B	0.25 in	Quick Connect	General Purpose	24 VDC	19 VDC

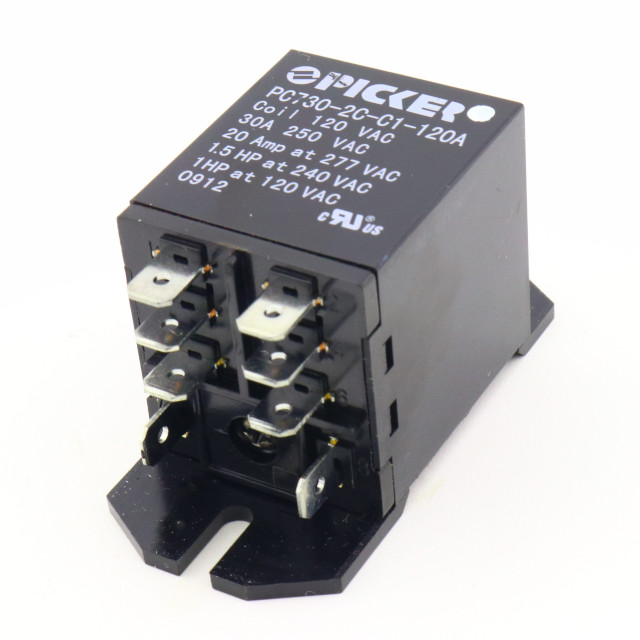

Picker Components PC730-2C-C1-120A	1.21 kOhms	Non Latching	330 VAC	36 VDC	9900 VA	1080 W	Chassis Mount	25 ms	99.5 mA	36 VDC	15 ms	2 2 Form C C DPDT Form	Silver Cadmium Oxide (AgCdO)	-25 °C	55 °C	30 A	cUL cURus UL	Class B	0.25 in	Quick Connect	General Purpose	120 V	96 V

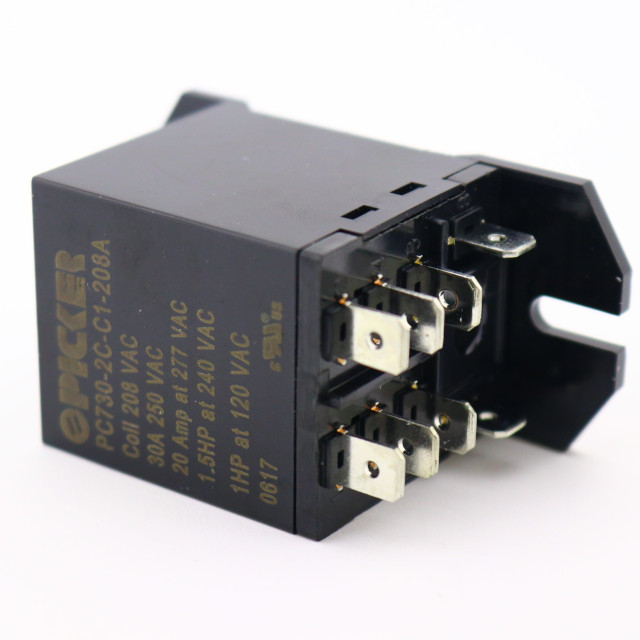

Picker Components PC730-2C-C1-208A	3.62 kOhms	Non Latching	330 VAC	36 VDC	9900 VA	1080 W	Chassis Mount	25 ms	57.4 mA	62 VAC	15 ms	2 2 Form C C DPDT Form	Silver Cadmium Oxide (AgCdO)	-25 °C	55 °C	30 A	cUL cURus UL	Class B	0.25 in	Quick Connect	General Purpose	208 VAC	166 VAC
