C0515 Series
Manufacturer: Prysmian Group
Beta
⌘K

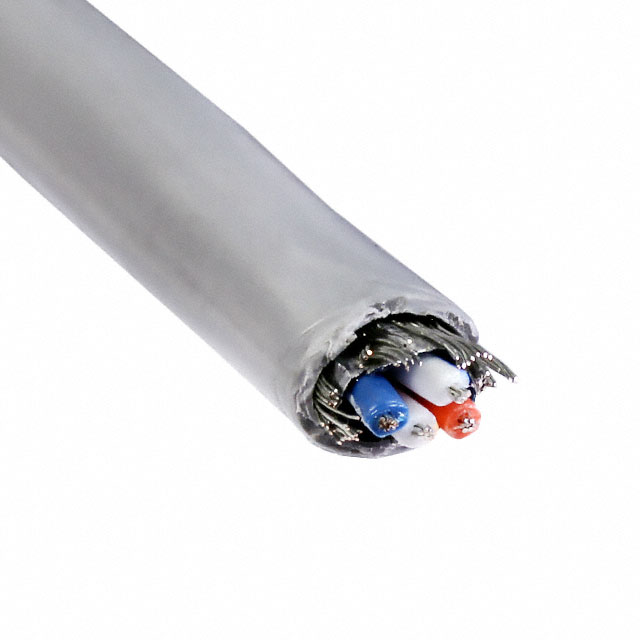

MULTI-PAIR 4CON 24AWG GRAY
| Part | Number of Conductors | Ratings | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Cable Type | Conductor Material | Features | Voltage | Usage | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Shield Coverage | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 4 | UL Style 2919 | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 7.01 mm | 0.276 in | 15.24 m 304.8 m | 50 ft 1000 ft | 24 AWG | 0.813 mm | 0.032 in | Polypropylene (PP) | Multi-Pair | Copper Annealed Tinned | Low Capacitance | 30 V | Computer | Gray | 7 | 32 AWG | Braid Foil | ||
Prysmian Group | 4 | UL Style 2919 | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 7.01 mm | 0.276 in | 152.4 m 304.8 m | 500 ft 1000 ft | 24 AWG | 0.813 mm | 0.032 in | Polypropylene (PP) | Multi-Pair | Copper Annealed Tinned | Low Capacitance | 30 V | Computer | Gray | 7 | 32 AWG | Braid Foil | 65 % 100 % | Copper Flexfoil® Tinned |
 Prysmian Group | 4 | UL Style 2919 | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 7.01 mm | 0.276 in | 152.4 m | 500 ft | 24 AWG | 0.813 mm | 0.032 in | Polypropylene (PP) | Multi-Pair | Copper Annealed Tinned | Low Capacitance | 30 V | Computer | Gray | 7 | 32 AWG | Braid Foil | 65 % 100 % | Copper Flexfoil® Tinned |
