RM15QPS Series

Catalog

CONN PLUG MALE 2P SILV SLDR CUP

Part	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Fastening Type	Insert Material	Color	Current Rating (Amps)	Features	Orientation	Material Flammability Rating	Contact Finish - Mating	Voltage Rating	Number of Positions	Shell Material	Contact Material	Mounting Type	Shell Size - Insert [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening	Cable Opening	Primary Material	Backshell Material, Plating	Shielding	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]

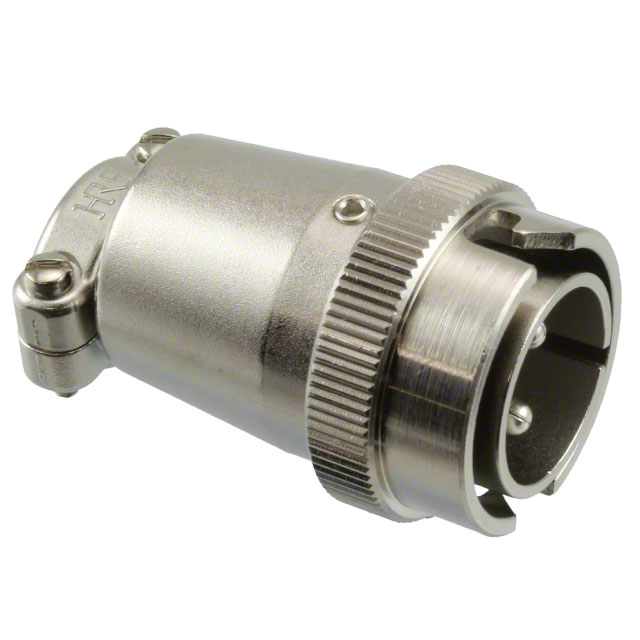

Hirose Electric Co Ltd RM15QPS-2PA(71)	Plug Male Pins	78.7 µin	2 µm	Nickel	Push-Twist	Diallyl Phthalate (DAP)	Silver	10 A	Backshell Cable Clamp Coupling Nut	Keyed	UL94 V-0	Silver	600 VAC 840 VDC	2	Zinc Alloy	Copper Alloy	Free Hanging (In-Line)	15	85 °C	-25 °C	11.3 mm	0.445 "	Metal	Nickel Zinc Alloy
Hirose Electric Co Ltd RM15QPS-8S(81)	Plug Female Sockets			Nickel	Push-Twist	Diallyl Phthalate (DAP)	Silver	5 A	Backshell Cable Clamp Coupling Nut	Keyed	UL94 V-0	Silver	500 VAC 700 VDC	8	Zinc Alloy	Copper Alloy	Free Hanging (In-Line)	15	85 °C	-25 °C			Metal		Unshielded	0.453 in	0.256 in	6.5 mm	11.5 mm

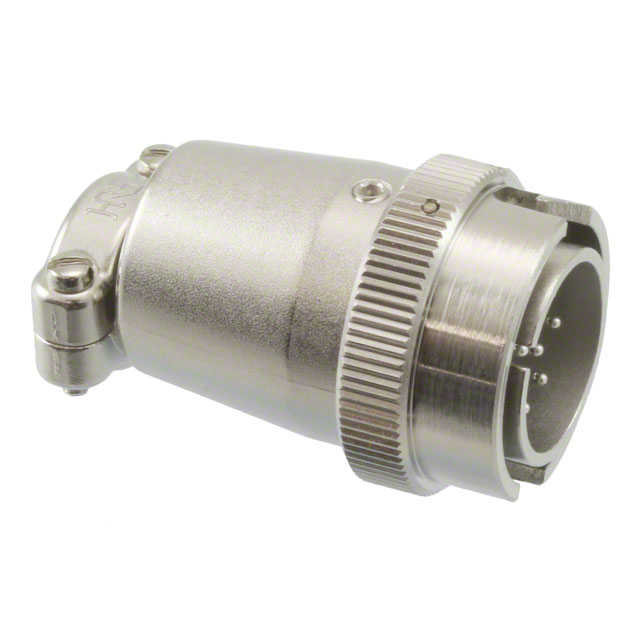

Hirose Electric Co Ltd RM15QPS-10PH(71)	Plug Male Pins	78.7 µin	2 µm	Nickel	Push-Twist	Diallyl Phthalate (DAP)	Silver	5 A	Backshell Cable Clamp Coupling Nut	Keyed	UL94 V-0	Silver	350 VAC 490 VDC	10	Zinc Alloy	Copper Alloy	Free Hanging (In-Line)	15	85 °C	-25 °C	11.3 mm	0.445 "	Metal	Nickel Zinc Alloy

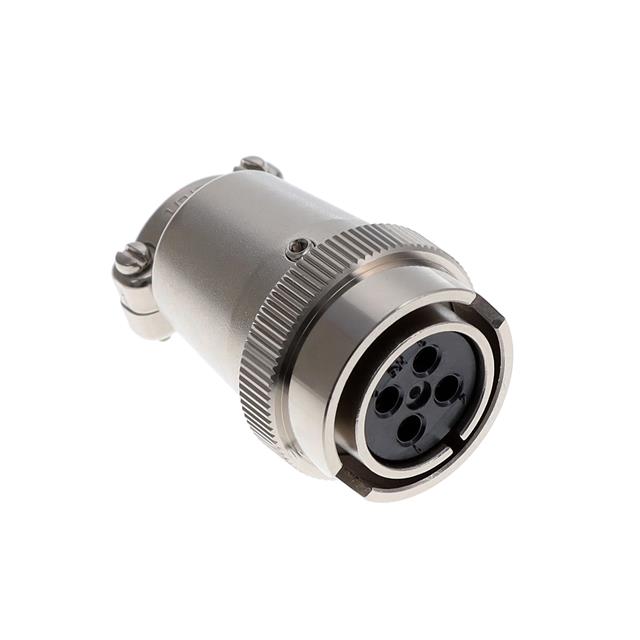

Hirose Electric Co Ltd RM15QPS-4SA	Plug Female Sockets				Push-Twist			10 A		Keyed			500 VAC 700 VDC	4			Free Hanging (In-Line)	15	85 °C	-25 °C
Hirose Electric Co Ltd RM15QPS-8S(76)	Plug Female Sockets				Push-Twist		Silver	5 A	Backshell Cable Clamp Coupling Nut	Keyed	UL94 V-0	Silver	500 VAC 700 VDC	8			Free Hanging (In-Line)	15	85 °C	-25 °C					Unshielded	0.315 in	0.197 in	5 mm		8 mm
Hirose Electric Co Ltd RM15QPS-12S(76)	Plug Female Sockets				Push-Twist		Silver	5 A	Backshell Cable Clamp Coupling Nut	Keyed	UL94 V-0	Silver	350 VAC 490 VDC	12			Free Hanging (In-Line)	15	85 °C	-25 °C					Unshielded	0.315 in	0.197 in	5 mm		8 mm
