17N1R78213 Series
Manufacturer: Portescap
Beta
⌘K

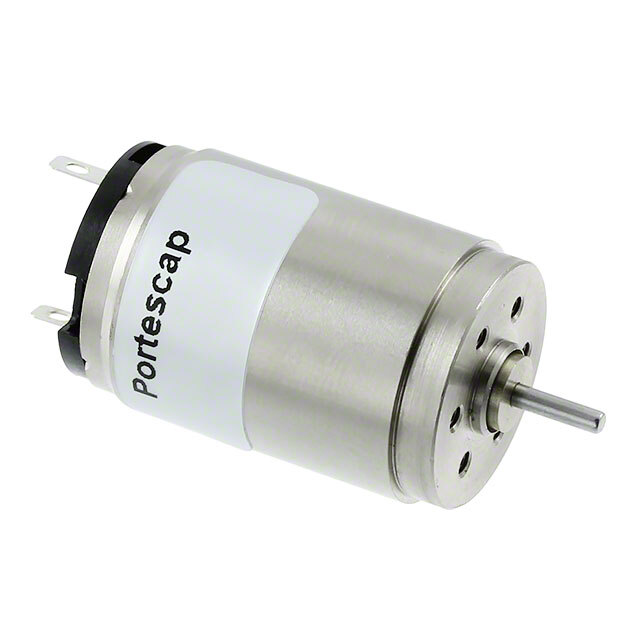

STANDARD MOTOR 10000 RPM 7.5V
| Part | Weight [custom] | Weight [custom] | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension | Size / Dimension [diameter] | Size / Dimension [diameter] | Type | Length - Shaft and Bearing | Length - Shaft and Bearing [x] | Function | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Power - Rated | Voltage - Rated | Motor Type | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 27.22 g | 0.06 lb | Solder Tab | 85 °C | -30 ░C | Round | 0.669 in | 17 mm | DC Motor | 7.5 mm | 0.295 " | Standard | 1.5 mm | 0.059 in | 0.754 oz-in | 5.33 mNm | 3.2 W | 7.5 VDC | Brushed | 10 mm | 0.394 in | 10000 RPM |
