PIC64GX1000 Series

64-bit RISC-V® Quad-Core Processor With Asymmetric Multi-Processing and Deterministic Real-Time Processing

Catalog

64-bit RISC-V® Quad-Core Processor With Asymmetric Multi-Processing and Deterministic Real-Time Processing

Part	Package / Case	RAM Controllers	USB	Co-Processors/DSP	Ethernet	Ethernet	Graphics Acceleration	Operating Temperature [Max]	Operating Temperature [Min]	Security Features	Additional Interfaces	Voltage - I/O	Mounting Type	Supplier Device Package	Display & Interface Controllers	Speed	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]	Core Processor

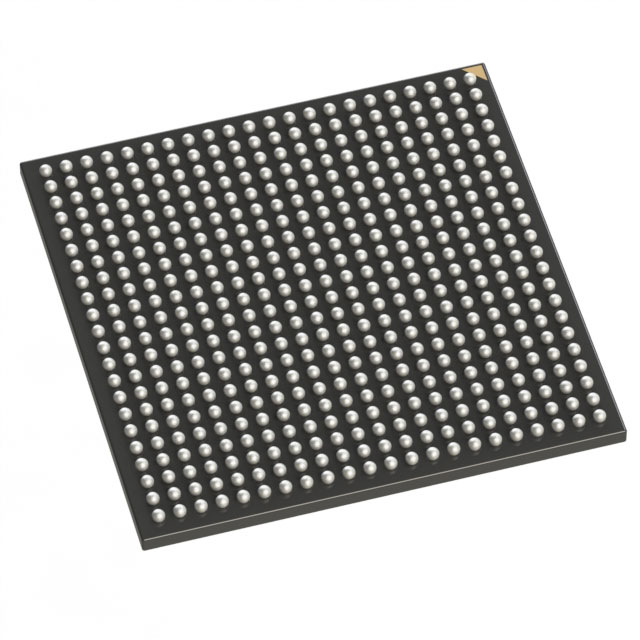

Microchip Technology PIC64GX1000-V/FCV	484-BFBGA	DDR4 LPDDR4	USB 2.0 OTG (1)	RV64IMAC	10 Mbps 100 Mbps 1000 Mbps	2		100 °C	-40 C	AES Boot Security Cryptography SHA TRNG	CANbus DMA GPIO I2C MMC/SD PCIe QSPI SPI UART/USART	1.2 V 1.5 V 1.8 V 2.5 V 3.3 V	Surface Mount	484-FBGA (19x19)	HDMI MIPI-CSI2	625 MHz	64 Bit	4	RV64GC
Microchip Technology PIC64GX1000-C/FCS	325-TFBGA	DDR4 LPDDR4	USB 2.0 OTG (1)	RV64IMAC	10 Mbps 100 Mbps 1000 Mbps	2		100 °C	0 °C	AES Boot Security Cryptography SHA TRNG	CANbus DMA GPIO I2C MMC/SD PCIe QSPI SPI UART/USART	1.2 V 1.5 V 1.8 V 2.5 V 3.3 V	Surface Mount	325-CSPBGA (11x11)	HDMI MIPI-CSI2	625 MHz	64 Bit	4	RV64GC

Catalog

64-bit RISC-V® Quad-Core Processor With Asymmetric Multi-Processing and Deterministic Real-Time Processing

Key Features

- Linux® Operating System (OS)-capable five-stage quad-core processor and monitor processor (600 MHz) with AMP and deterministic latencies

- Quad 600 MHz RISC-V® application cores (U54)

- Single 600 MHZ 64-bit RV64IMAC monitor processor core (E51)

- PMP unit

- Flexible 2 MB L2 memory subsystem with SECDED configurable as:

- 128 KB of user Nonvolatile Memory (NVM) for boot Flash

- 56 KB of secure NVM for user data and key storage

- Integrated 36-bit DDR4/LPDDR4 memory controller with SECDED

- MultiMedia Card (MMC) 5.1, SD, SDIO

- USB 2.0 OTG

- GPIO

- SGMII

- PCIe® Gen 2

- 256-bit AES/SHA, TRNG, HMAC, RSA, ECDSA

- Built-in tamper detectors and countermeasures

- DPA protection

- Standard secure boot and user-defined secure boot

- Spectre and Meltdown immunity

- Physical memory protection

- SECDED on all memories

- Two-lane MIPI CSI-2 at 1 Gbps for connection to cameras and sensors

- Video pipeline with debayer, automatic white balance and color correction

- Linux build systems

- Linux4Microchip

- Canonical® Ubuntu® OS

- Zephyr® RTOS

Description

The PIC64GX microprocessor (MPU) is a 64-bit Linux® Operating System (OS)-capable processor that provides an innovative, mid-range, embedded compute platform that is based on the RISC-V® Instruction Set Architecture (ISA). The PIC64GX MPU’s micro-architecture implementation is a simple, five-stage, single-issue, in-order pipeline that is not vulnerable to the Meltdown and Spectre exploits that frequently occur in common, out-of-order machines. The PIC64GX has five RISC-V cores which are coherent with the memory subsystem, allowing a versatile mix of deterministic real-time systems and Linux in a single, multi-core processor cluster. With integrated secure boot, Linux and Real-Time modes, a large and flexible L2 memory subsystem and a rich set of embedded peripherals, the PIC64GX MPU provides new choices for developing secure and power-efficient embedded compute platforms.
