LDLN015 Series
Manufacturer: STMicroelectronics
Beta
⌘K

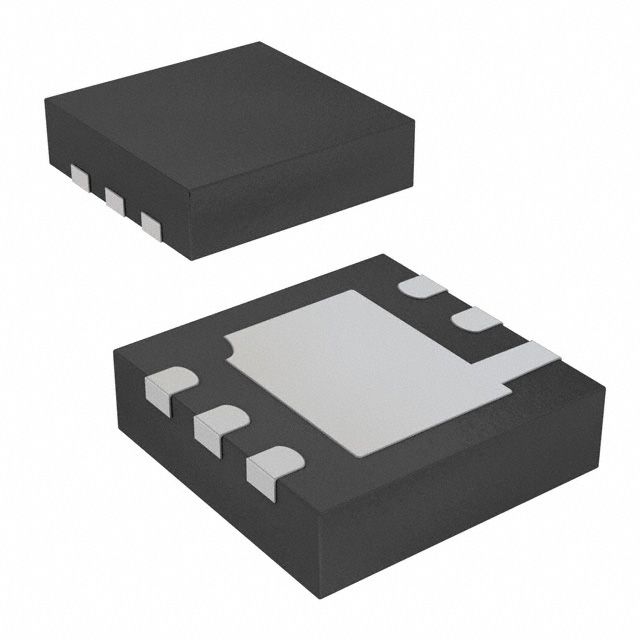

IC REG LINEAR 3.3V 150MA 6DFN
| Part | Voltage - Input (Max) [Max] | Voltage Dropout (Max) | Mounting Type | Protection Features | Current - Supply (Max) [Max] | Control Features | Supplier Device Package | Output Configuration | Current - Output | Current - Quiescent (Iq) | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | PSRR [Max] | PSRR [Min] | Voltage - Output (Min/Fixed) | Number of Regulators |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 5.5 V | 0.18 V | Surface Mount | Over Current Over Temperature | 120 µA | Enable | 6-DFN (2x2) | Positive | 150 mA | 60 µA | 6-UFDFN Exposed Pad | 125 °C | -40 C | 92 dB | 50 dB | 3.3 V | 1 |
STMicroelectronics | 5.5 V | Surface Mount | Over Current Over Temperature | 120 µA | Enable | 6-DFN (2x2) | Positive | 150 mA | 60 µA | 6-UFDFN Exposed Pad | 125 °C | -40 C | 92 dB | 50 dB | 1 V | 1 | |
STMicroelectronics | 5.5 V | 0.18 V | Surface Mount | Over Current Over Temperature | 120 µA | Enable | 6-DFN (2x2) | Positive | 150 mA | 60 µA | 6-UFDFN Exposed Pad | 125 °C | -40 C | 92 dB | 50 dB | 2.5 V | 1 |
