HIF3F Series

Catalog

CONN HEADER VERT 50POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Finish - Post	Connector Type	Number of Positions	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Type	Insulation Color	Mounting Type	Insulation Height	Insulation Height	Contact Shape	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Voltage Rating	Style	Number of Positions [custom]	Insulation Height

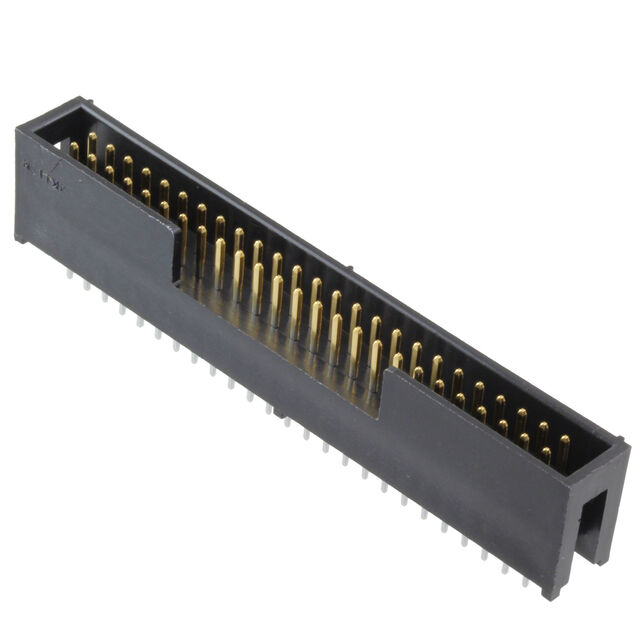

Hirose Electric Co Ltd HIF3F-50PA-2.54DSA(71)	78.7 µin	2 µm	Tin	Header	50	6 mm	0.236 in	Latch Holder	Male Pin	Black	Through Hole	13.9 mm	0.547 in	Square	Keying Slot	0.1 in	2.54 mm	All	8 µin	0.203 µm	Shrouded - 4 Wall	15.8 mm	0.622 in	Gold	Brass	0.1 "	2.54 mm	2	Polybutylene Terephthalate (PBT)	-55 C	85 °C	Solder	UL94 V-0	0.13 "	3.3 mm	200 V	Board to Cable/Wire

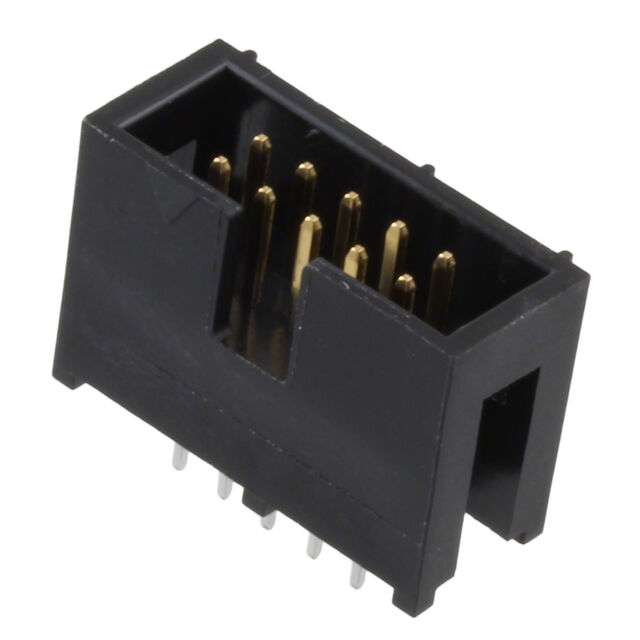

Hirose Electric Co Ltd HIF3F-10PA-2.54DSA(71)	78.7 µin	2 µm	Tin	Header	10	6 mm	0.236 in	Latch Holder	Male Pin	Black	Through Hole	13.9 mm	0.547 in	Square	Keying Slot	0.1 in	2.54 mm	All	8 µin	0.203 µm	Shrouded - 4 Wall	15.8 mm	0.622 in	Gold	Brass	0.1 "	2.54 mm	2	Polybutylene Terephthalate (PBT)	-55 C	85 °C	Solder	UL94 V-0	0.13 "	3.3 mm	200 V	Board to Cable/Wire
Hirose Electric Co Ltd HIF3F-20PA-2.54DSA(71)	78.7 µin	2 µm	Tin	Header	20	6 mm	0.236 in	Latch Holder	Male Pin	Black	Through Hole	13.9 mm	0.547 in	Square	Keying Slot	0.1 in	2.54 mm	All	8 µin	0.203 µm	Shrouded - 4 Wall	15.8 mm	0.622 in	Gold	Brass	0.1 "	2.54 mm	2	Polybutylene Terephthalate (PBT)	-55 C	85 °C	Solder	UL94 V-0	0.13 "	3.3 mm	200 V	Board to Cable/Wire

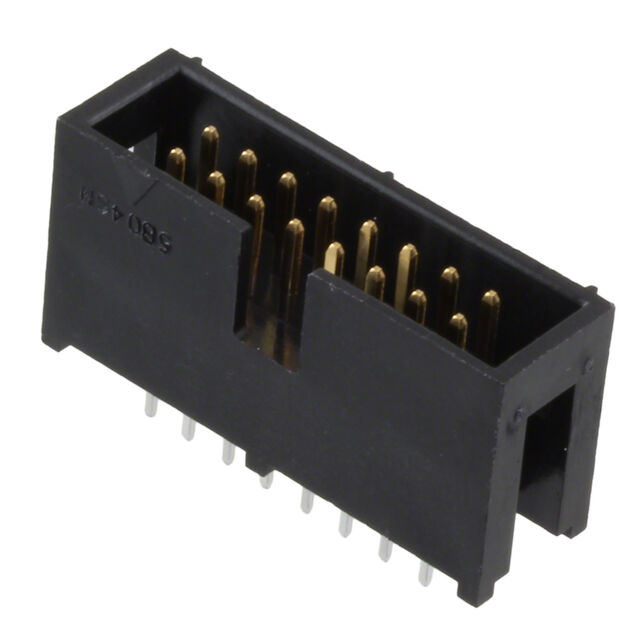

Hirose Electric Co Ltd HIF3F-16PA-2.54DSA(71)	78.7 µin	2 µm	Tin	Header	16	6 mm	0.236 in	Latch Holder	Male Pin	Black	Through Hole	13.9 mm	0.547 in	Square	Keying Slot	0.1 in	2.54 mm	All	8 µin	0.203 µm	Shrouded - 4 Wall	15.8 mm	0.622 in	Gold	Brass	0.1 "	2.54 mm	2	Polybutylene Terephthalate (PBT)	-55 C	85 °C	Solder	UL94 V-0	0.13 "	3.3 mm	200 V	Board to Cable/Wire
Hirose Electric Co Ltd HIF3F-34PA-2.54DSA(71)	78.7 µin	2 µm	Tin	Header		6 mm	0.236 in	Latch Holder	Male Pin	Black	Through Hole	13.9 mm	0.547 in	Square	Keying Slot	0.1 in	2.54 mm	All	8 µin	0.203 µm	Shrouded - 4 Wall	15.8 mm	0.622 in	Gold	Brass	0.1 "	2.54 mm	2	Polybutylene Terephthalate (PBT)	-55 C	85 °C	Solder	UL94 V-0	0.13 "	3.3 mm	200 V	Board to Cable/Wire	34
Hirose Electric Co Ltd HIF3F-40PA-2.54DS(71)	78.7 µin	2 µm	Tin	Header	40	6 mm	0.236 in	Latch Holder	Male Pin	Black	Right Angle Through Hole		8.51 mm	Square	Keying Slot	0.1 in	2.54 mm	All	8 µin	0.203 µm	Shrouded - 4 Wall			Gold	Brass	0.1 "	2.54 mm	2	Polybutylene Terephthalate (PBT)	-55 C	85 °C	Solder	UL94 V-0	0.118 in	3 mm	200 V	Board to Cable/Wire		0.335 "

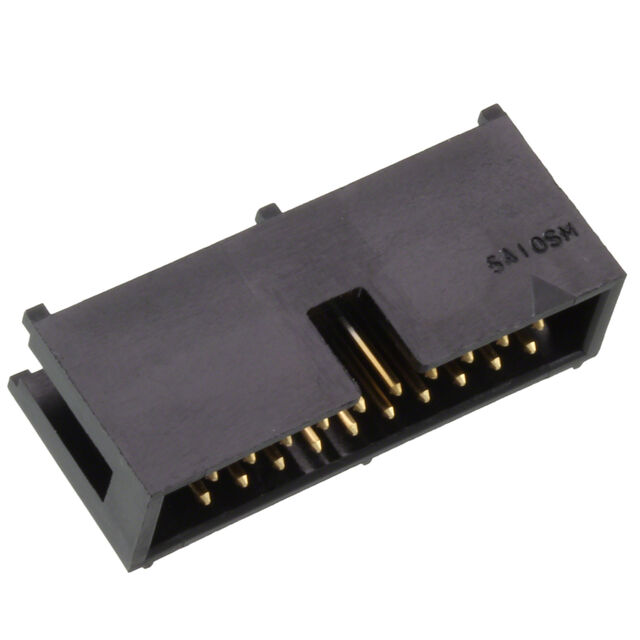

Hirose Electric Co Ltd HIF3F-20PA-2.54DS(71)	78.7 µin	2 µm	Tin	Header	20	6 mm	0.236 in	Latch Holder	Male Pin	Black	Right Angle Through Hole		8.51 mm	Square	Keying Slot	0.1 in	2.54 mm	All	8 µin	0.203 µm	Shrouded - 4 Wall			Gold	Brass	0.1 "	2.54 mm	2	Polybutylene Terephthalate (PBT)	-55 C	85 °C	Solder	UL94 V-0	0.118 in	3 mm	200 V	Board to Cable/Wire		0.335 "

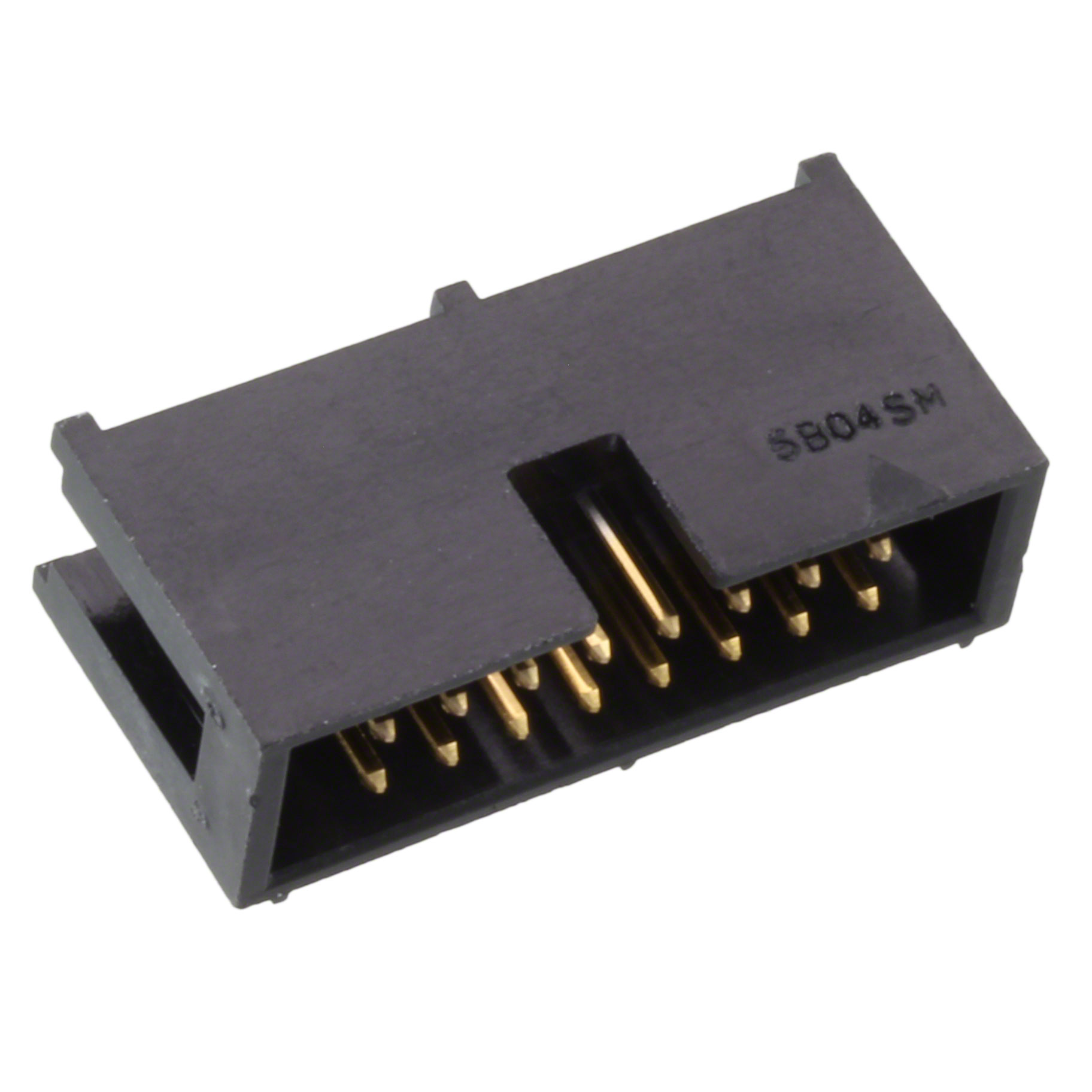

Hirose Electric Co Ltd HIF3F-16PA-2.54DS(71)	78.7 µin	2 µm	Tin	Header	16	6 mm	0.236 in	Latch Holder	Male Pin	Black	Right Angle Through Hole		8.51 mm	Square	Keying Slot	0.1 in	2.54 mm	All	8 µin	0.203 µm	Shrouded - 4 Wall			Gold	Brass	0.1 "	2.54 mm	2	Polybutylene Terephthalate (PBT)	-55 C	85 °C	Solder	UL94 V-0	0.118 in	3 mm	200 V	Board to Cable/Wire		0.335 "

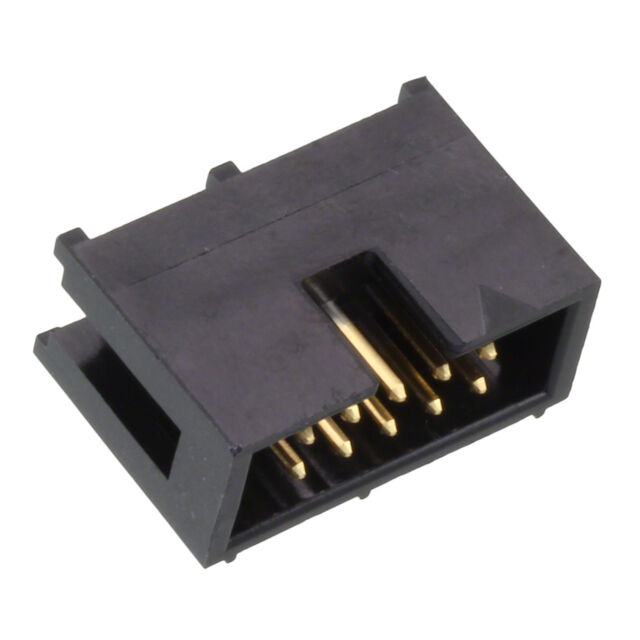

Hirose Electric Co Ltd HIF3F-10PA-2.54DS(71)	78.7 µin	2 µm	Tin	Header	10	6 mm	0.236 in	Latch Holder	Male Pin	Black	Right Angle Through Hole		8.51 mm	Square	Keying Slot	0.1 in	2.54 mm	All	8 µin	0.203 µm	Shrouded - 4 Wall			Gold	Brass	0.1 "	2.54 mm	2	Polybutylene Terephthalate (PBT)	-55 C	85 °C	Solder	UL94 V-0	0.118 in	3 mm	200 V	Board to Cable/Wire		0.335 "

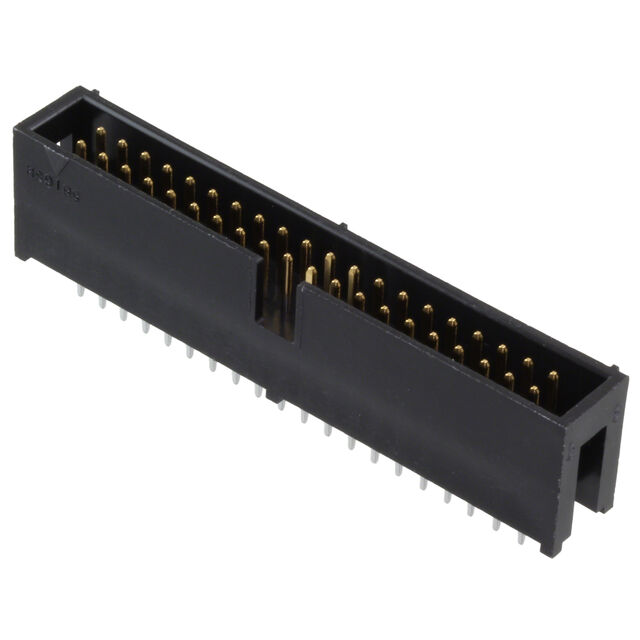

Hirose Electric Co Ltd HIF3F-40PA-2.54DSA(71)	78.7 µin	2 µm	Tin	Header	40	6 mm	0.236 in	Latch Holder	Male Pin	Black	Through Hole	13.9 mm	0.547 in	Square	Keying Slot	0.1 in	2.54 mm	All	8 µin	0.203 µm	Shrouded - 4 Wall	15.8 mm	0.622 in	Gold	Brass	0.1 "	2.54 mm	2	Polybutylene Terephthalate (PBT)	-55 C	85 °C	Solder	UL94 V-0	0.13 "	3.3 mm	200 V	Board to Cable/Wire
