SMPM Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
COAX ADAPT 1.85MM TO SMPM
| Part | Center Contact Material | Body Finish | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Convert From (Adapter End) | Convert From (Adapter End) | Frequency - Max [Max] | Center Gender | Conversion Type | Features | Fastening Type | Adapter Type | Center Contact Plating | Mounting Type | Convert To (Adapter End) | Adapter Series | Style | Impedance | Contact Material | Connector Style | Connector Type | Contact Finish | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

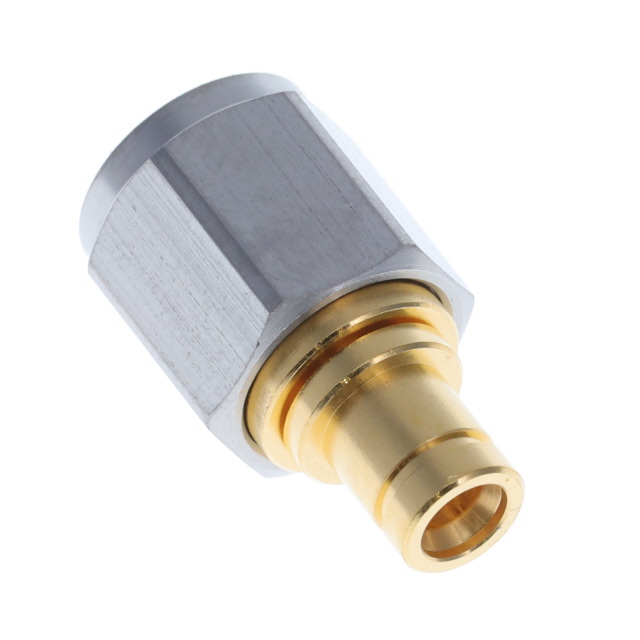

 Hirose Electric Co Ltd | Phosphor Bronze | Gold | Stainless Steel | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | 500 | Plug Male Pin | 1.85 mm | 65 GHz | Male to Male | Between Series | Smooth Bore | Snap-On Threaded | Plug to Plug | Gold | Free Hanging (In-Line) | SMPM Plug Male Pin | 1.85mm to SMPM | Straight | 50 Ohms | |||||

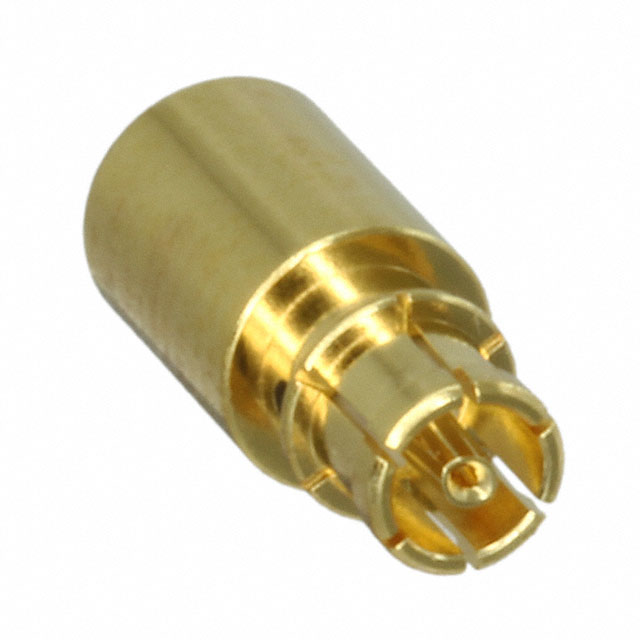

 Hirose Electric Co Ltd | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 50 GHz | Cap Free Hanging | 50 Ohms | Beryllium Copper | SMPM | Female Socket Jack | Gold | ||||||||||||||||

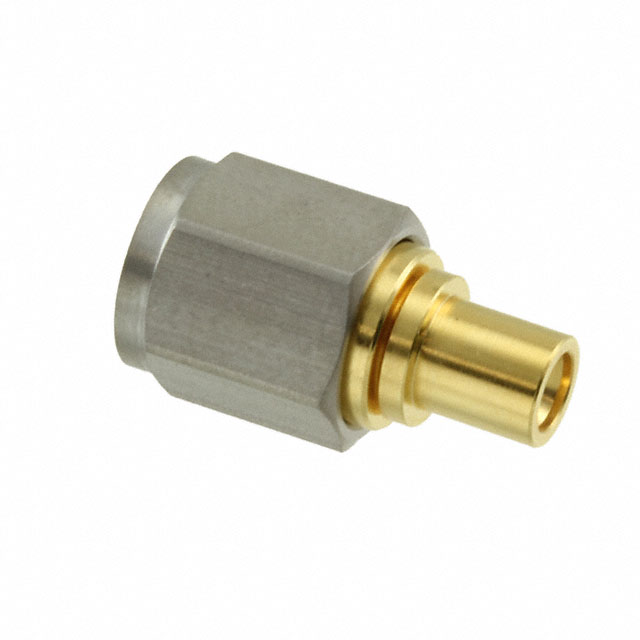

 Hirose Electric Co Ltd | Phosphor Bronze | Gold Passivated | Stainless Steel | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Plug Male Pin | 1.85 mm | 65 GHz | Male to Male | Between Series | Full Detent | Snap-On Threaded | Plug to Plug | Gold | Free Hanging (In-Line) | SMPM Plug Male Pin | 1.85mm to SMPM | Straight | 50 Ohms | ||||||

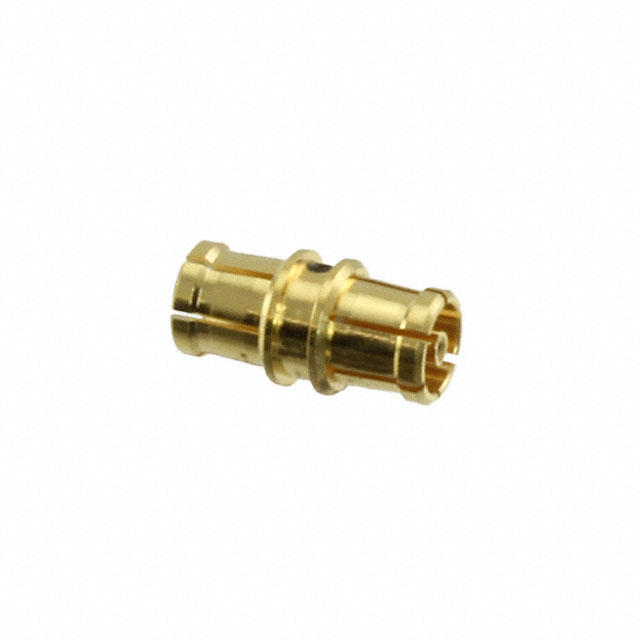

 Hirose Electric Co Ltd | Beryllium Copper | Gold | Beryllium Copper | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Female Socket SMPM Jack | 65 GHz | Female to Female | Same Series | Snap-On | Jack to Jack | Gold | Free Hanging (In-Line) | Female Socket SMPM Jack | SMPM to SMPM | Straight | 50 Ohms | Snap-On |
