BXEB-TL-L1120 Series
Manufacturer: BRIDGELUX
Beta
⌘K

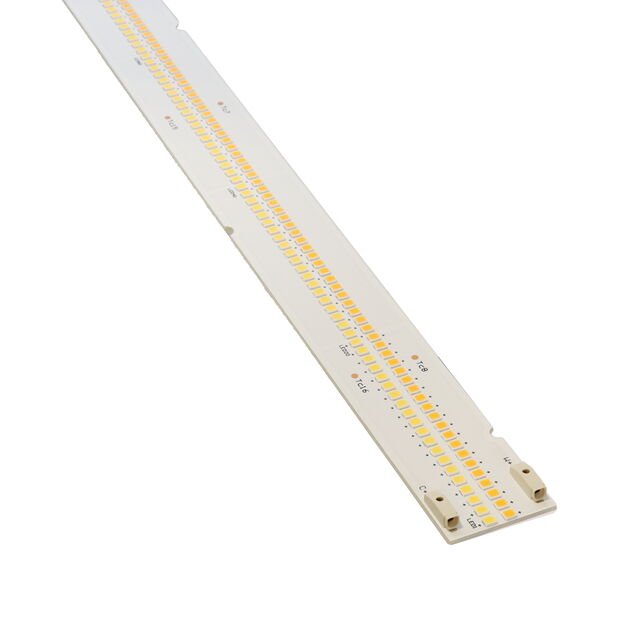

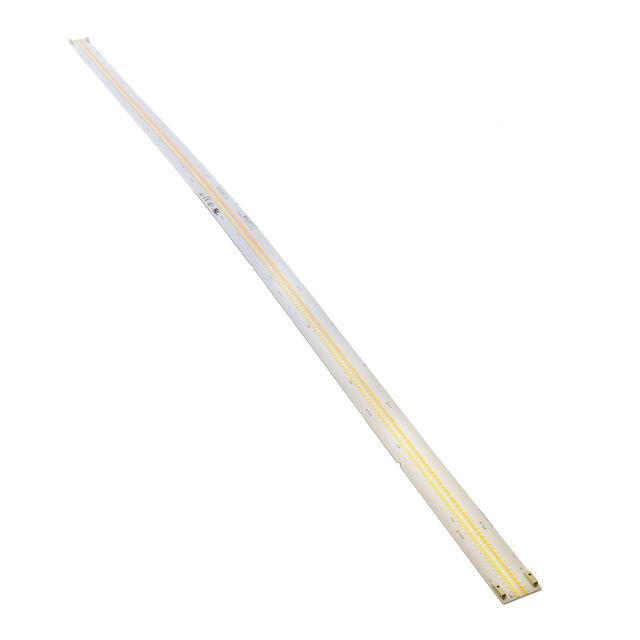

LED MOD VESTA WHT LNR STRP 5000K
| Part | Configuration | Height [z] | CCT (K) | Type | Size / Dimension [x] | Size / Dimension [y] | Current - Max [Max] | Luminous Flux @ Current/Temperature | Voltage - Forward (Vf) (Typ) | Viewing Angle | Color | Current - Test | Lens Type | Lumens/Watt @ Current - Test | Temperature - Test | CRI (Color Rendering Index) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRIDGELUX | Linear Light Strip | 5.6 mm | 2700K 3-Step MacAdam Ellipse 5000K 3-Step MacAdam Ellipse | LED Module | 1120 mm | 31 mm | 2 A | 5920 lm 6720 lm | 40.6 V | 120 ° | White Cool White Warm | 1.2 A | Flat | 122 lm/W 138 lm/W | 25 °C | 98 |
 BRIDGELUX | Linear Light Strip | 5.6 mm | 2700K 3-Step MacAdam Ellipse 5000K 3-Step MacAdam Ellipse | LED Module | 1120 mm | 24 mm | 1.5 A | 4876 lm 5447 lm | 39.4 V | 120 ° | White Cool White Warm | 750 mA | Flat | 165 lm/W 184 lm/W | 25 °C | 80 |
