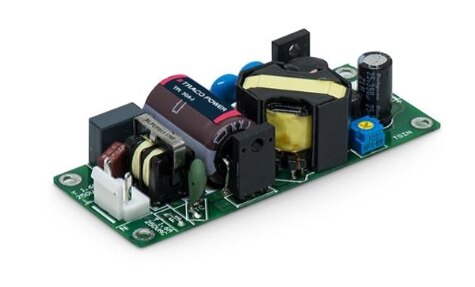

TPI 30A-J Series
Manufacturer: Traco Power
Beta
⌘K
SWITCHING POWER SUPPLIES 30W 5V 6A OPEN 3.34X1.36
| Part | Voltage - Isolation | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Current - Output 1 | Features | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Number of Outputs | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Type | Approval Agency | Mounting Type | Standard Number | Voltage - Output 1 [custom] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 3000 V | 30 Watts 40 W | -40 °C | 85 °C | 5 V | 6 A | Adjustable Output Universal Input | 85 VAC 120 VDC | 264 VAC 370 VDC | 86 % | 1 | ITE (Commercial) | 1.36 " | 3.34 " | 0.77 in | 19.6 mm | 34.5 mm | 84.8 mm | Open Frame | CB CE cURus | Chassis Mount | 62368-1 | ||
Traco Power | 3000 V | 30 Watts 40 W | -40 °C | 85 °C | 24 V | 1.25 A | Adjustable Output Universal Input | 85 VAC 120 VDC | 264 VAC 370 VDC | 88 % | 1 | ITE (Commercial) | 1.36 " | 3.34 " | 0.77 in | 19.6 mm | 34.5 mm | 84.8 mm | Open Frame | CB CE cURus | Chassis Mount | 62368-1 | ||
 Traco Power | 3000 V | 20 W | -40 °C | 85 °C | 3.3 V | 6 A | Adjustable Output Universal Input | 85 VAC 120 VDC | 264 VAC 370 VDC | 83 % | 1 | ITE (Commercial) | 1.36 " | 3.34 " | 0.77 in | 19.6 mm | 34.5 mm | 84.8 mm | Open Frame | CB CE cURus | Chassis Mount | 62368-1 | ||
Traco Power | 3000 V | 30 Watts 40 W | -40 °C | 85 °C | 12 V | 2.5 A | Adjustable Output Universal Input | 85 VAC 120 VDC | 264 VAC 370 VDC | 89 % | 1 | ITE (Commercial) | 1.36 " | 3.34 " | 0.77 in | 19.6 mm | 34.5 mm | 84.8 mm | Open Frame | CB CE cURus | Chassis Mount | 62368-1 | ||
Traco Power | 3000 V | 30 Watts 40 W | -40 °C | 85 °C | 48 V | 630 mA | Adjustable Output Universal Input | 85 VAC 120 VDC | 264 VAC 370 VDC | 91 % | 1 | ITE (Commercial) | 1.36 " | 3.34 " | 0.77 in | 19.6 mm | 34.5 mm | 84.8 mm | Open Frame | CB CE cURus | Chassis Mount | 62368-1 | ||
Traco Power | 3000 V | 31 W | -40 °C | 85 °C | 580 mA | Adjustable Output Universal Input | 85 VAC 120 VDC | 264 VAC 370 VDC | 90 % | 1 | ITE (Commercial) | 1.36 " | 3.34 " | 0.77 in | 19.6 mm | 34.5 mm | 84.8 mm | Open Frame | CB CE cURus | Chassis Mount | 62368-1 | 53 V | 40 W | |
Traco Power | 3000 V | 30 Watts 40 W | -40 °C | 85 °C | 840 mA | Adjustable Output Universal Input | 85 VAC 120 VDC | 264 VAC 370 VDC | 89 % | 1 | ITE (Commercial) | 1.36 " | 3.34 " | 0.77 in | 19.6 mm | 34.5 mm | 84.8 mm | Open Frame | CB CE cURus | Chassis Mount | 62368-1 | 36 V | ||
Traco Power | 3000 V | 30 Watts 40 W | -40 °C | 85 °C | 15 V | 2 A | Adjustable Output Universal Input | 85 VAC 120 VDC | 264 VAC 370 VDC | 89 % | 1 | ITE (Commercial) | 1.36 " | 3.34 " | 0.77 in | 19.6 mm | 34.5 mm | 84.8 mm | Open Frame | CB CE cURus | Chassis Mount | 62368-1 |
