ADP123 Series

Catalog

BOARD EVALUATION ADJUSTABLE V

Part	Voltage - Output [Max]	Voltage - Output [Min]	Current - Output	Supplied Contents	Channels per IC	Utilized IC / Part	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Type	Voltage Dropout (Max) [Max]	Output Type	PSRR	Control Features	Voltage - Input (Max) [Max]	Package / Case	Number of Regulators	Voltage - Output (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Voltage - Output (Min/Fixed)	Mounting Type	Supplier Device Package	Protection Features	Output Configuration	Current - Quiescent (Iq)

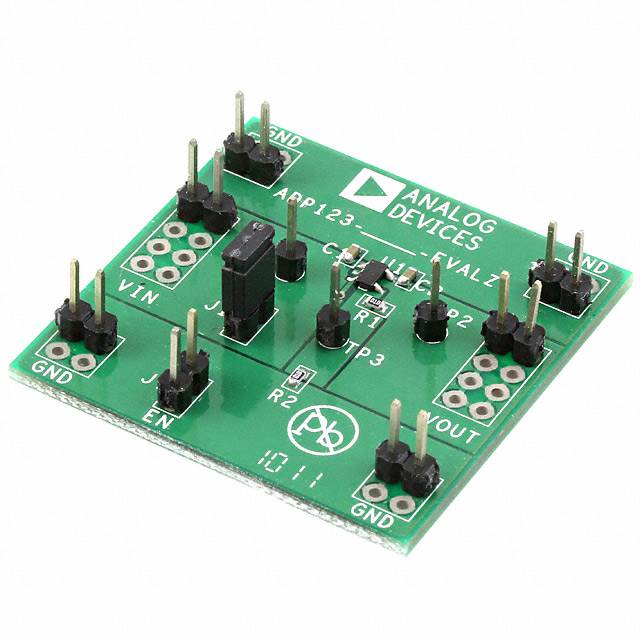

Analog Devices ADP123-EVALZ	5 V	0.8 V	350 mA	Board(s)	1 - Single	ADP123	Fully Populated	2.3 V	5.5 V	Positive Adjustable
Analog Devices ADP123ACPZ-R7			300 mA								0.15 V	Adjustable	60 dB	Enable	5.5 V	6-UDFN Exposed Pad CSP	1	5 V	125 °C	-40 °C	240 µA	0.8 V	Surface Mount	6-LFCSP-UD (2x2)	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	105 çA
