2N7002 Series
Manufacturer: MDD
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

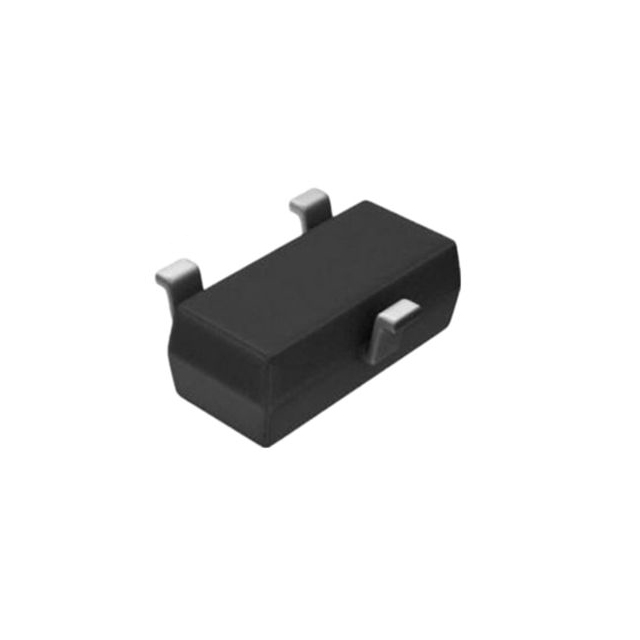

MOSFET SOT-23 N CHANNEL 60V
| Part | Input Capacitance (Ciss) (Max) | Gate Charge (Max) | FET Type | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Technology | Current - Continuous Drain (Id) (Ta) | Vgs (Max) | Drain to Source Voltage (Vdss) | Package Name | Vgs(th) (Max) | Package / Case | Rds On (Max) | Drive Voltage (Min Rds On) | Drive Voltage (Max Rds On) | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MDD | 23.8 pF | 0.31 nC | N-Channel | 150 °C | -55 °C | Surface Mount | MOSFET (Metal Oxide) | 500 mA | 20 V | 60 V | SOT-23 | 2.5 V | SC-59 SOT-23-3 TO-236-3 | 900 mOhm | 10 V | 4.5 V | 500 mW |
