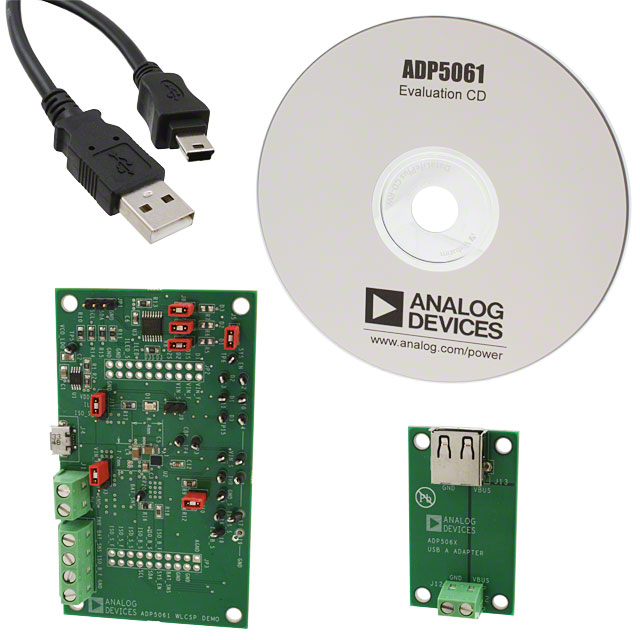

ADP5061 Series
Tiny I2C Programmable Linear Battery Charger with Power Path and USB Mode Compatibility
Manufacturer: Analog Devices
Catalog
Tiny I2C Programmable Linear Battery Charger with Power Path and USB Mode Compatibility
Key Features
• 2.6 mm x 2 mm WLCSP Package
• Fully programmable via I2C
• Flexible digital control inputs
• Up to 2.1 A current from an ac charger in LDO mode
• Operating input voltage from 4.0 V to 6.7 V
• Tolerant input voltage -0.5 V to +20 V (USB VBUS)
• Fully compatible with USB 3.0 and USB Battery Charging Specification 1.2
• Built-in current sensing and limiting
• As low as 30 mΩ battery isolation FET between battery and charger output
• Thermal regulation prevents over heating
• Compliant with JEITA 1 and JEITA 2 Li-Ion battery charging temperature specifications
• SYS_EN flag permits the system to be disabled until battery is at minimum required level for guaranteed system start-up.
Description
AI
The ADP5061 charger is fully compliant with USB 3.0 and the USB Battery Charging Specification 1.2 and enables charging via the mini USB VBUS pin from a wall charger, car charger, or USB host port.The ADP5061 operates from a 4 V to 6.7 V input voltage range but is tolerant of voltages up to 20 V. The 20 V voltage tolerance alleviates the concerns about the USB bus spiking during disconnect or connect scenarios.The ADP5061 features an internal FET between the linear charger output and the battery. This permits battery isolation and, hence, system powering under a dead battery or no battery scenario, which allows for immediate system function on connection to a USB power supply.Based on the type of USB source, which is detected by an external USB detection chip, the ADP5061 can be set to apply the correct current limit for optimal charging and USB compliance.The ADP5061 has three factory programmable digital input/output pins that provide maximum flexibility for different systems. These digital input/output pins permit combinations of features such as, input current limits, charging enable and disable, charging current limits, and a dedicated interrupt output pin.APPLICATIONSDigital still camerasDigital video camerasSingle cell Li-Ion portable equipmentPDAs, audio, GPS devicesPortable medical devicesMobile phones
