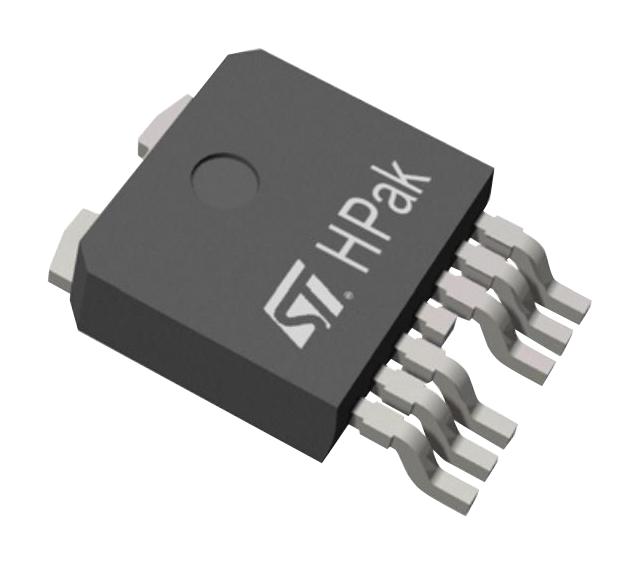

VN5T016AH-E Series

Single Channel High Side Driver with Analog Current Sense for 24V Automotive Applications

Catalog

Single Channel High Side Driver with Analog Current Sense for 24V Automotive Applications

Part	Fault Protection	Voltage - Load [Max]	Voltage - Load [Min]	Interface	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Ratio - Input:Output	Supplier Device Package	Package / Case	Input Type	Number of Outputs	Output Configuration	Switch Type	Voltage - Supply (Vcc/Vdd)	Rds On (Typ)	Current - Output (Max) [Max]
STMicroelectronics VN5T016AHTR-E	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	36 V	8 V	On/Off	Surface Mount	-40 °C	150 °C	N-Channel	1:1	HPAK	TO-252-7 DPAK (6 Leads + Tab)	Non-Inverting	1	High Side	General Purpose	Not Required	16 mOhm	43 A

Catalog

Single Channel High Side Driver with Analog Current Sense for 24V Automotive Applications

Description

The VN5T016AH-E is a device made using STMicroelectronics VIPower technology, intended for driving resistive or inductive loads with one side connected to ground. Active VCCpin voltage clamp protects the device against low energy spikes. The device integrates an analog current sense, which delivers a current proportional to the load current. Fault conditions such as overload, overtemperature, or short to VCCare reported via the current sense pin. Output current limitation protects the device in overload conditions. The device latches off in case of overload or thermal shutdown. The device is reset by a low level pass on the fault reset standby pin. A permanent low level on the inputs and on the fault reset standby pin disables all outputs and sets the device in standby mode.
