TEL 10 Series

Catalog

DC DC CONVERTER 5.1V 10W

Part	Voltage - Isolation	Voltage - Input (Max) [Max]	Type	Voltage - Output 1	Current - Output (Max) [Max]	Features	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Number of Outputs	Voltage - Input (Min) [Min]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Efficiency	Voltage - Output 2	Current - Output (Max) [Max]
Traco Power TEL 10-1211	1800 V	18 V	Isolated Module	5.1 V	2 A	OCP SCP	10 W	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	Through Hole	1	9 V	ITE (Commercial)	78 °C	-40 C	16-DIP Module 6 Leads
Traco Power TEL 10-4810WI	1.5 kV	75 V	Isolated Module	3.3 V	2.7 A	SCP	8.9 W	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	Through Hole	1	18 V	ITE (Commercial)	80 ¯C	-40 °C	16-DIP Module 6 Leads	80 %
Traco Power TEL 10-2412	1800 V	36 V	Isolated Module	12 V	833 mA	OCP SCP	10 W	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	Through Hole	1	18 V	ITE (Commercial)	85 °C	-40 C	16-DIP Module 6 Leads	87 %

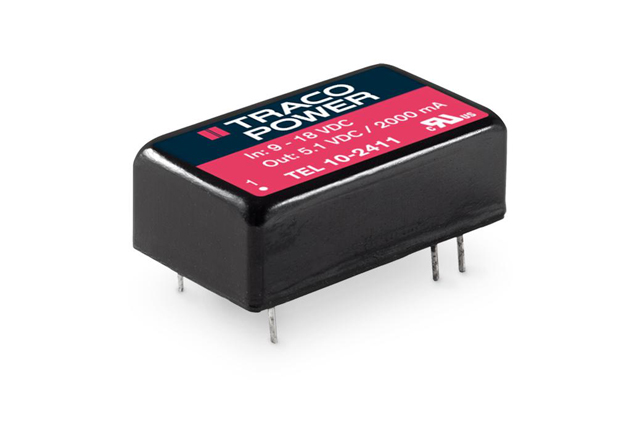

Traco Power TEL 10-4812	1800 V	75 V	Isolated Module	12 V	833 mA	OCP SCP	10 W	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	Through Hole	1	36 V	ITE (Commercial)	85 °C	-40 C	16-DIP Module 6 Leads	87 %
Traco Power TEL 10-2422	1800 V	36 V	Isolated Module	12 V	416 mA	OCP SCP	10 W	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	Through Hole	2	18 V	ITE (Commercial)	85 °C	-40 C	16-DIP Module 6 Leads	87 %	-12 V	416 mA
Traco Power TEL 10-1212	1800 V	18 V	Isolated Module	12 V	833 mA	OCP SCP	10 W	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	Through Hole	1	9 V	ITE (Commercial)	85 °C	-40 C	16-DIP Module 6 Leads	86 %
Traco Power TEL 10-4812WI	1.5 kV	75 V	Isolated Module	12 V	833 mA	SCP	10 W	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	Through Hole	1	18 V	ITE (Commercial)	88 °C	-40 °C	16-DIP Module 6 Leads	87 %
Traco Power TEL 10-2415	1800 V	36 V	Isolated Module	24 V	416 mA	OCP SCP	10 W	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	Through Hole	1	18 V	ITE (Commercial)	85 °C	-40 C	16-DIP Module 6 Leads	88 %
Traco Power TEL 10-4810	1800 V	75 V	Isolated Module	3.3 V	2.7 A	OCP SCP	8.9 W	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	Through Hole	1	36 V	ITE (Commercial)	78 °C	-40 C	16-DIP Module 6 Leads	80 %
Traco Power TEL 10-4815	1800 V	75 V	Isolated Module	24 V	416 mA	OCP SCP	10 W	0.31 "	0.94 in	0.54 in	13.7 mm	23.8 mm	8 mm	Through Hole	1	36 V	ITE (Commercial)	85 °C	-40 C	16-DIP Module 6 Leads	88 %
