TPP 65 Series

Catalog

SWITCHING POWER SUPPLIES 65W 12V 5.42A, 5V 8A, -12V 0.6A

Part	Efficiency	Approval Agency	Type	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Output 3	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output 2	Applications	Voltage - Isolation	Voltage - Output 2	Number of Outputs	Power (Watts)	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 3	Features	Standard Number
Traco Power TPP 65-321M2	89 %	CB CE cURus	Enclosed	5.42 A	-40 °C	85 °C	Chassis Mount	600 mA	60.5 mm	1.36 in	102.4 mm	4.03 in	34.5 mm	2.38 in	8 A	Medical	4000 V	5 V	3	112 W	12 V	85 VAC 120 VDC	264 VAC 370 VDC	-12 V	Universal Input

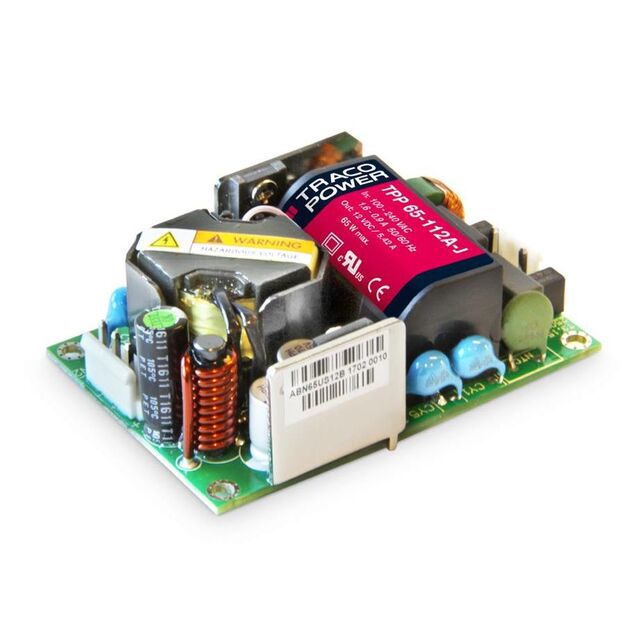

Traco Power TPP 65-112A	93 %	CB CE cURus	Enclosed	5.42 A	-40 °C	85 °C	Chassis Mount		60.5 mm	1.31 "	89.7 mm	3.53 "	33.3 mm	2.38 in		Medical	4000 V		1		12 V	85 VAC 120 VDC	264 VAC 370 VDC		Adjustable Output Universal Input	60601-1

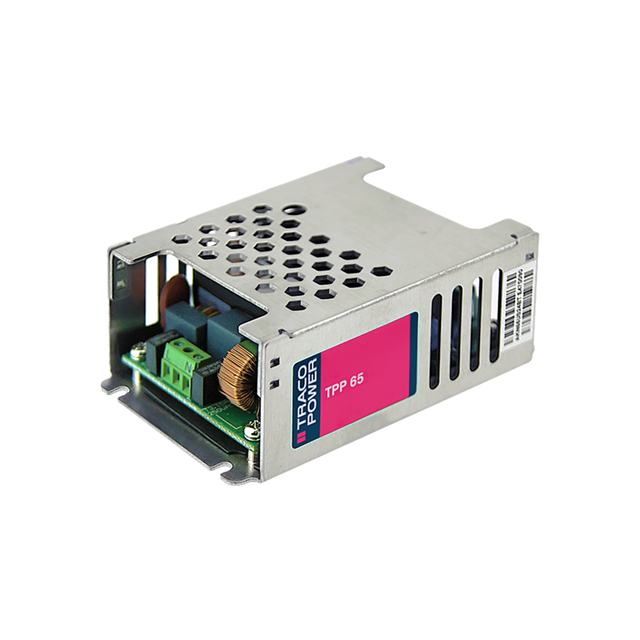

Traco Power TPP 65-112	92.5 %	CB CE cURus	Enclosed	5.42 A	-40 °C	85 °C	Chassis Mount		60.5 mm	1.31 "	89.7 mm	3.53 "	33.3 mm	2.38 in		Medical	4000 V		1		12 V	85 VAC 120 VDC	264 VAC 370 VDC		Universal Input
Traco Power TPP 65-221	90 %	CB CE cURus	Enclosed	5.42 A	-40 °C	85 °C	Chassis Mount		60.5 mm	1.36 in	102.4 mm	4.03 in	34.5 mm	2.38 in	8 A	Medical	4000 V	5 V	2	105 W	12 V	85 VAC 120 VDC	264 VAC 370 VDC		Universal Input
Traco Power TPP 65-124A	94 %	CB CE cURus	Enclosed	2.71 A	-40 °C	85 °C	Chassis Mount		60.5 mm	1.31 "	89.7 mm	3.53 "	33.3 mm	2.38 in		Medical	4000 V		1		24 V	85 VAC 120 VDC	264 VAC 370 VDC		Adjustable Output Universal Input	60601-1

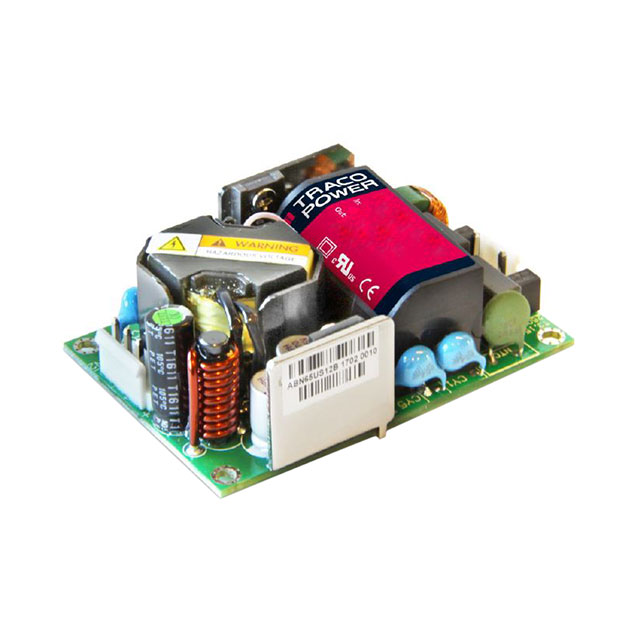

Traco Power TPP 65-105A-J	90 %	CB CE cURus	Open Frame	10 A	-40 °C	85 °C	Chassis Mount		50.8 mm	0.94 "	76.2 mm	3 "	23.9 mm	2 in		Medical	4000 V		1	50 W	5 V	85 VAC 120 VDC	264 VAC 370 VDC		Universal Input
